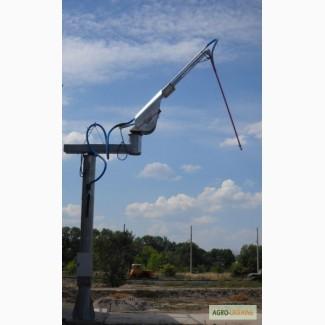

Sampler ERON-4000 Gyroscope, Dnipropetrovsk region.

HERON 4000 Gyroscope (HERON 4000 GYROSCOPIQUE) - automaticgrain sampler cultures.

The sharp ego of the probe is lowered into the subject to be analyzedgrain, sucks a certain amount of ego and sends this sample through the pneumatic pipe to the laboratory.

Thanks to three independent axes of rotation of the probe, sampling is possible from almost any point of the vehicle. Sampling is possible both in automatic mode for 4 types of motor vehicle bodies with programmable sampling from 1 to 10 samples, and in manual mode.

The ERON 4000 gyroscopic model exists in three versions, differing in the maximum sampling radius:

1.R = 3.30 meters;
2.R = 4.10 meters;
3.R = 5.00 meters.
(//tractor-service.com)
One of the main features of the sampler is the patented system of "touching the bottom of the body". This allows you to take a sample from the body of the motor vehicle along its entire height, since the probe rises up only after it touches the bottom of the body.

The volume of the selected sample is programmed by setting the control cabinet.

The return to the initial position parallel to the traffic lane after the end of the sampling cycle occurs automatically according to the factory settings. The initial position can also be reprogrammed.

The sampler can work in winter at low temperatures (up to -40C).

Manufacturer: TPLG

Country of manufacture: France

Состояние: новое
