Impeller pump — How to add the heated fatty part of the product automatically during industrial production? When making bakery products, it is necessary to add fatty ingredients to the dough, such as margarine, butter or other fatty products, but the crystallization of soft fats occurs at room temperature. The question arises, which pump will cope with this work? There is no breakdown, there are such pumps as rotary, plunger, screw, but their cost is high because they are structurally difficult to manufacture.
Our attention can be drawn to a budget pump — Impeller pump.

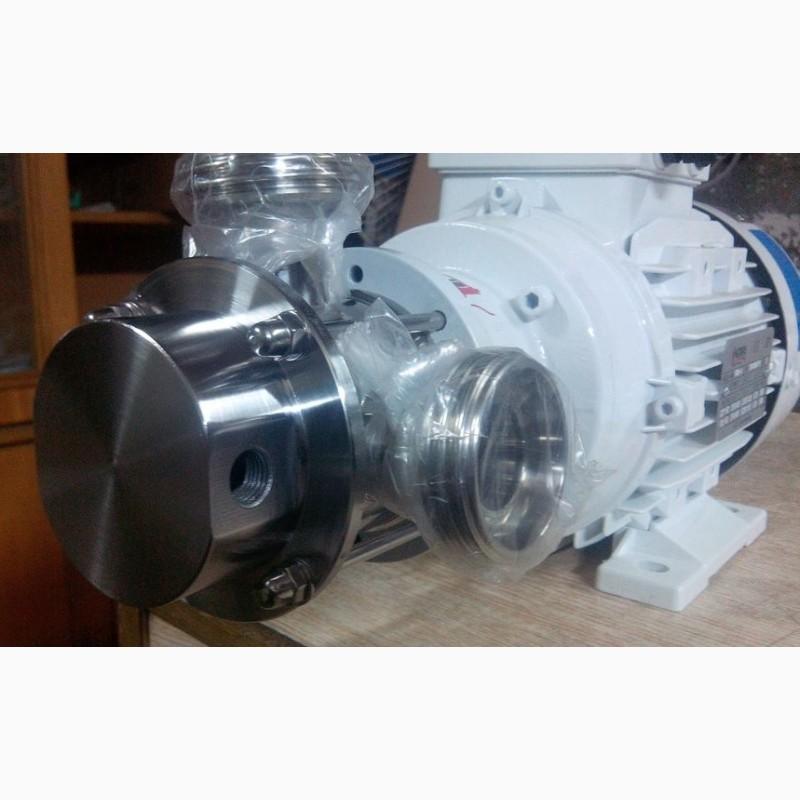

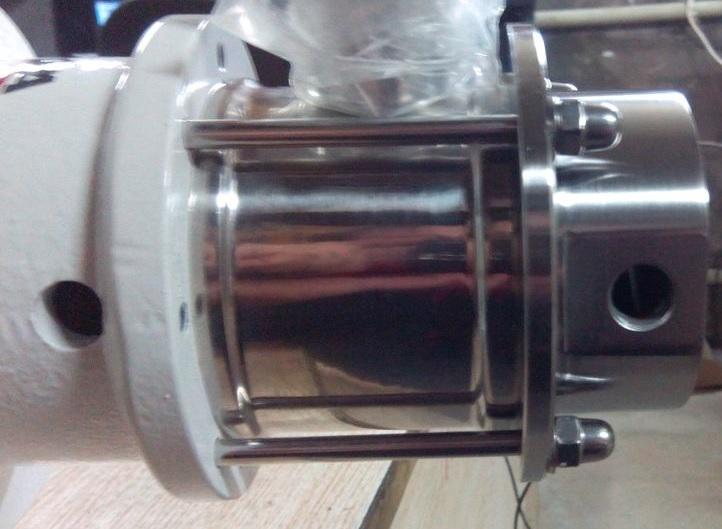

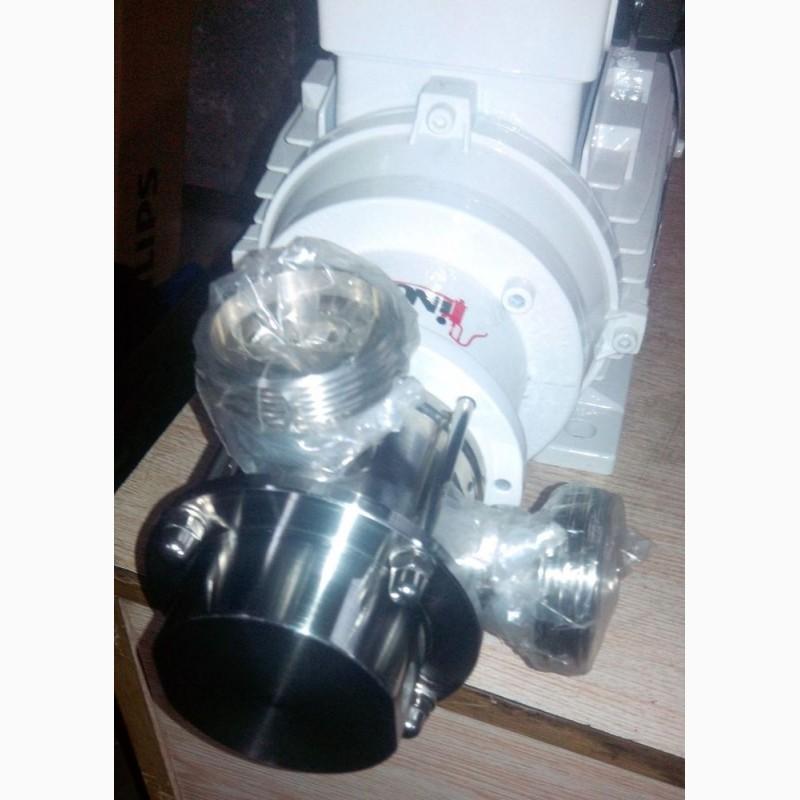

The heated impeller pump was developed and tested many times at installations and as an independent unit of equipment.

Principle of operation

Due to the asymmetric section of the casingpump, the volume between the flexible wings of the impeller increases in the suction zone, a vacuum is created, and the liquid enters the pump casing. The rotating workingwheel moves the product from the suction to the discharge nozzle. Due to the asymmetric shape of the body, the impeller wings bend at the discharge opening, the volume between them decreases, thereby displacing the product.(//tractor-service.com)

Design and characteristics

Monobloc or open shaft design. Reversible and self-absorbing. The case is made by microcasting. Keyless connection of the impeller and the shaft. Connections DIN 11851. External single face seal. Electric motor according to IEC: B34, 1500 rpm, 3 ph, 230-400V, 50 Hz, IP55. Painted in white or blue. Easy to maintain

Materials

Parts in contact with the environment AISI 316L. Housing and bearing support GG 22. Other parts AISI 304. Impeller - Neoprene. NBR seals. Face seal Cer/C/NBR. Polished surface treatment, Ra ≤ 0.8 μm
