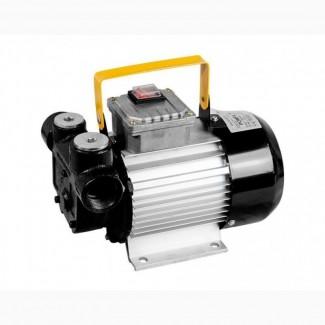

Fuel pump 220V 60l/min RO-2 Omnigena (Poland), Kyiv

MODEL: PO-2
MANUFACTURER: OMNIGENA (Poland)
POWER SUPPLY: 220 Volts
PRODUCTIVITY: 60 l/min
POWER: 380 W
SELF SUCTIONPUMP: yes
BYPASS VALVE IN THE PUMP: yes, the bypass valve is built into thepump body
TYPE OF FUEL: diesel
PUMP TYPE: vane type
SUCTION HEIGHT: 5m
TIME OF CONTINUOUS WORK: no time limit
POWER CORD LENGTH: 2m
INLET-OUTLET, INCHES: 1″ (25mm), 1 (25mm)
NOISE LEVEL: 75dB
PROTECTION CLASS, IP: 55
MAXIMUM THRUST: 10m
WORKING TEMPERATURES: from -20 to +50
MAXIMUM CURRENT: 2.5 A
WEIGHT: 9 kg(//tractor-service.com)
WARRANTY: 12 months
Cast iron pump body, resistant to corrosion and covered with paint.
The pump has a steel rotor and blades made of a special material.
The bypass valve is built into the pump housing.
Built-in 100 micron filter, easily accessible to clean.
Asynchronous motor with aluminum coating.
Threaded connections on the pump body.
The OMNIGENA OP2 pump is the result of a thorough analysis of the requirements related to the transmission and distribution of diesel fuel.
Compact, safe and reliable, it can be used to equip permanent fuel transfer installations.
This self-priming rotary vane pump has excellent mechanical isolation, which guarantees constant reliability, even at low temperatures.
After connecting the pump to the electrical network, start the pump using the switch located on the motor housing.
The initial start-upof the pump should be carried out with the discharge pipeline open to ensure the exit of air bubbles from the pump and the suction pipeline.
If the pump will not be used for a long time after the end of work, it must be completely emptied.
After a long period of idleness of the pump, before starting the ego, it is necessary to make sure that the impeller is not blocked. To do this, it is necessary to turn the motor shaft, turning the cooling fan with a screwdriver. This operation must be performed with caution and with the pump disconnected from the electrical network.
There is a mesh filter under the pump filler plug, which must be cleaned if necessary.
The pump shaft and internal pump cavities are made of stainless steel.
Surface rotary single-stage self-priming pump with horizontal rotor placement.
COMPLETE COMPONENTS: pump, power cord length - 2 m, a 100 micron filter built into the pump body, accessible for cleaning.

NOTE: counter, dispensing gun, filter, sleeves - purchased separately.
