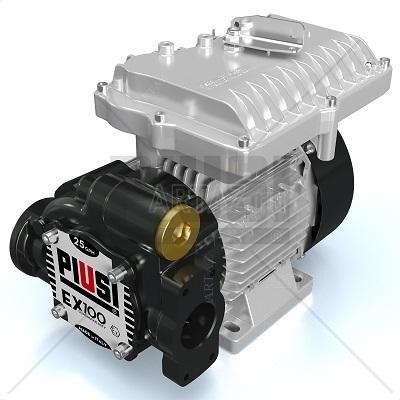

Pump for pumping gasoline, kerosene, diesel fuel 230V 100l/min EX100 AC ATEX F00390010, Kyiv

Technical characteristics

Article F00390010
Speed (l/min) 100
Voltage (V) 220
Working Wednesday: Gasoline
Manufacturer: Piusi

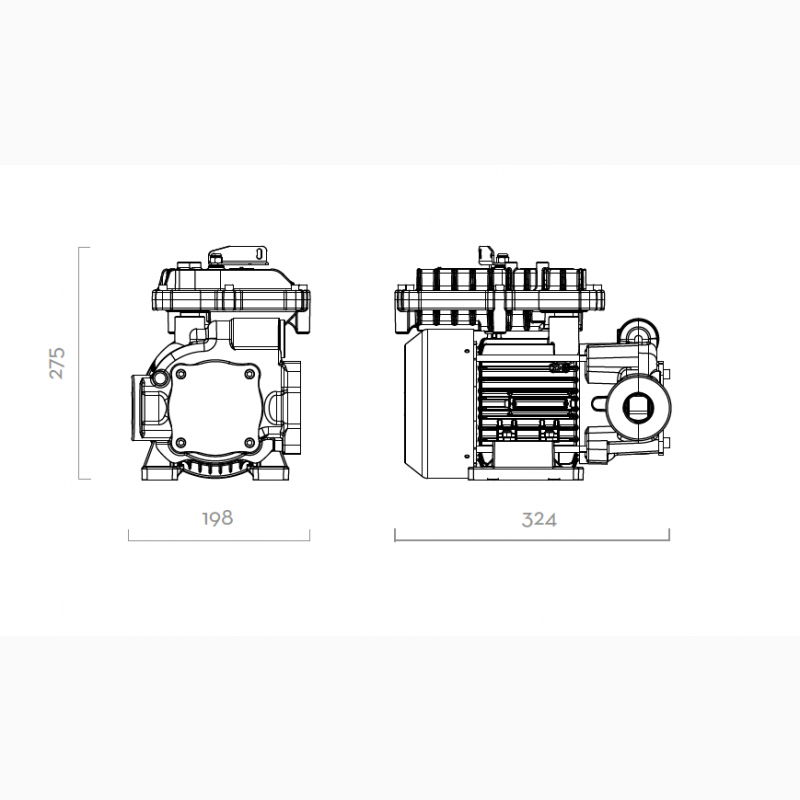

Dimensions (mm) 240X400X350
Weight (kg) 25
Drive: electric
Supply pressure (atm) 1.6
Thread I/O (inches) 1 1/4″ – 1″
Country of manufacture Italy
The body of the pump part is made of strong cast iron, the rotor blades are made of polyacetal, it is resistant to wear when in contact with metals. The design of the solution and the materials used can work with vapors of fire-hazardous substances and do not react. The design of the electric motor is separated from the pump chamber, the penetration of fuel into the engine is excluded, even in case of violation of use or PP, the cuffs will not corrode and not be crushed. Steel shaft, non-sparkling.

The chamber itself is cast iron, treated with a special polymer. The electric motor housing is sealed againstdust and moisture, has wide radiator fins for heat removal during cooling by the impeller. The engine control unit is placed in a vapor-tight housing, the switch is made with a special breaker lever to avoid sparks that appear from a conventional switch. It is installed directly in the network, after which it is isolated. Because constantly inserting the plug near gasoline vapors can cause an explosion.

The presence of a built-in bypass (by-pass) valve, which allows the pump to continue to work when the flow is blocked or the gun is clicked. The pump is supplied without a cable. An anti-noise filter is installed on the pump.

Steel frame Piusi EX100 F00390010 allows you to install sideways, vertically and horizontally. Connects through flanges or threads: inlet 1 1/4, outlet - 1 inch.

The EX series pump is manufactured in accordance with the requirements of ATEX certification for explosion protection. Degree of protection Ex dII T4 Gb

PUMP EX 100 220V PIUSI self-priming, sliding (vane), explosion-proof for pumping gasoline, kerosene (including aviation), diesel fuel from containers. This is a NEW EX LINE PUMP, suitable for pumping gasoline and diesel fuel with high performance and long-term operation. It is EASY TO USE, COMPACT, UNIVERSAL and adapts to any working conditions. Complies with current explosion prevention principles inside or outside thepump due to possible components that could cause ingress of liquid or the surrounding atmosphere.(//tractor-service.com)

Meets all the strict requirements of the ATEX/IECEx directives relating to the use of equipment in potentially explosive areas. Does not require preliminary filling of the case. Pump Ex 100 220V, used for refueling with gasoline, diesel fuel - yachts, boats, gasoline and diesel generators, cars, excavators, tractors and other equipment on construction sites and other remote places.Pumps can be fixed on containers or portable.

TECHNICAL CHARACTERISTICS AND PACKAGE: 180
Міцна і компактна конструкція, чавунний корпус;
Highly efficient self-ventilating, single-phase motor with a voltage of 220 V;
Built-in by-pass valve, thermal protection;
Engine power – 1kW (1000W);
The number of revolutions is 1450 rpm;

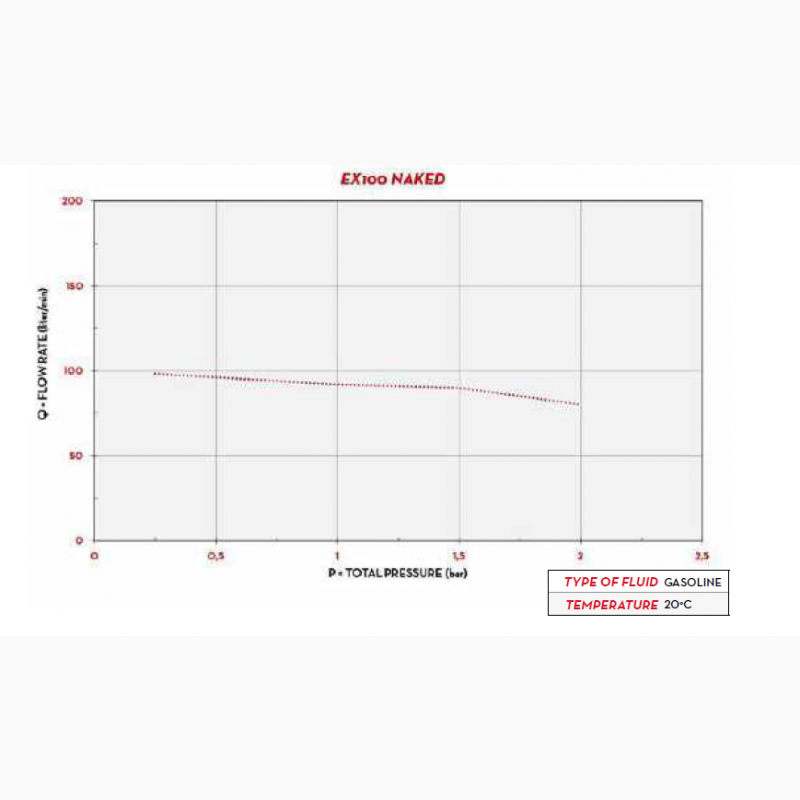

The flow rate is 100 l/min.;
Pressure - max 1.1 bar;
Suction height - 2 m (up to 4 meters if there is a non-return valve and a sleeve diameter of 1" (25 mm));
Inlet/outlet connection – 1¼” (32mm) / 1″ (25mm) thread and flange;
Operating temperature range – 20°С/+60°С; 190
Габарити – 400х350х240мм;
Weight - 25 kg;
Warranty - 12 months.

Together with the other PIUSI models EX80 and 140, the EX100 pump provides high and particularly constant flow rates even when used in complex systems. The whole range is characterized by a high flow rate that operates in a continuous duty cycle (except for the EX80).

There are two models with the same performance, differing in power and maximum current, as well as the number of rotor revolutions

F00390010 - 1035 Watts, 4.5 Amps, 1450 RPM

F00390020 - 874 W., 3.8 Amps, 1750 rpm
