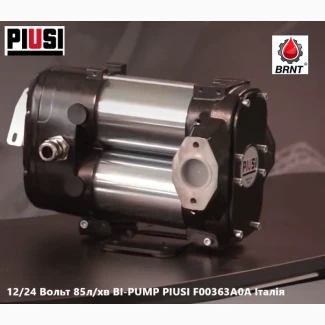

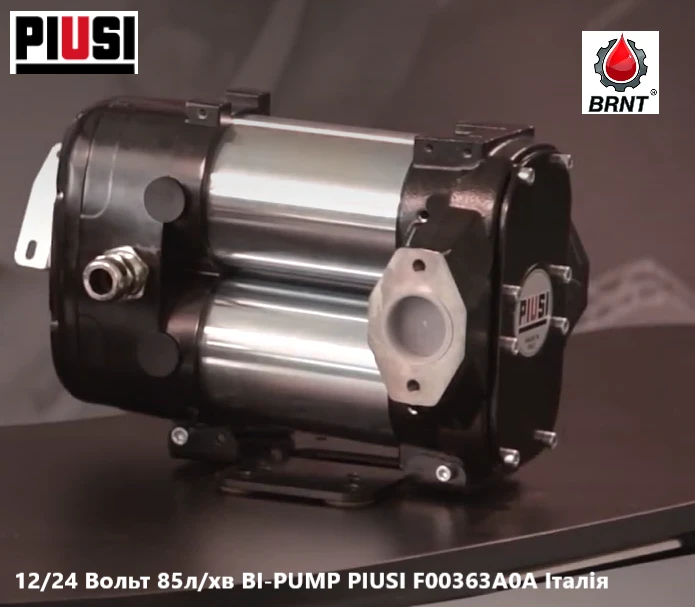

12 Volt 85l/min two-motor powerful BI-PUMP PIUSI diesel pump F00363A0A, Volyn region.

Model: BI-PUMP
Manufacturer: PIUSI (Italy)
Power supply: 12 Volts
Productivity: 85 l/min.
Power: 500 W
Self-priming pump: yes
Bypass valve in the pump: yes, a built-in By-Pass valve that “bypasses” the fuel when the pump is on and the dispensing valve is closed.
Type of fuel: diesel
Typepump: vane
Height of "dry" suction: 5m
Time of continuous operation: 30 min.
The length of the power cord: without cord, purchased separately
Inlet-outlet, inch: 1″ (25mm)
Head: 10m
Noise level: 75 dB
Switch: Yes, built-in On/Off switch
Revolutions per minute: 2000(//tractor-service.com)
Protection class, IP: 55
Current strength: 42 A
Working temperatures: – 20 to +60
Weight: 10 kg
Dimensions, mm: 345*175*255
WARRANTY: 12 months
Diesel transfer pump 12/24 V, Bipump has a built-in ON/OFF switch. and flanged connections 1 in. The maximum suction height is 2 m without non-return valve and 4 m with non-return valve, with a maximum hose length of 6 m. Power consumption is 500 W at 42 A (12 V) or 21 A (24 V), with a duty cycle of 30 minutes.

Rotary volumetric vane pump for pumping diesel fuel, characterized by increased productivity.

High-performance rotary pump with vanes for pumping diesel fuel.

Complete set: pump, without electric cord with toothed clamps ("crocodile"), in the housingpump built-in rough cleaning filter, available for cleaning.

Note: electric cord with toothed clips ("crocodile"), counter, dispensing gun, filter, sleeves - purchased separately.

Catalog number: F00363А0А
