Concrete plant SUMAB TE-60 m3/h (ECONOMY CLASS), Stationary, Sweden, Kyiv

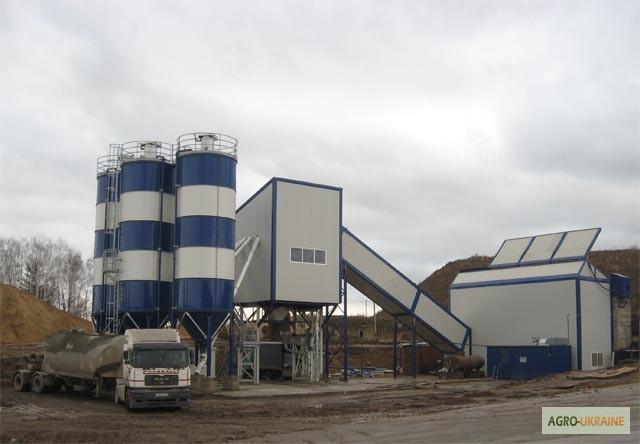

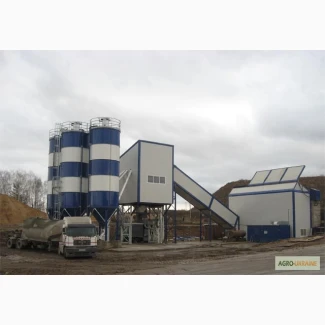

Stationary concrete plant SUMAB TE-60 m3/h (economy class) of the Swedish company "Scandinavian & UK Machines AV".

The main advantages of the Sumab TE-60 stationary concrete batching plant:

1. Concrete plants have established themselves as reliable and high-quality equipment for the production of any type of concrete and concrete mixtures, ensuring the high quality of the concrete produced.

2. Compact transportation of the plant saves the client's money

3. Installation of a concrete plant is possible on any site.

4. Special painting is a guarantee of the durability of the plant.

5. The concrete plant is capable of producing more than 100 grades of concrete with a recipe change for each subsequent batch.

6. Automatic factory control, computer SIEMENS (GERMANY)

TECHNICAL CHARACTERISTICS AND EQUIPMENT OF THE SUMAB TE-60 CONCRETE PLANT :

Precast concrete plant, economy class, productivity 45-60 m3 / h.
The structure is made of stainless galvanized steel.

The Swedish Concrete Plant, which is ideal for construction companies and (or) building material production companies that want to get not only high plant productivity, but, above all, a high quality level of concrete produced.

3 warehouses of inert materials in a series of 20 m3 each with automatically opening shutters. Open valve pneumatic.

A planetary mixer of 1500 / 1000 liters with a skip feed is installed on a platform with 4 metal supports. Automatic water cleaning system of the mixer after mixing. The inert supply conveyor is located under the bunkers. The length is 11 meters and the width is 800 mm. Dosing of inert sensors by Siemens. Sensor load 3000 kg. The inert feed rate is not less than 120 m3 per hour.
Option - 2-shaft mixer.

The automatic control system of the SIEMENS factory.
More than 100 concrete recipes.
Controlling the work of the plant from the container office, where a control stand and a computer including a printer are installed.

Skip system.
Inert materials will be supplied from storage warehouses to Skip 1500 liters.

Planetary mixer SICOMA 1500/1000 liters.

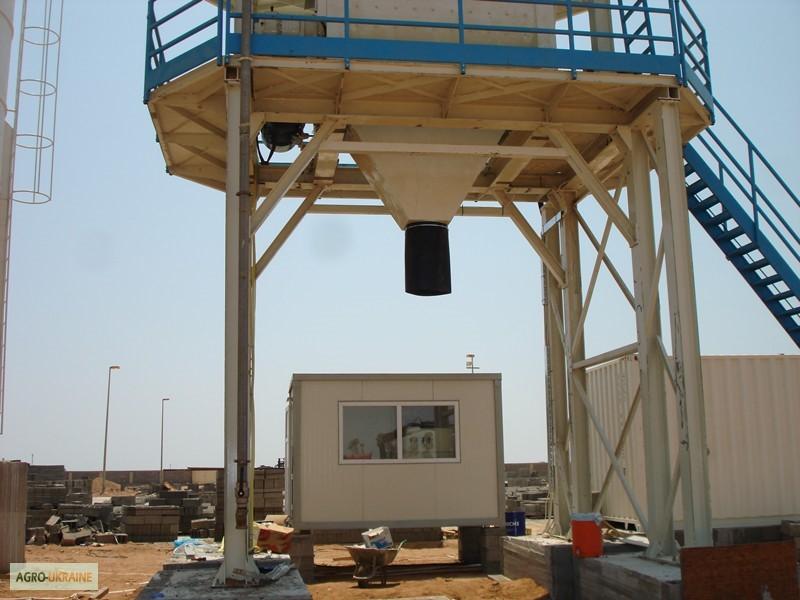

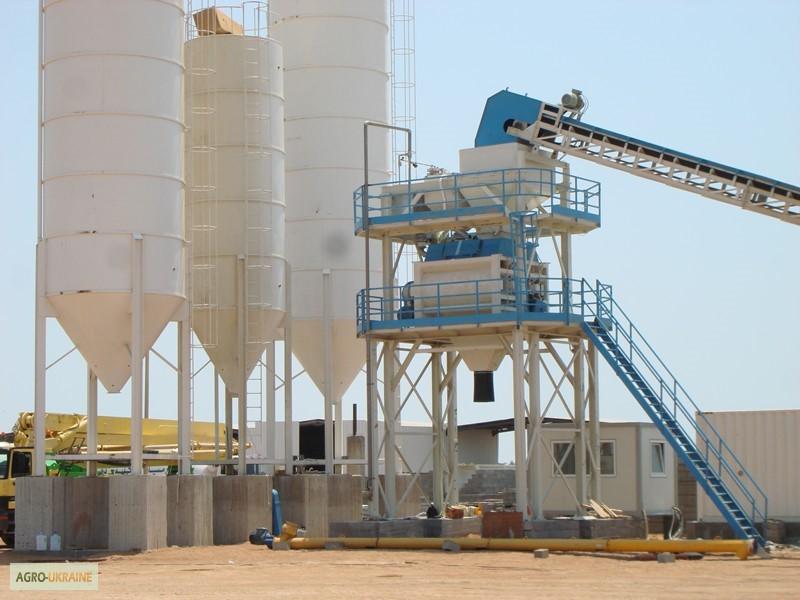

The set of equipment for mixing concrete includes a planetary mixer and a skip, which are located on a special supporting platform. The mixer is installed on a frame made of metal profiles, with a supporting platform on which a safety fence and stairs are installed for access to the mixer.

The mixer with planetary transmission is set in motion with the help of a reducer, which is adapted to work in heavy production conditions.

The mixing system is made in the form of a star with three rotating vanes (blades) and one external scraper. The paddles (blades) of the mixer are made, and the mixer itself has a coating of anti-wear material. It is also possible to make blades from anti-wear rubber.(//tractor-service.com)

Water supply to the mixer is carried out through the external parts of the mixer with the help of insert nozzles. To check the mixer, doors made of special rubber are placed on it. Manual hydraulic pump allows you to open doors in case of power failure.

The necessary proportions of inert materials enter the mixer with the help of a skip, which loads them from the dosing device, and then, with the help of a motor with a gearbox, the skip is raised along a metal cable to the mixer. Mechanical and electromechanical safety devices will prevent the skip from falling down if the cable breaks.

The system of arrangement of the blades allows covering all parts of the mixer, thereby ensuring high quality concrete that meets international standards. At the client's request, a hydraulic system for concrete sampling during mixing can be installed. The mixer has two drives with 3 blades each.

At the request of the client, a planetary mixer or a two-shaft horizontal mixer can be supplied.

Cement collection capacity.
A cement container of 500 kg is placed above the mixer.

Water supply.
A galvanized water system of 350 liters is installed at the concrete plant. Water is used from the central city system with a pressure of 5 liters per second. At the request of the client, a water purification and recycling system can be installed.

Stationary computer Siemens.
PC allows automated control of all concrete preparation processes.

Produce more than 1000 concrete recipes. Stationary PC Windows is installed at the request of the Client. It has multiple protection systems. At the client's request, video surveillance systems can also be installed for a separate fee. Surveillance cameras showing everything on a computer monitor.

Thanks to the use of European technologies, our equipment has a high level of durability and reliability.
Delivery of the equipment is carried out exactly on time.
More than 20 years of reliable partnership.
Sumab equipment works in European countries, Ukraine, CIS countries, Kazakhstan, South America, Arab countries and Africa.

Over the period of the company's activity, more than 500 concrete plants and plants for the production of paving slabs, curbs and reinforced concrete with various capacities and components were delivered.

To receive a commercial offer, please send an application to our email address.

Stationary concrete mixing plant Sumab TE-60 is:

- High-quality and modern equipment, made according to time-tested European technologies!

- Development and modification taking into account the latest concrete production technologies.

- Quick payback of equipment and subsequent profit.

- Ease of maintenance and cleaning of the concrete plant.

- All fast-wearing parts are made of durable materials and can be replaced separately if necessary, which significantly reduces production costs.

- Reliability, tested by time!
