Mobile concrete plant SUMAB V-22 (50 m3/h) Sweden, Kyiv

Mobile concrete plant SUMAB B-2200 (50 m3/h) Sweden

TECHNICAL CHARACTERISTICS AND EQUIPMENT OF THE CONCRETE PLANT

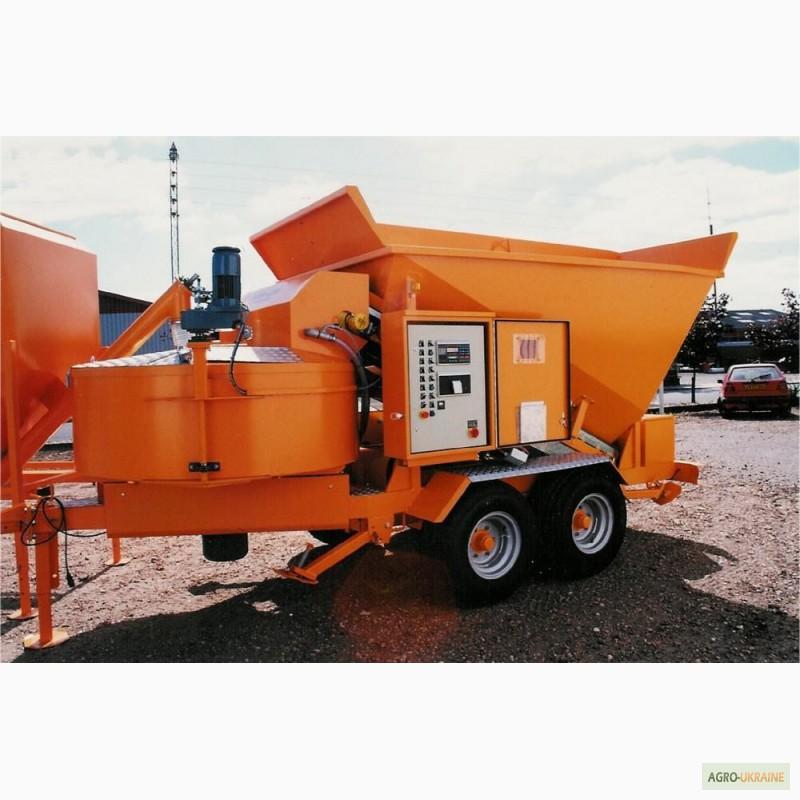

The Sumab B 2200 mobile concrete plant is intended for the production of high-quality concrete and concrete mixtures, in the volume of 30-50 m3 per hour. The exact performance indicators of the plant depend on the type and brand of concrete produced, as well as on the inert materials used in the production of concrete, cement and the amount of chemical additives.

The mobile concrete plant is equipped with a convenient control cabin and an automatic plant control system. The modern computer system Icon allows to produce 25 recipes and types of concrete. It is possible to print out each mixture of the finished mixture in kilograms and percentages of inert materials or cement during the preparation of the concrete mixture.

The basic equipment of the plant includes the following elements

1. Fully automated mobile concrete plant, 30-50 m3 per hour.

Located on a 2-axis frame. It can be transported as a trailer at a speed of 40 km/h.

2. Bunker of inert materials, 2 x 3.5 m3, with side expanders of more than 5 m3

3. Sensors for weighing inert materials. Located under the planetary mixer. Dosing accuracy +/- 100 g. SIEMENS - Germany

4. Conveyor for supplying inert materials from hoppers to the mixer, incl. electric motor

5. Pan-mixer 2200/1450 liters, covered with a 12 mm layer of special steel.

5 quick-removable spatulas with fiberglass tips. Automatically opening ready-made concrete feed valve

6. Galvanized water tank, 500 liters, with built-in DANFOSS pump and water dispenser

7. Air compressor 10 BAR

8. High-pressure compressor 160 BAR for cleaning concrete plant

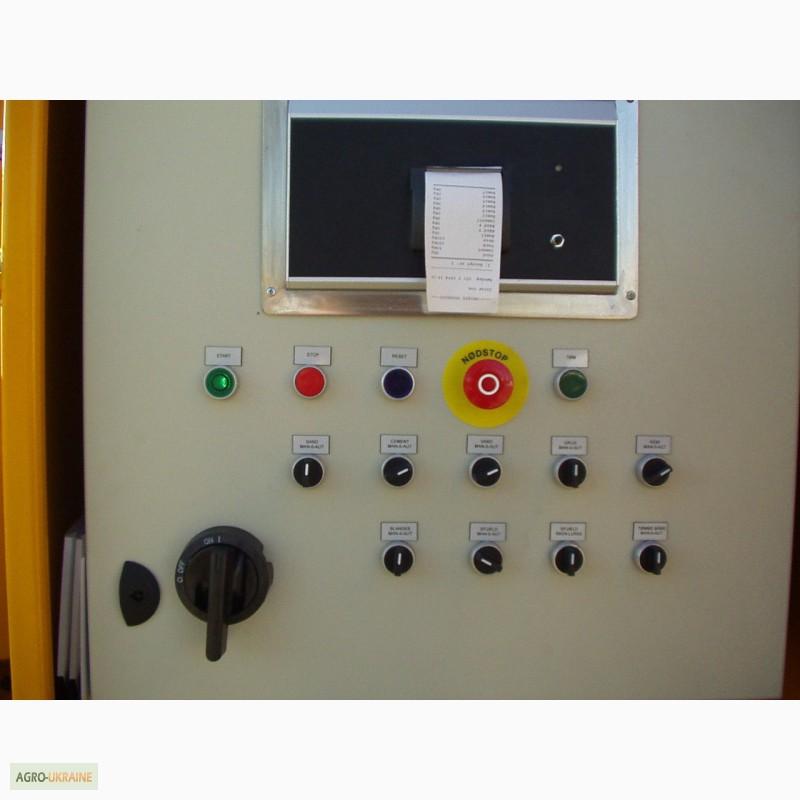

9. The control panel of the mobile concrete plant. Manual control keyboard.

The easy touch screen of PC ICON automatic plant control. 25 types of concrete with the possibility of changing the brand of concrete before each batch. A printer with a printout of the mixture of the finished dough in KG and %. Indicators per batch, time, shift, month
(//tractor-service.com)
Additional options (at the request of the Client)*

Concrete supply conveyor, 12 meters, width 1 meter.

Auger for feeding cement, 219 mm diameter, 4.5 m length.

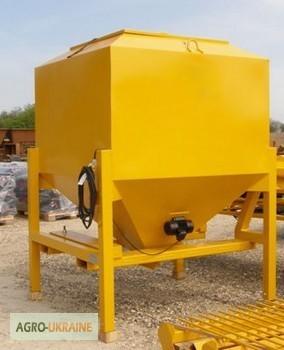

Cement silo 50 m³ - 200 m3

High pressure compressor

Chemical additive pump

Thanks to the use of European technologies, our equipment has a high level of durability and reliability.
Delivery of the equipment is carried out exactly on time.
More than 20 years of reliable partnership.
Sumab equipment works in Europe, Ukraine, CIS countries, Kazakhstan, South America, Arab countries and Africa.

Over the period of the company's activity, more than 500 concrete plants and plants for the production of paving slabs, curbs and reinforced concrete with various capacities and components were delivered.

To receive a commercial offer, please send an application to our email address.

The Sumab B-2200 mobile concrete mixing plant is:

High-quality and modern equipment, made according to time-tested European technologies!

Development and modification taking into account the latest concrete production technologies.

Quick payback of equipment and subsequent profit.

Ease of maintenance and cleaning of the concrete plant.

All fast-wearing parts are made of durable materials and can be replaced individually if necessary, which significantly reduces production costs.

Reliability, tested by time!
