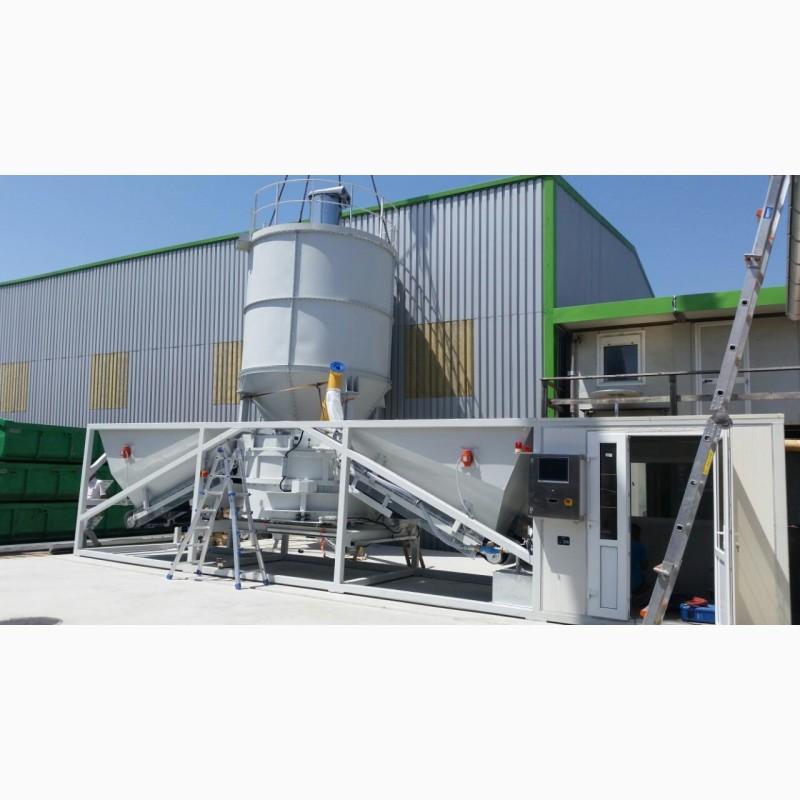

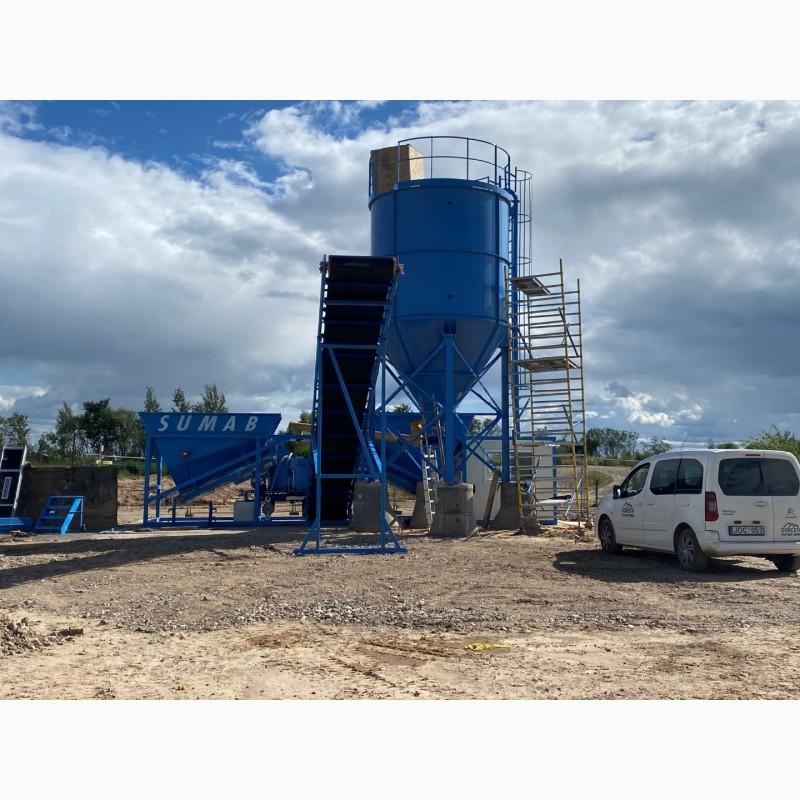

Mobile concrete plant Sumab K-60 (50-60 m3/h) Sweden, Kyiv

Mobile concrete plant Sumab K-60 Sweden

1. Mobile concrete plants have proven themselves as reliable and high-quality equipment for the production of any type of concrete and concrete mixtures, ensuring the high quality of the concrete produced.

2. Concrete production is possible already 3 hours after delivery of the concrete plant to the work site!

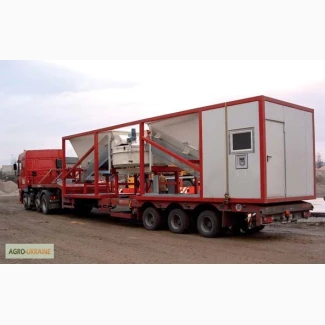

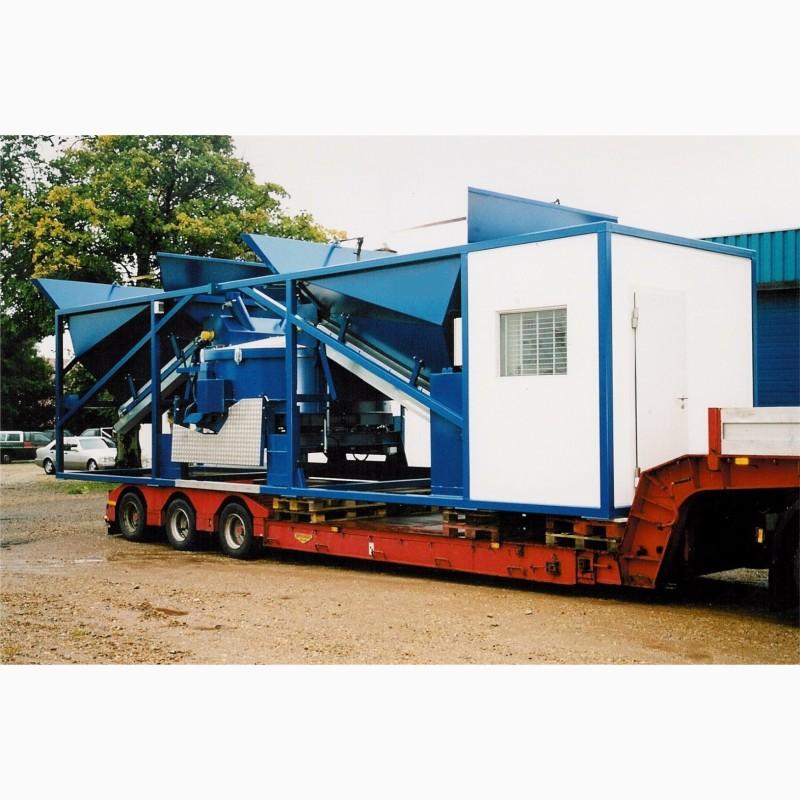

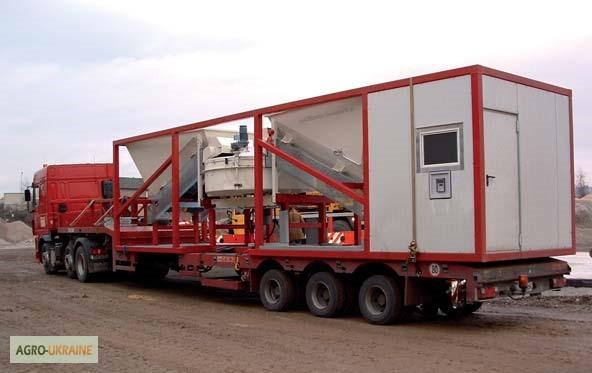

3. Mobile concrete plant can be easily moved from one object to another.

4. A FOUNDATION AND CONCLUSIONS ARE NOT REQUIRED FOR PLANT INSTALLATION!

5. Installation of a concrete plant is possible on any site, the minimum size of which is 15 x 20 m.

6. The mobile concrete plant is capable of producing more than 100 grades of concrete with a recipe change for each subsequent batch.

7. Automatic factory control, computer SIEMENS (GERMANY)

TECHNICAL CHARACTERISTICS AND EQUIPMENT OF THE CONCRETE PLANT

The Sumab K-60 mobile concrete plant is intended for the production of high-quality concrete and concrete mixtures, in a volume of 50-60 m3 per hour. The exact performance indicators of the plant depend on the type and brand of concrete produced, as well as on the inert materials used in the production of concrete, cement and the amount of chemical additives.

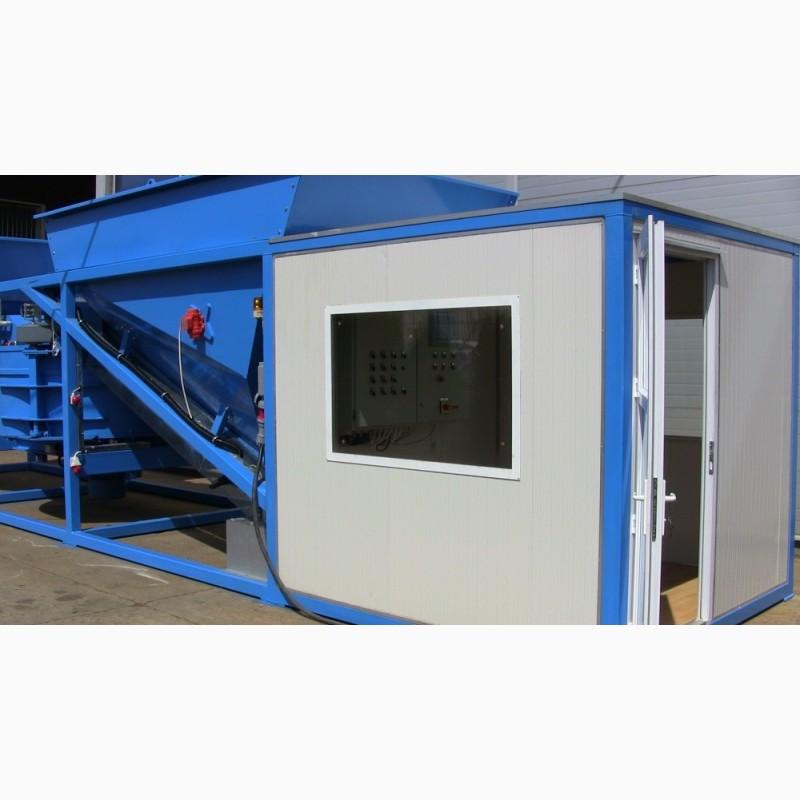

The mobile concrete plant is equipped with a convenient control cabin and an automatic plant control system. The modern computer system of Siemens allows to produce more than 100 recipes and types of concrete. It is possible to print out each mixture of the finished mixture in kilograms and percentages of inert materials or cement during the preparation of the concrete mixture.

The basic equipment of the plant includes the following elements(//tractor-service.com)

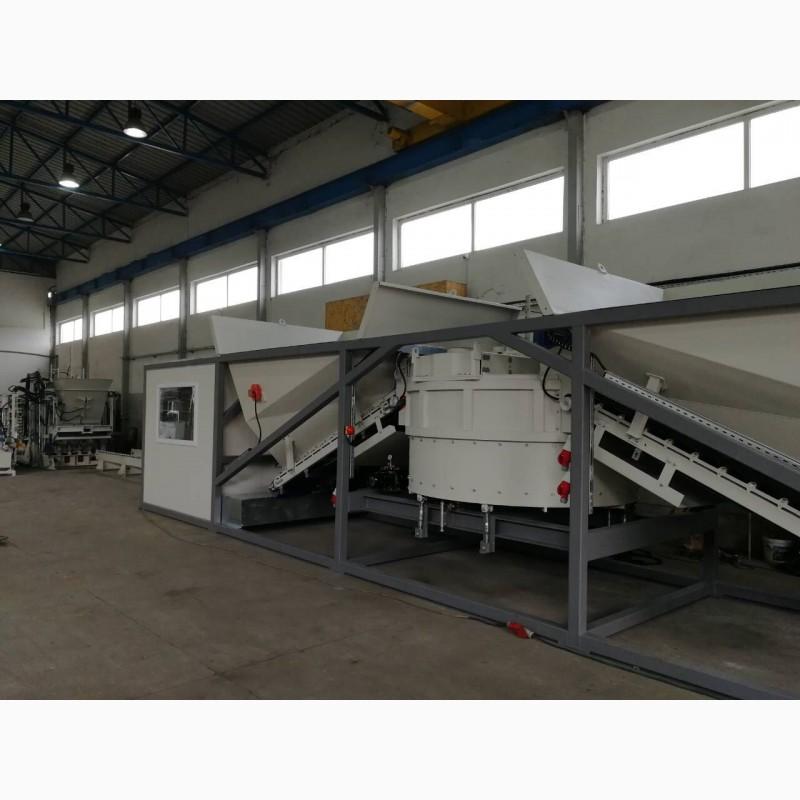

1. Fully automated mobile concrete batching plant Sumab K-60, capacity 50-60 m3 per hour. Mounted on a container frame

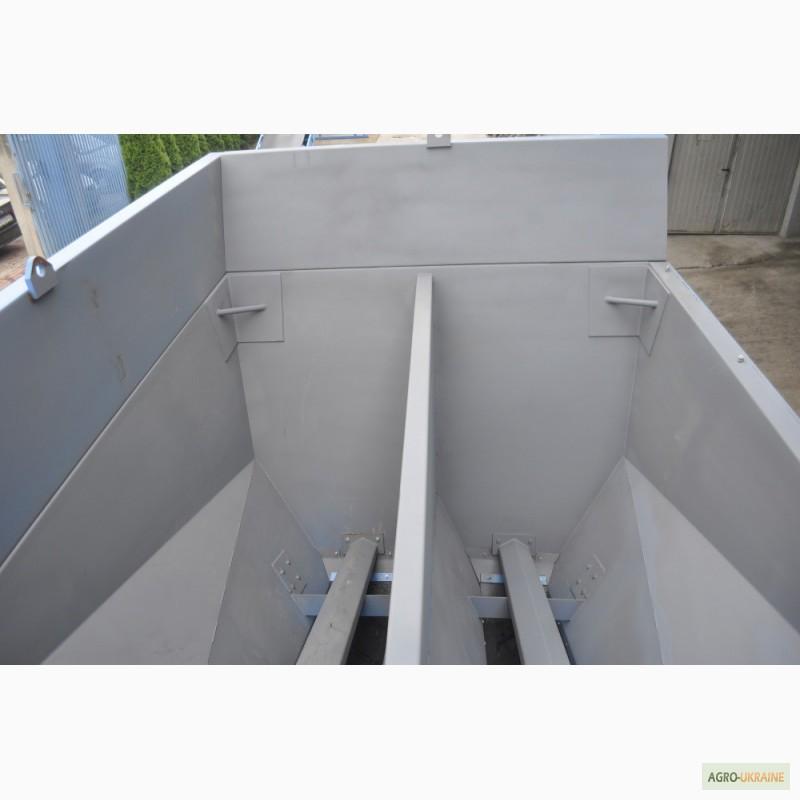

2. Bunkers of inert materials 4*3.8 m3, with the possibility of increasing the sides to 5 m3

3. Sensors for weighing inert materials. Located under the pan-mixer.

Dosing accuracy +/- 100 g. SIEMENS - Germany

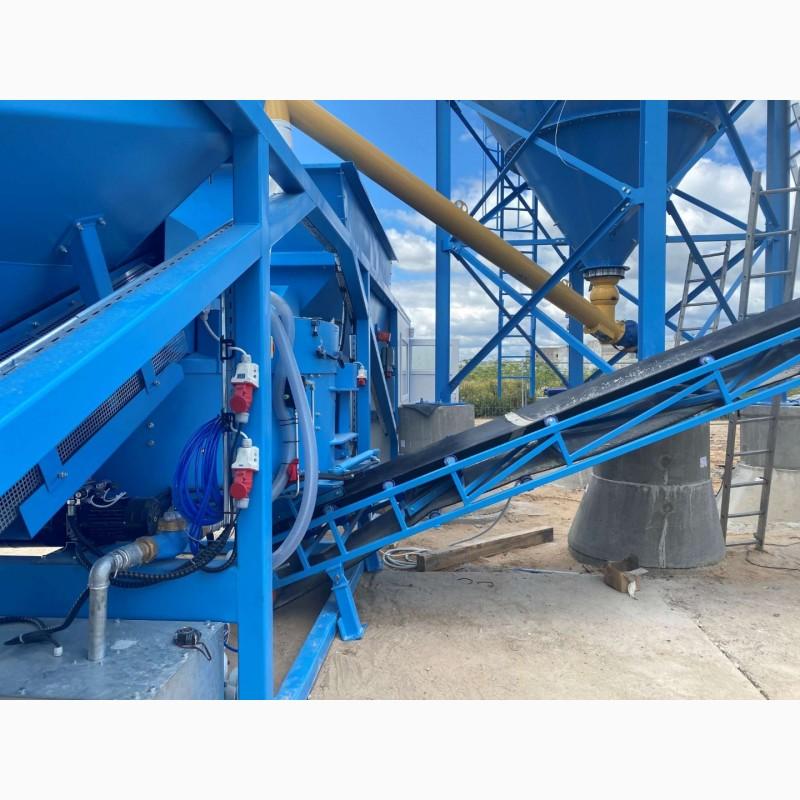

4. Conveyors for feeding inert materials from hoppers to the mixer, including an electric motor. Located under bunkers. 4.5 KW.

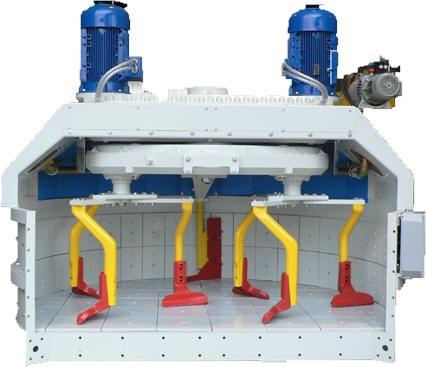

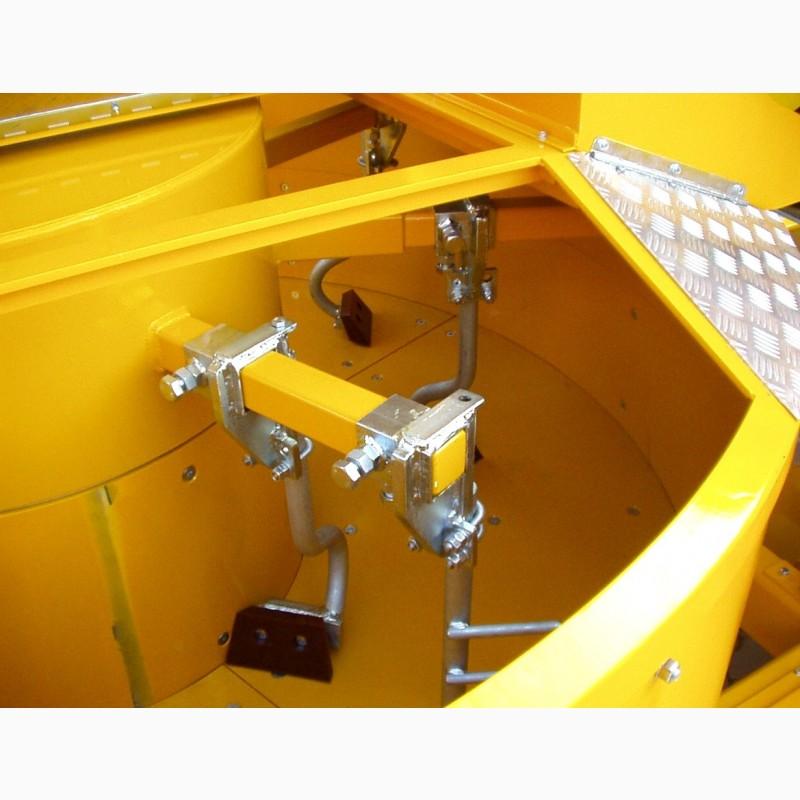

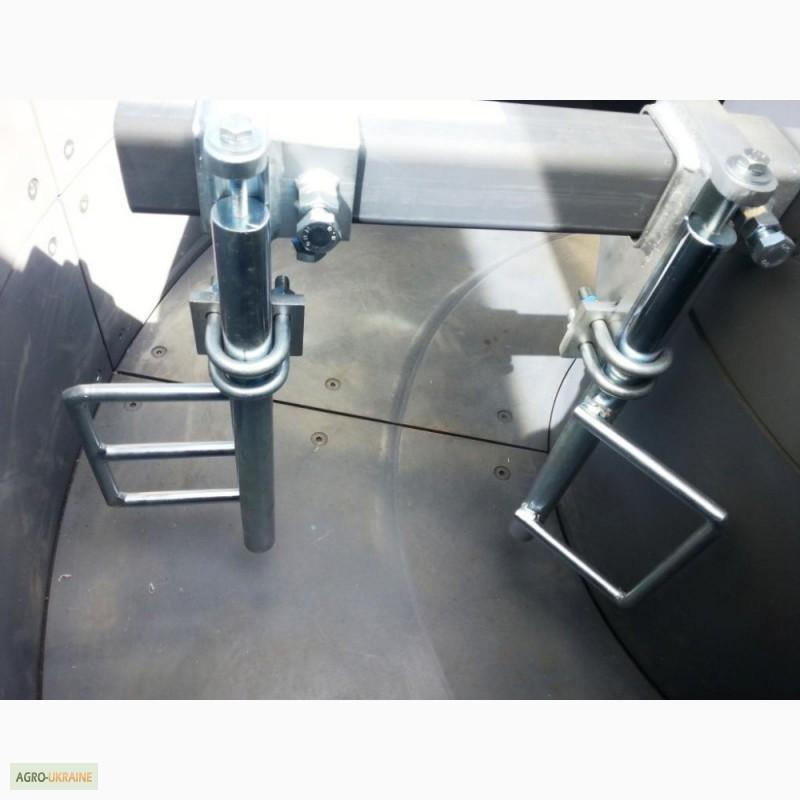

5. Pan-mixer, volume 1800/1200 liters, covered with a 12 mm layer of special steel.

5 quick-removable spatulas with fiberglass tips. The ready-made concrete feed valve opens automatically. The special arrangement of the paddles in the pan-mixer allows covering all parts of the mixer during mixing, thereby ensuring high quality concrete.

6. Galvanized water tank, 500 liters, with built-in DANFOSS pump and water dispenser.

7. Pump of chemical additives withhose with automatic control from RS

8. Air compressor 10 BAR.

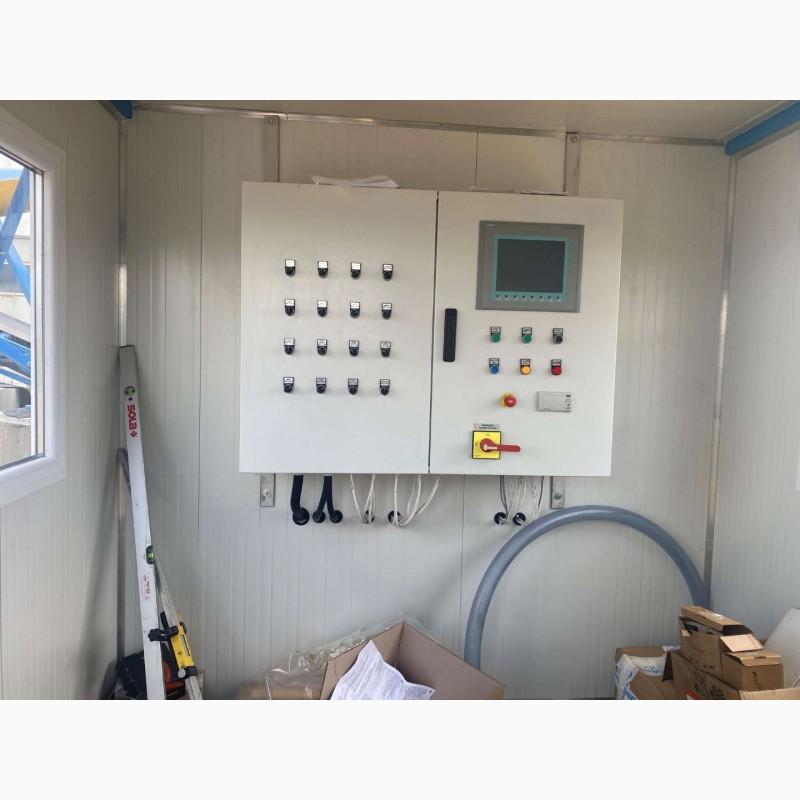

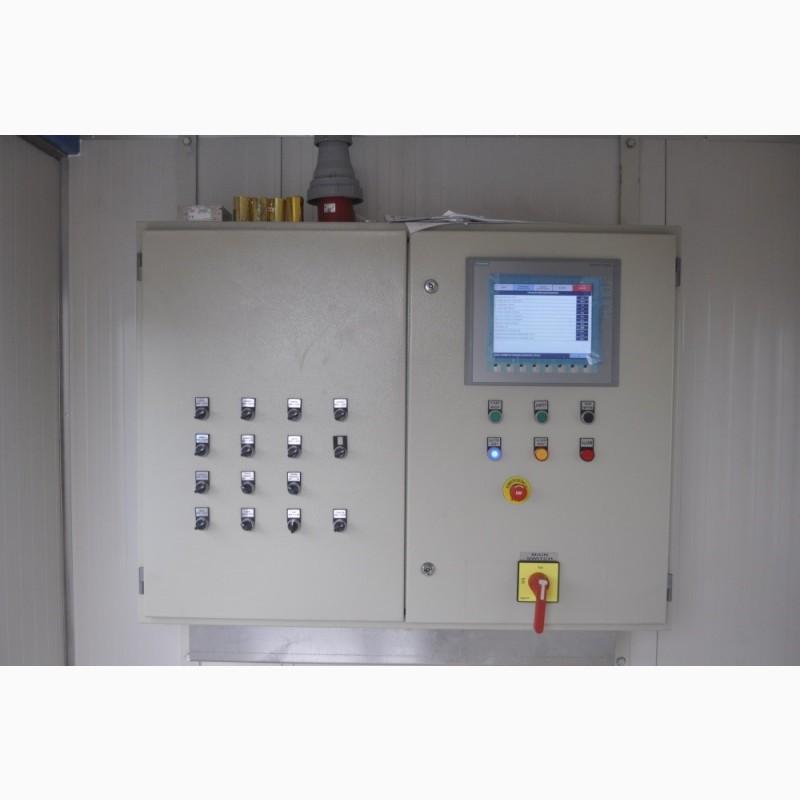

9. Manual control keyboard. Easy touch screen, SIEMENS computer system for automatic factory management. It allows to produce 100 types of concrete with the possibility to change the brand of concrete before each batch. The printer allows you to print out each mixture of the finished dough in kilograms and percentages. Indicators for batch, time, shift, month.

10. High-pressure compressor 160 BAR for cleaning a concrete plant.
