Vibropress Stationary SUMAB SVEMLO 72 m2, Kyiv

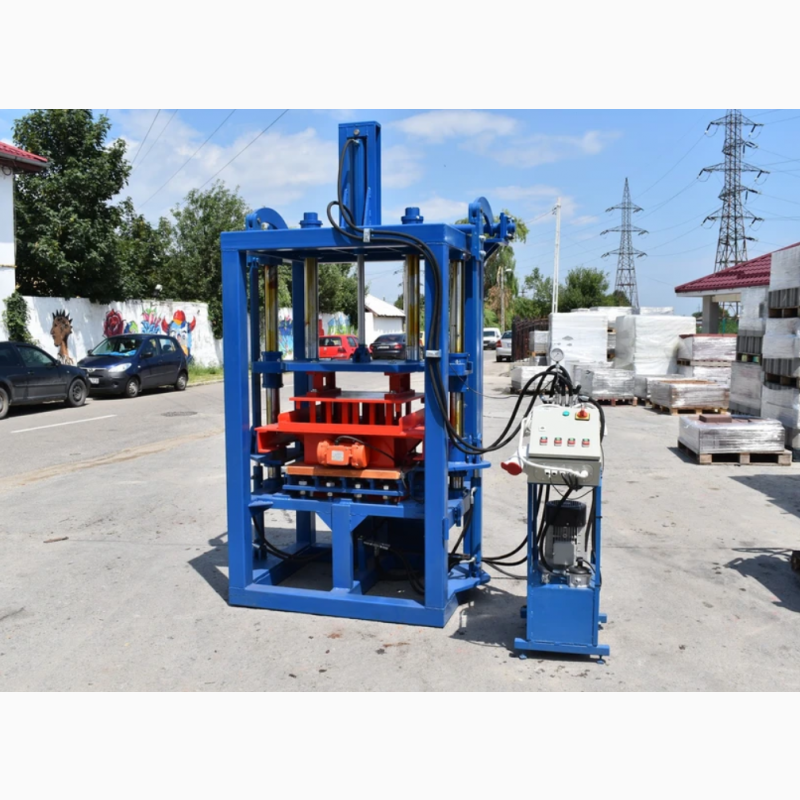

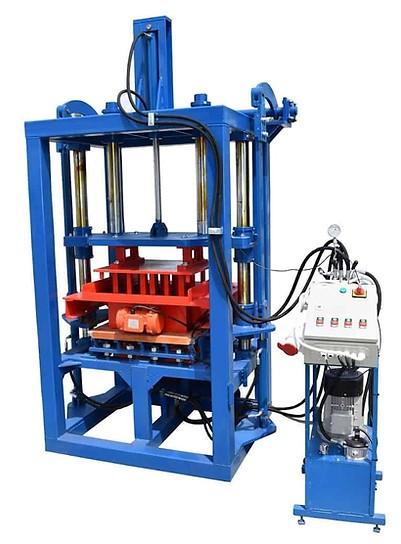

Vibropress Stationary SUMAB SVEMLO 72 m2

Purpose of the equipment:

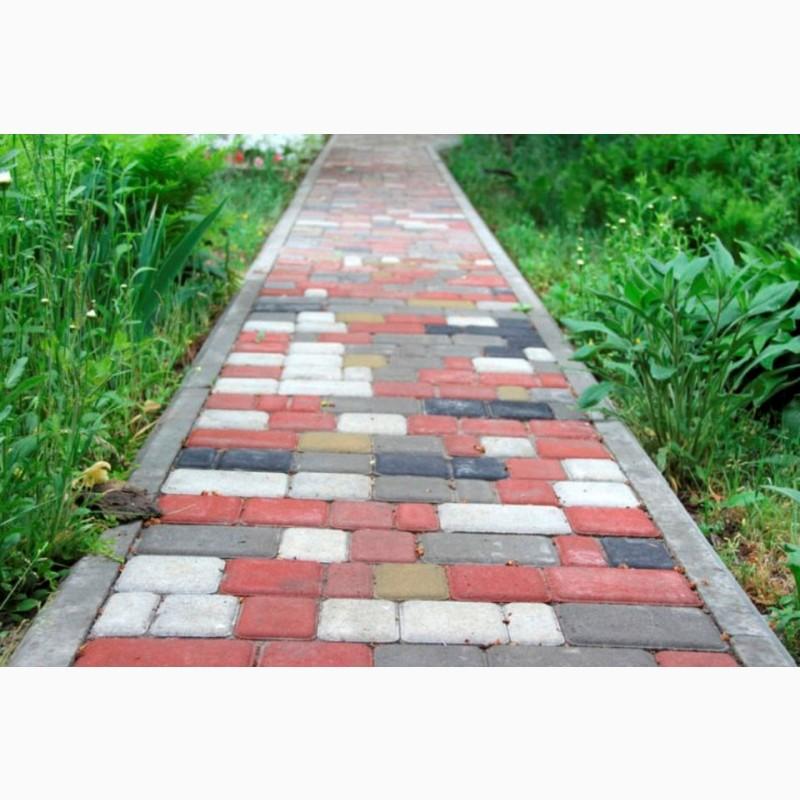

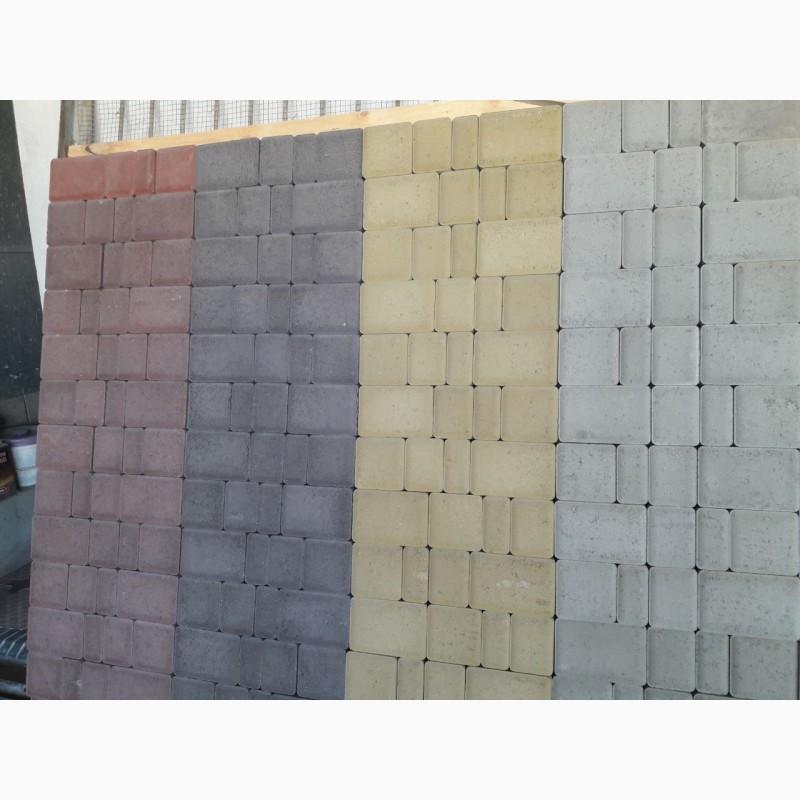

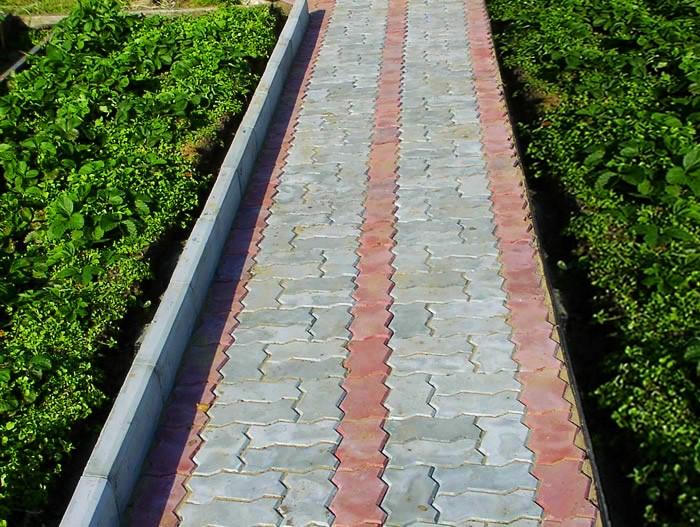

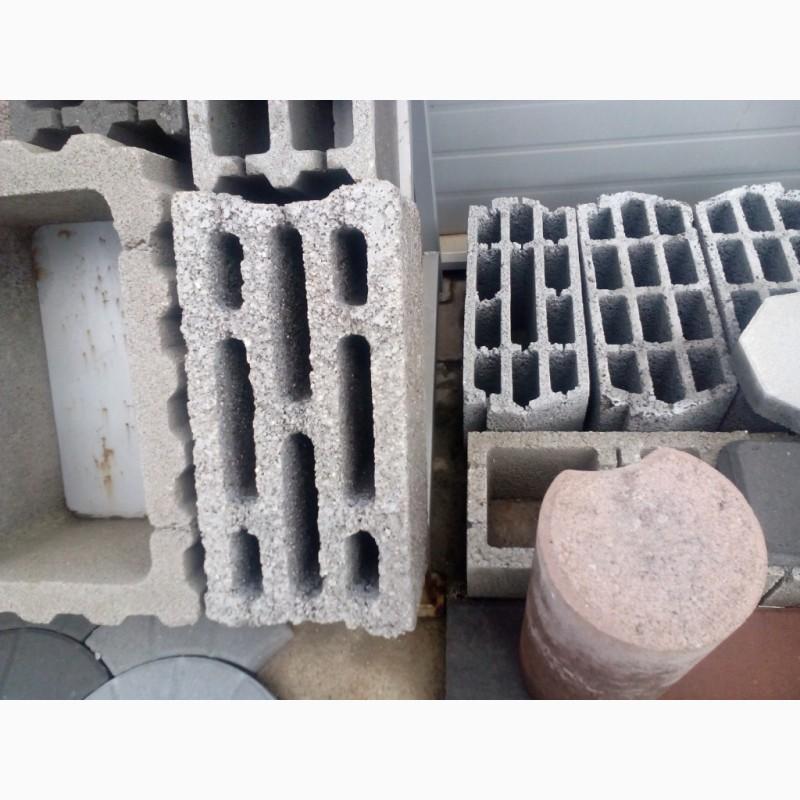

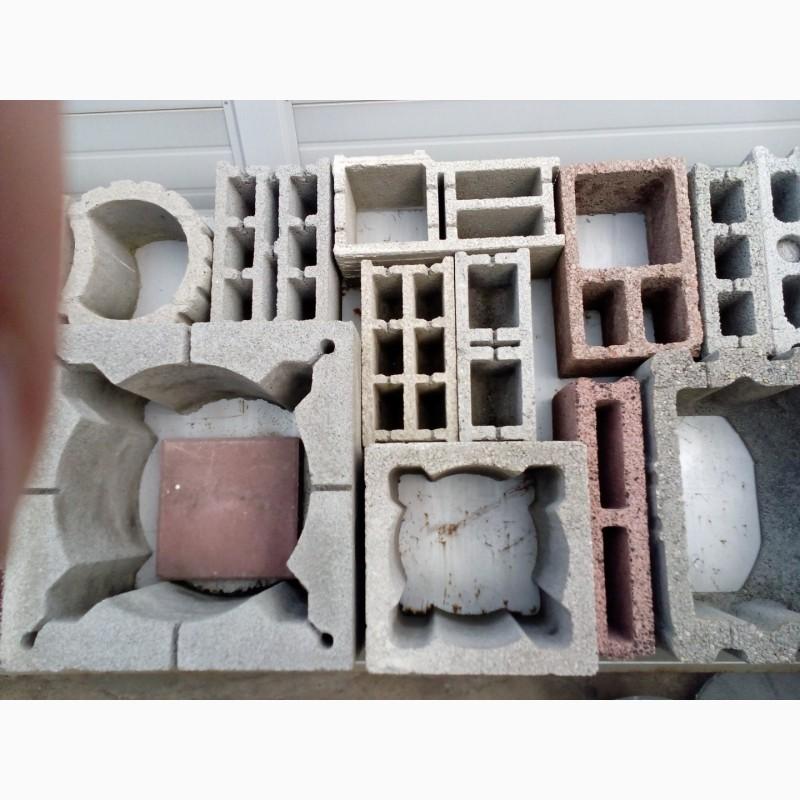

Production of paving slabs, production of curbs, production of concrete blocks, chimney elements, gutters, etc.

Advantages:
- high quality of concrete products due to a powerful hydraulic cylinder that provides pressure and vibration;
- chrome guides;
- sliding bearings with Teflon coating;
- a wide range of press forms;
- reliable mechanical and hydraulic systems;
- automatic stop of vibration upon reaching the height of concrete elements;
- reduction of time and effort to replace molds (2 hours);

Technical features:
Components: a press (vibro-pressing unit), a storage place for wooden pallets, a pallet supply line, a hopper and a box for the supply of sand-cement mixture, a line for unloading pallets with fresh products, a hydraulic station, an electrical control panel.

Pallet dimensions: 700x670x40 mm.
Usable area: 640x640 mm.
Minimum/maximum height of the finished product: 40/250 mm.
Vibration frequency: 3000 rpm.
Productivity of the hydraulic pump: 24 l/min.

Cycle duration:
50-60 seconds (blocks)
100-120 seconds (tiles/borders)

Installed power: 4.70 kW.
Hydraulic power unit: 3 kW.
Vibro-mass vibrators: 1.4 kW.
Supply voltage: 380 V.

Main dimensions:
Width: 1.58 m (with attached hydraulic group)
Length: 1.10 m, Height: 2.63 m
Machine weight: 1750 kg.

Maximum performance:

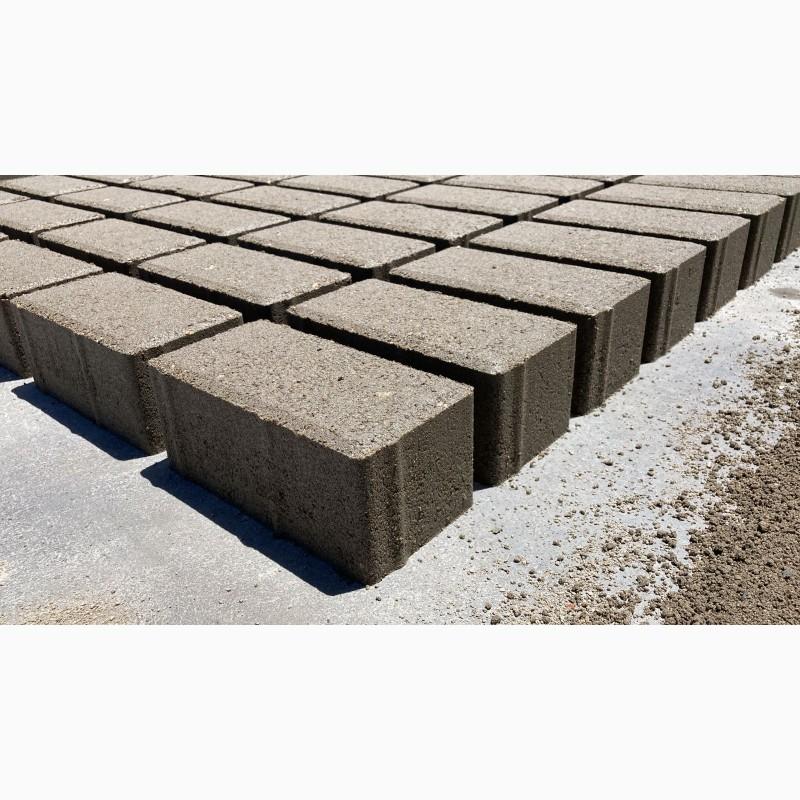

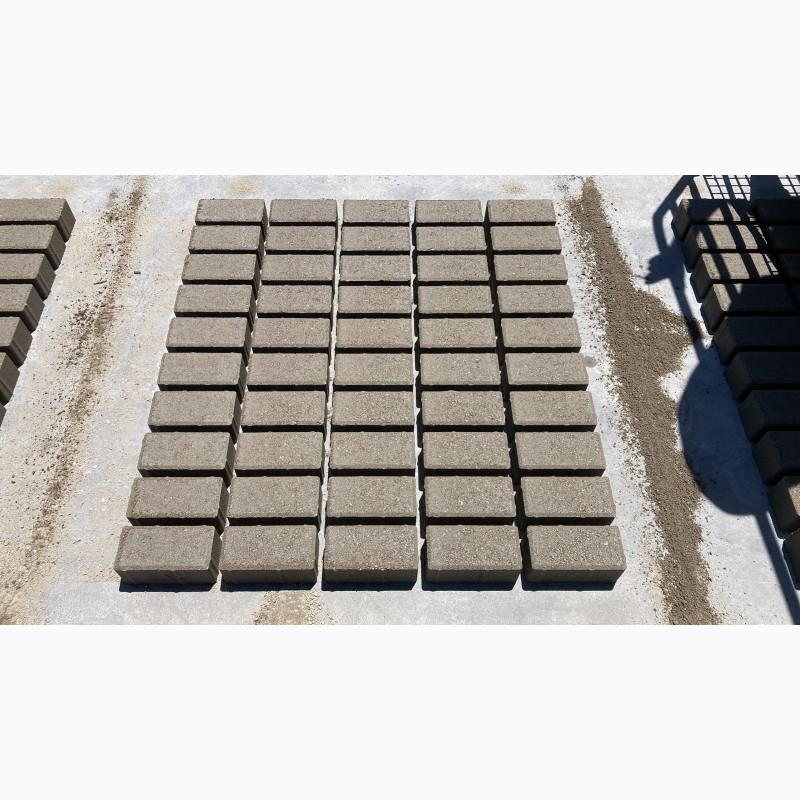

Tile (100 * 200 * 60 mm): 72 m2 / 8 hours; 171
Бордюри (500 * 100 * 150мм): 1280 шт / 8ч;

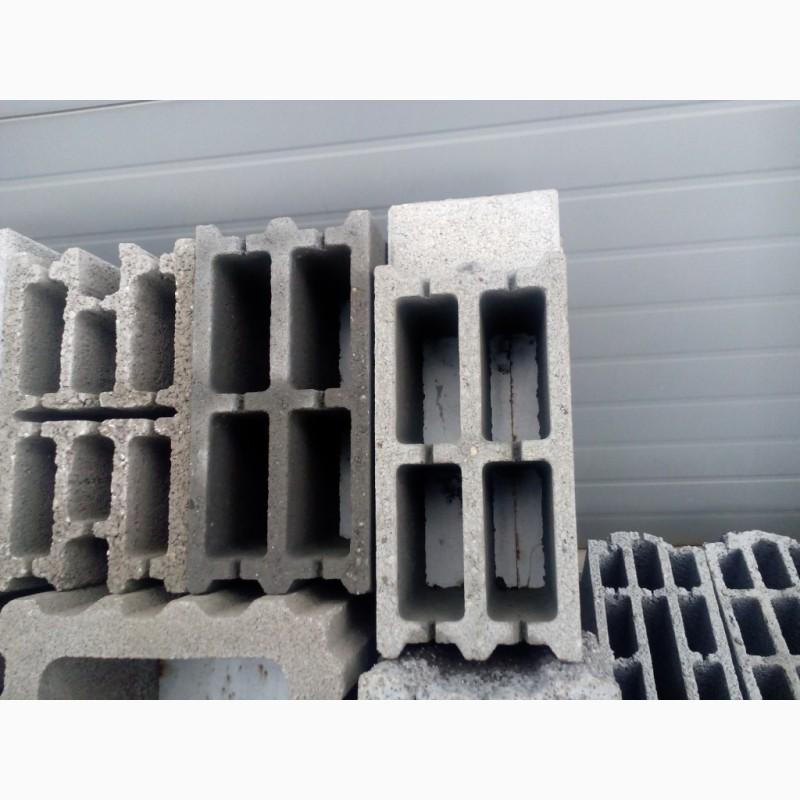

Блоки (200 * 200 * 400мм): 1200 шт / 8ч;

Для досягнення максимальної продуктивності стаціонарного вібропресу SUMAB SVEMLO 72 можна придбати наступне обладнання та аксесуари:

Concrete plant;
Belt conveyor;(//tractor-service.com)
Molds for various types of concrete products;
Technological pallets;
Crane for loading finished (dry) products;
Add. equipment and mixer for face layer;

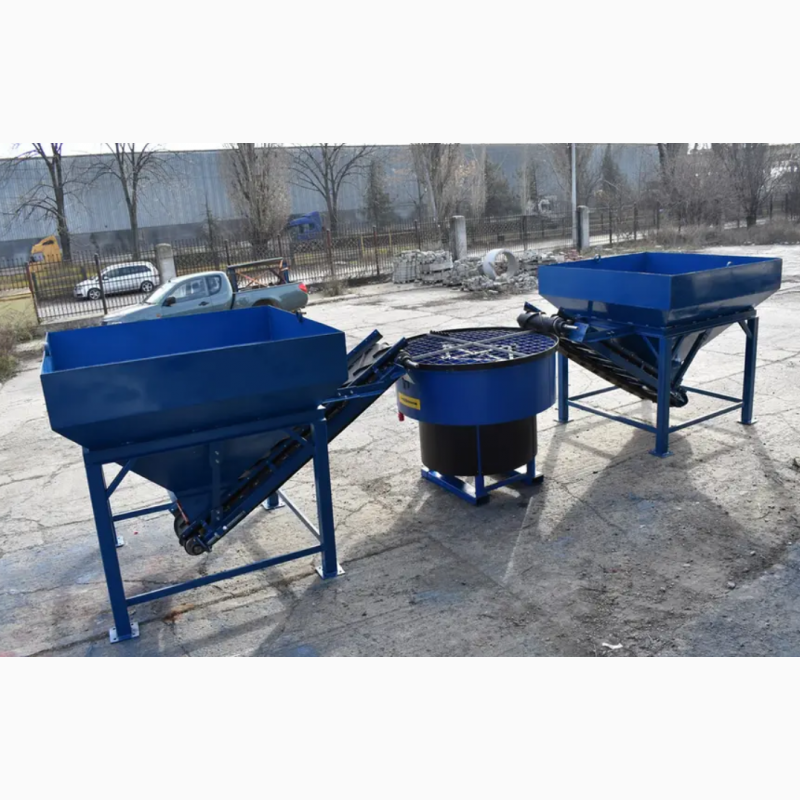

Concrete plant SUMAB SVEMLO 700:
Bunkers of inert materials
Bunker for gravel storage - capacity 8m3
Bunker for sand storage - capacity 8m3
Electric motor-vibrator, which facilitates the supply of aggregate.
Conveyor for feeding inert materials to the mixer - Length 6 m.
Motor 1.5 kW (380 V)
The PLC controls the volumetric dosing.

Mixer of vertical type 700 l;
The walls and bottom are covered with armor;
Hydraulic opening control;
Dosage of water and supplements;
Useful volume: 500 liters
Rotation speed: 32 rpm.
Electric motor: 22 kW (380V)
Dimensions: 2.10 x 2.30 x 2.60 m
Weight: 2700 kg.

Cement weight - 300 kg.
The flow maintained by the compressor

Cement feeding auger
Length: 5.6 m; engine 2.2 kW, diameter 139 mm
Feeding cement into the mixer

Conveyor belt for feeding concrete - Length 6 m.
Motor 1.5 kW (380 V)
Moves concrete from the mixer to the hopper of the machine.

Cabin with PLC control panel - Mitsubishi PLC;
- possibility of automatic or manual control;
Productivity: 6 m3/h

Cementsilo for concrete plant
- Capacity: 24 m3
-The silo is equipped with a pressure relief valve, a low volume indicator and a fluidizer.
- internal diameter 2500 mm;
- The height of the cylindrical shell is 4500 mm;
- The height of the conical bottom is 1700 mm;
- overall height, incl. railing 8700 mm.
