Stationary block line (vibropress) Sumab R-500 AUTOMATIC.

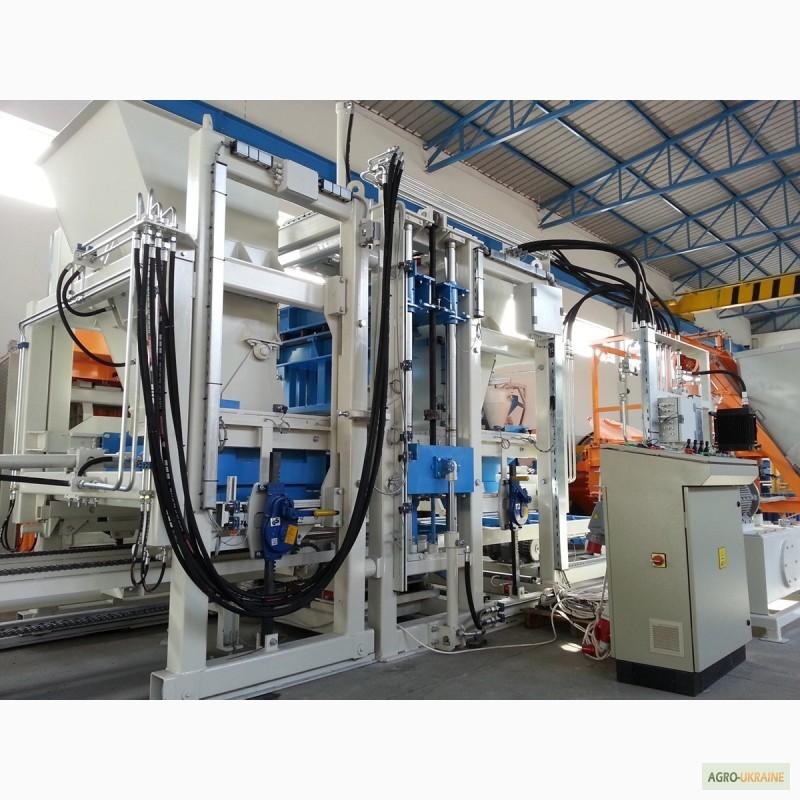

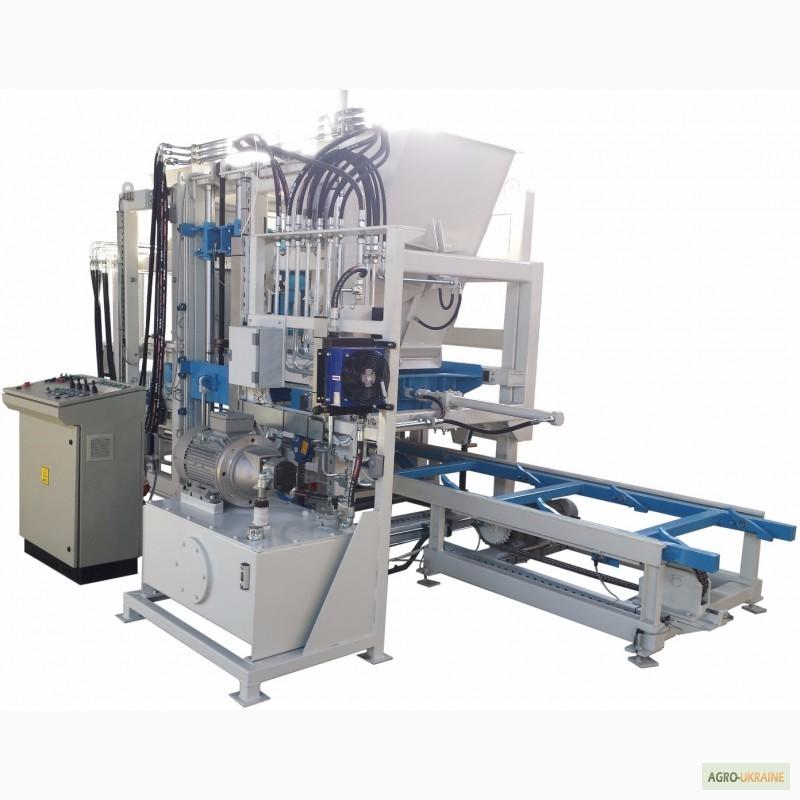

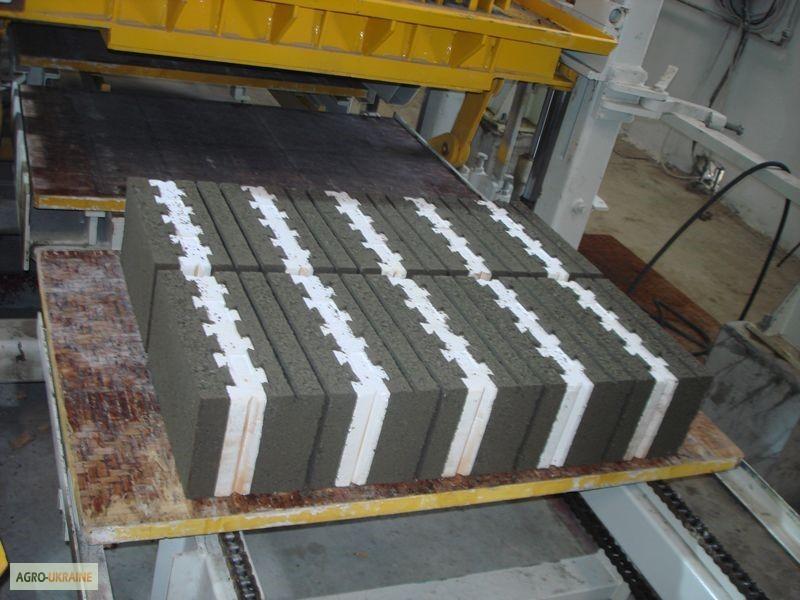

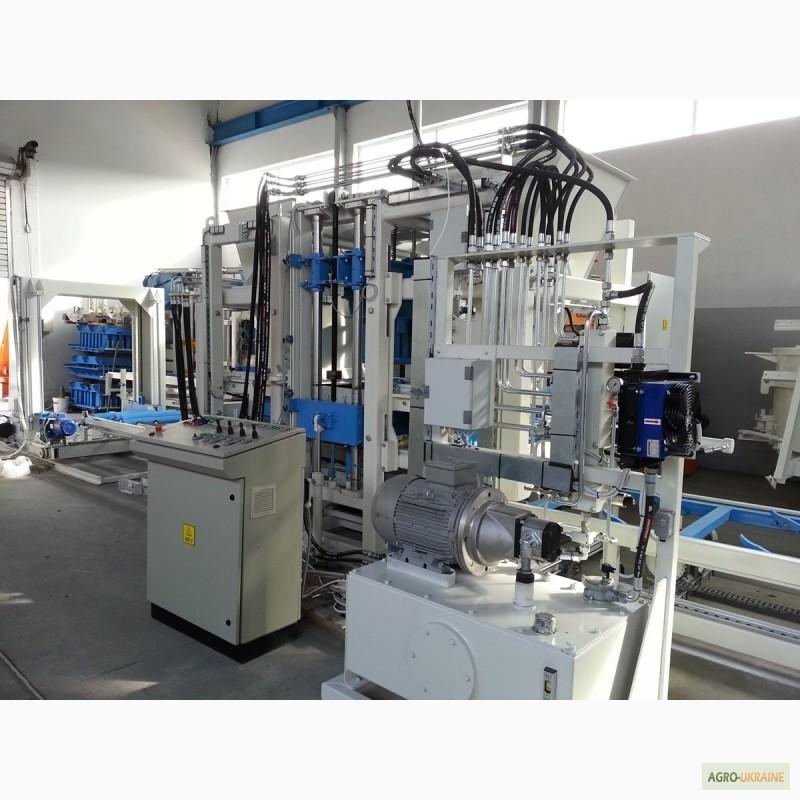

Stationary block machine Sumab R-500 with automatic control with pallet insertion device, with pallet accumulator and conveyor belt for fresh finished products.

Vibration system with frequency control Knauer, Germany.

Pallet dimensions: 1400×600 mm.

Usable area (working area of the press) max. 1250x620 mm.

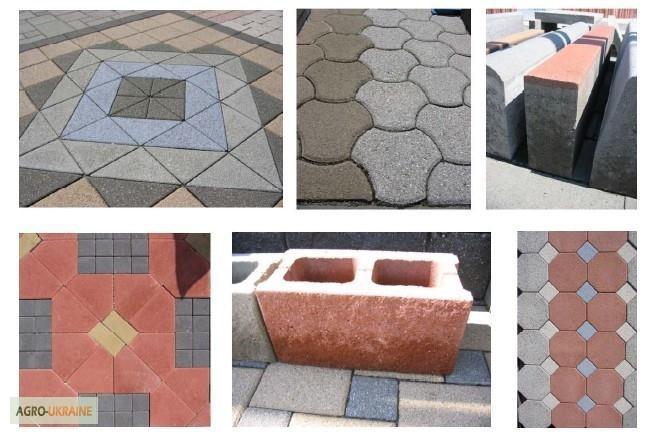

Productivity per shift (8 hours):

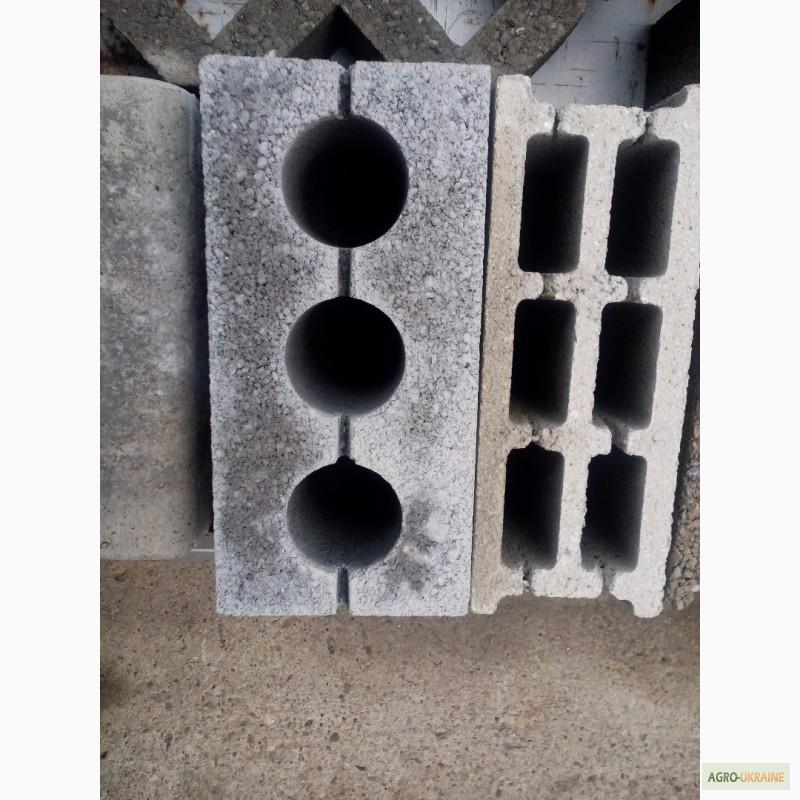

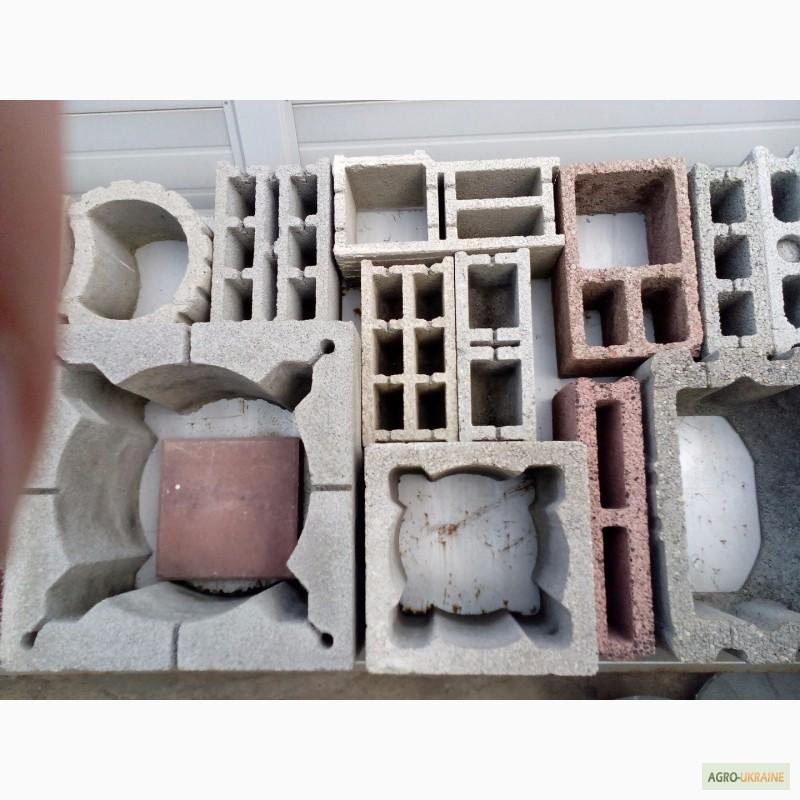

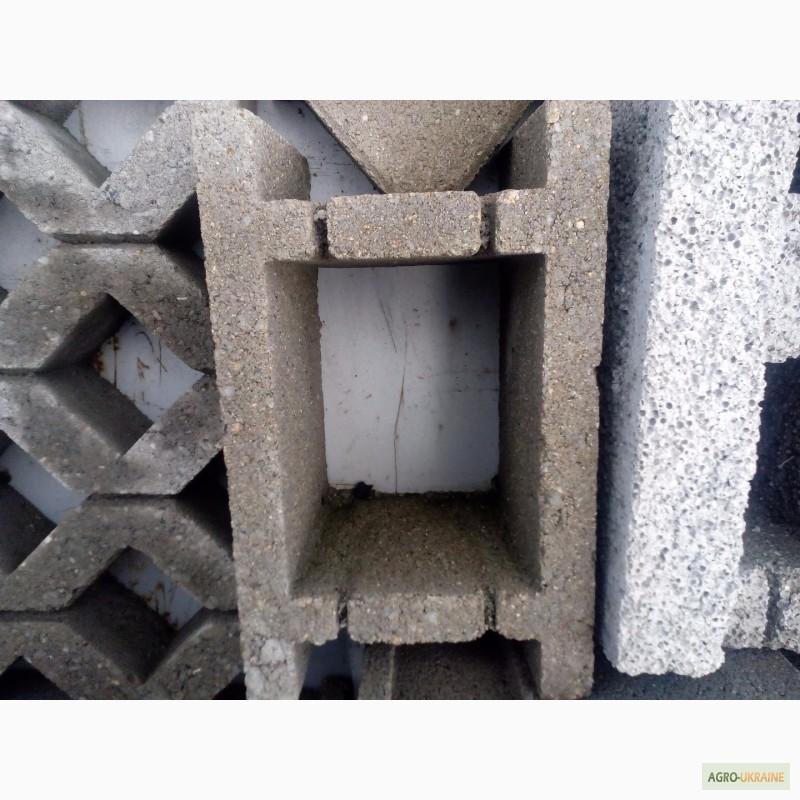

12960 pcs. hollow blocks (20x20x40 cm)

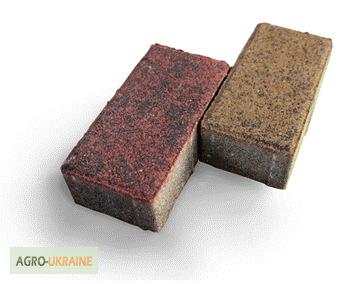

864-1016 m2 of paving stones (10x20x6 cm) color/no color.

2000–2500 pcs. curbs depending on the size of the curbs, the presence of an additional front layer.

Technical data of the Sumab R-500 machine:

Maximum product height: 330 mm

Minimum product height: 25 mm

Weight of the machine with equipment for an additional layer of paint and a hard surface of products and a press mold: 7700 kg

The volume of the main concrete bunker: 1100 l

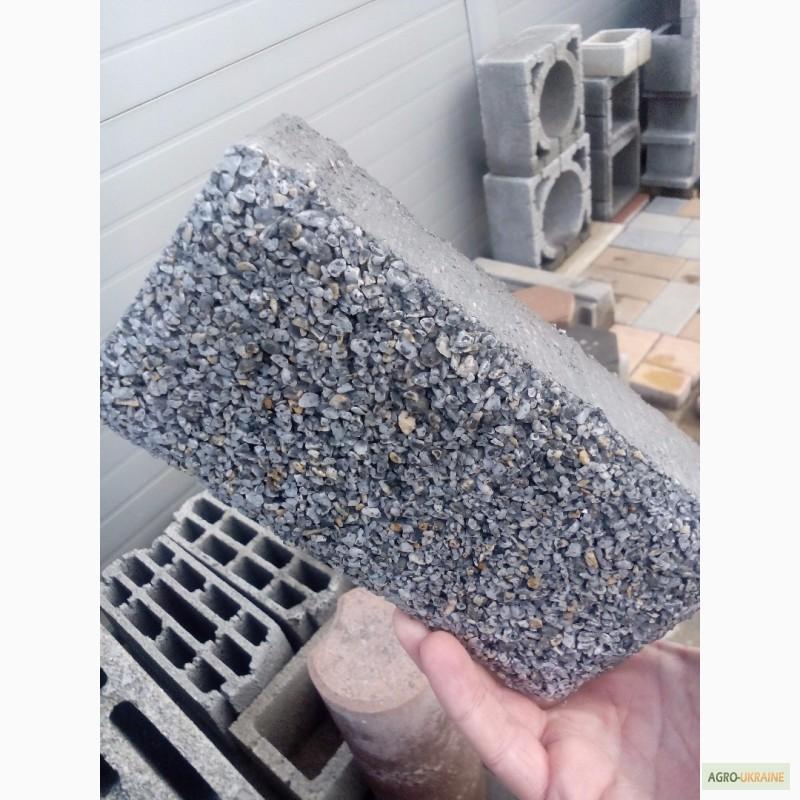

The volume of the additional hopper of materials for applying paint and the hard surface of products: 1100 l

Machine frame.

The powerful main frame of the machine is built from a metal structure in the form of a square tube. The system of molds and tamping head works hydraulically in a system of chrome columns (2 guides). The columns are chrome-plated, grounded and installed in easily replaceable bushings. The form system is attached to the guide columns. The two lower hydraulic cylinders are attached to the steel shaft for synchronizing the unfolding stroke. The tamping head is controlled by four guide columns and equipped with easily replaceable bushings. It is actuated by a hydraulic cylinder, which creates the impact force of the head.

Fixation of press forms.

Forms are fixed with 4 screws. The pressure of the forms on the vibrating table can be adjusted with the help of 4 tension spring buffers covered with rubber. Pre-tensioning of the forms is carried out with the help of four easily accessible screws located on the beam for lifting the forms.

Tamping head.

The tamping head plate is attached to the head bridge with rubber shock absorbers and equipped with two compact vibrators. For the production of special products, rubber buffers can be blocked at 4 points of the ramming head beam.

Pallet transportation system.

Moves pallets and transports them to the correct position on the vibrating table. For sensitive products (hollow blocks, etc.) there is a soft start/braking function. The pallet transport device is driven by an electric motor controlled by a frequency converter.

The main system of filling with concrete.

It is a powerful frame structure made of square pipes. On it is a concrete bunker with asilo gate and a level indicator. Hydraulic (electromechanical) silo gates fill the aggregate with concrete.

The aggregate is controlled by a direct-acting hydraulic cylinder. It moves on jointed rollers and is equipped with a plastic/steel brush for cleaning the head.

Hydraulic equipment.

A tank for hydraulic oil with a volume of 270 liters is located separately from the machine. The pumps and the motor are locatedon the side of the tank. There is also a filter with an indicator of dirt, oil level, cooling (optional) and a heater (optional) for heating the oil. The maximum pressure is 170 bar.

All electric valves are standard and replaced by CETOP if the machine is equipped with a PLC control system. The pressure regulators of all parts of the machine have a hydraulic drive.

Filling system: external part.
(//tractor-service.com)
It consists of a powerful frame structure made of square pipes. On it is a concrete bunker with asilo gate and a level indicator.

The entire system is mounted on 4 wheels, which allows you to move the device manually if service or replacement of forms is required.

Hydraulic (electromechanical) silo gates fill the aggregate with concrete.

The aggregate is controlled by a direct-acting hydraulic cylinder. It moves on jointed rollers and is equipped with a plastic/steel brush for cleaning the head.

Electrical control.

It consists of a main board, a control panel and a supply and discharge distribution box. All three phase wiring, inverters and control units are installed on the main board.

Conducting is simple and can be extended. Switches and adjustment buttons are installed on the control panel. The control interface with a touch screen is easy to operate, an error diagnosis system is provided.

The entire electrical system has contacts and is tested, which saves time for its installation at customers.

Proximity sensors - limit switches:

All necessary proximity sensors, photocells and emergency switches are provided.

All electrical connection is a centralized system, the system can be made decentralized as an option

Knauer vibration system (Germany) with electronically synchronized external drives:

Engine power for desktop vibrators: 2x5.5 kW

Total force 100,000 N!

This vibration system is made with two electronically synchronized external drives. Frequency-controlled motors are mounted on a frame that is isolated by rubber buffers. Different frequencies can be selected for pre, intermediate and main vibration. Intermediate vibrators continue to operate at a low frequency.

Press stamps for the Sumab R-500 machine.

Press stamp body:

Cut from a solid sheet of high-performance special steel and successively hardened by heat treatment.
Very high wear resistance.
Gasket along the entire height.
A hardness of about 60/62 HRC was achieved with a depth of 1/1.5 mm.
Plates, supports and other parts of Fe 430.

Rammer head:

Made from a special leave of hardened steel, milled and polished by an automatic machine, the surface is hardened by heat treatment. A hardness of about 60/62 HRC with a depth of 0.5/0.8 mm was achieved.
Machine control of each vacation became.
Plates, supports and other parts of Fe 430.

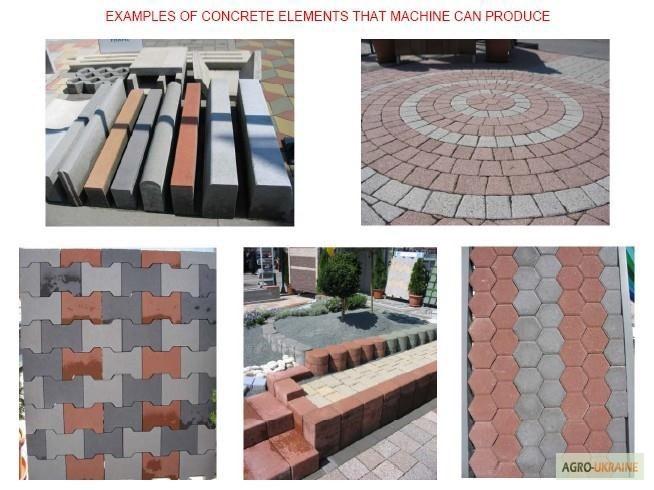

Optionally, there is a large amount of equipment that allows you to produce various types of products.

Equipment warranty - 24 months.

The company provides a qualified installation supervisor, commissioning and staff training.

Thanks to the use of European technologies, our equipment has a high indicator of durability and reliability.

Equipment is delivered exactly on time.

Over 25 years of reliable partnership.

The equipment works in European countries, Ukraine, CIS countries, Kazakhstan, South America, Arab countries and Africa.

To receive a commercial offer, please send an application to our email address.
