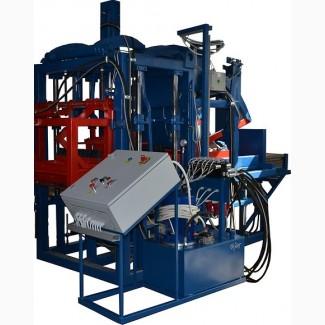

Vibropress Stationary SUMAB SVEMLO 120 m2, Kyiv

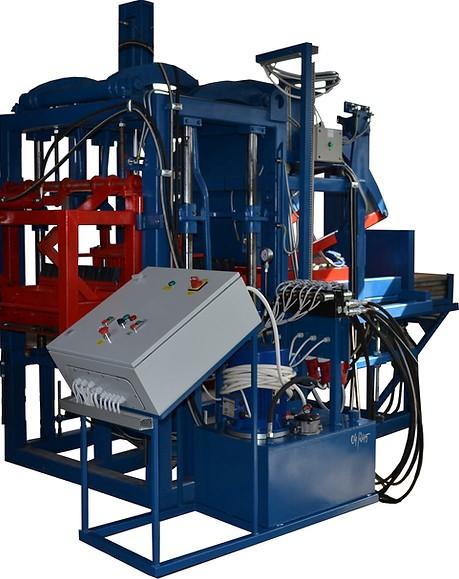

Vibropress Stationary SUMAB SVEMLO 120 m2.

Purpose of the equipment:

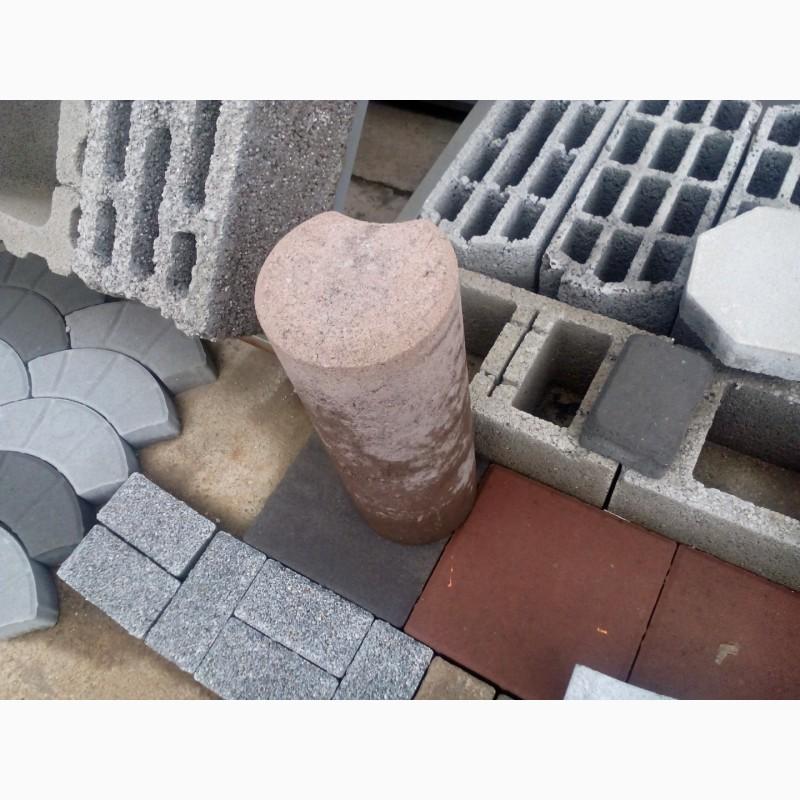

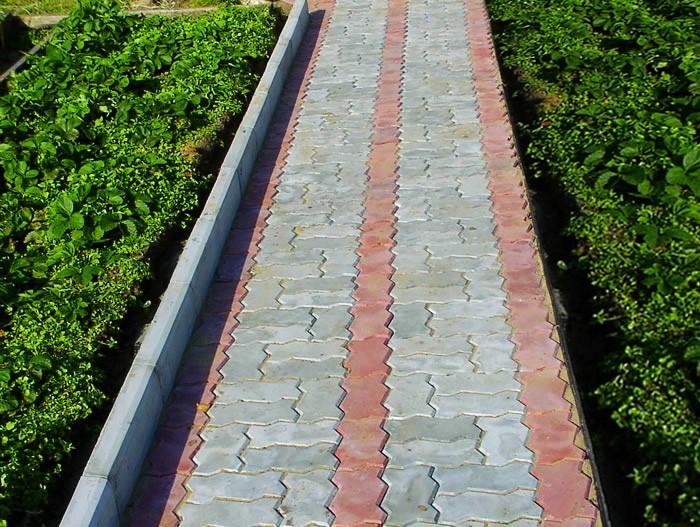

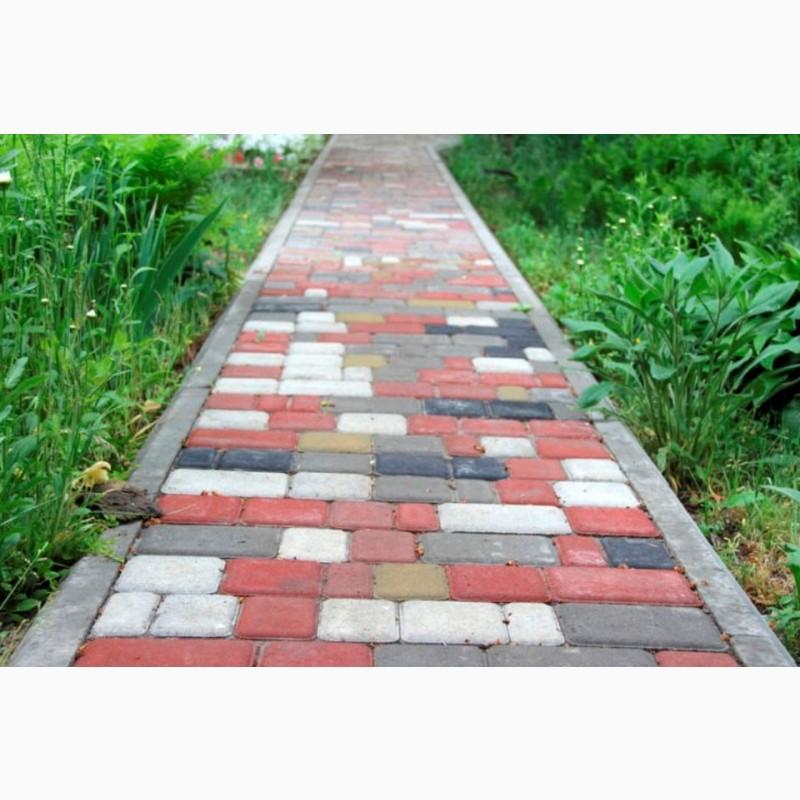

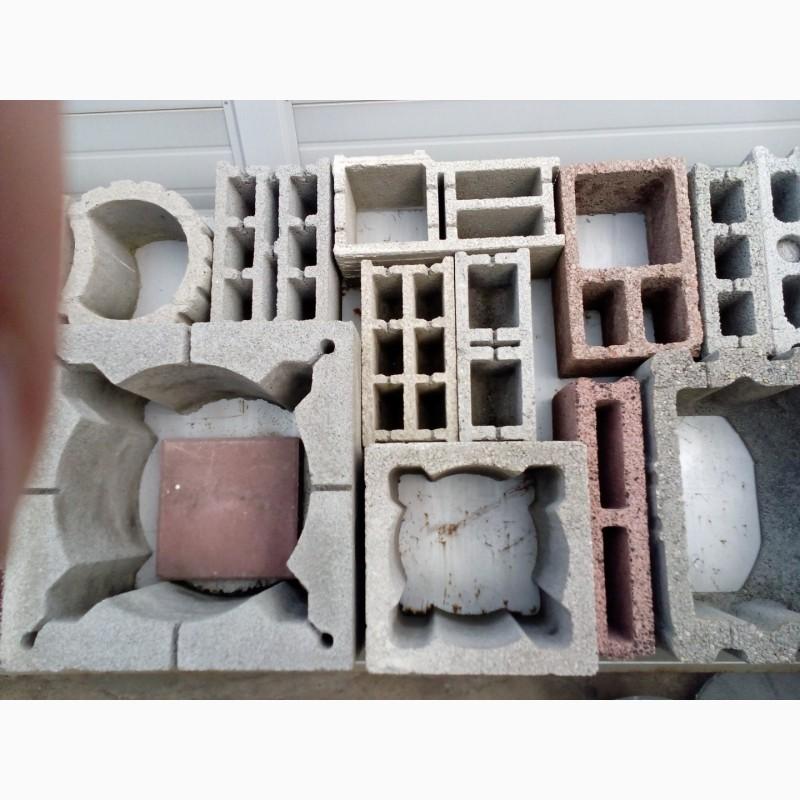

Production of paving slabs, production of curbs, production of concrete blocks, chimney elements, gutters, etc.

Advantages:
Powerful vibration provided by two electric motors;
The punch is equipped with two vibration motors;
Schneider Electric electrical control and management components;
Our diverse range of molds can provide diversification of production;
Reliable mechanical and hydraulic systems;

Technical features:
Components: a press (vibro-pressing unit), a storage place for wooden pallets, a pallet supply line, a hopper and a box for the supply of sand-cement mixture, a line for unloading pallets with fresh products, a hydraulic station, an electrical control panel.

Pallet size: 700x670x40 mm.
Usable surface: 630x630 mm.
Minimum/maximum height of the finished product: 40 mm/250 mm.
Vibration frequency: 3000 rpm.
Vibrating table: 2 vibrators.
Punch: 2 vibrators.
Cycle time: 35-60 seconds;
Installed power: 15.50 kW.
Supply voltage: 380 V.
Hydraulic unit: pump with a capacity of 30 l/min; electric motor: 7.5 kW
Overall dimensions: 1.60x5.60x3.10m.
Weight: 4000.00 kg.

Maximum performance:

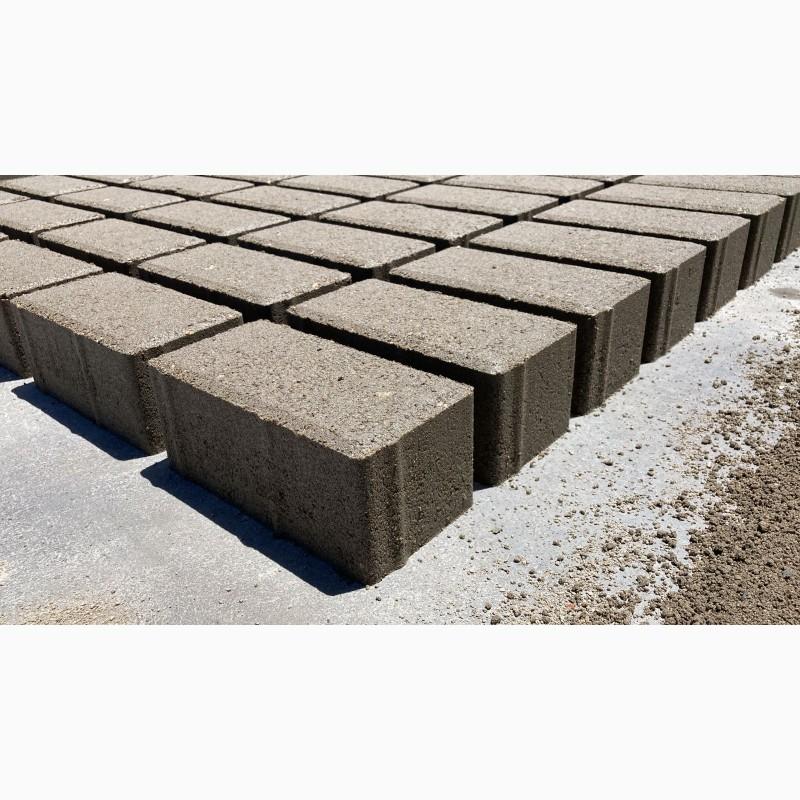

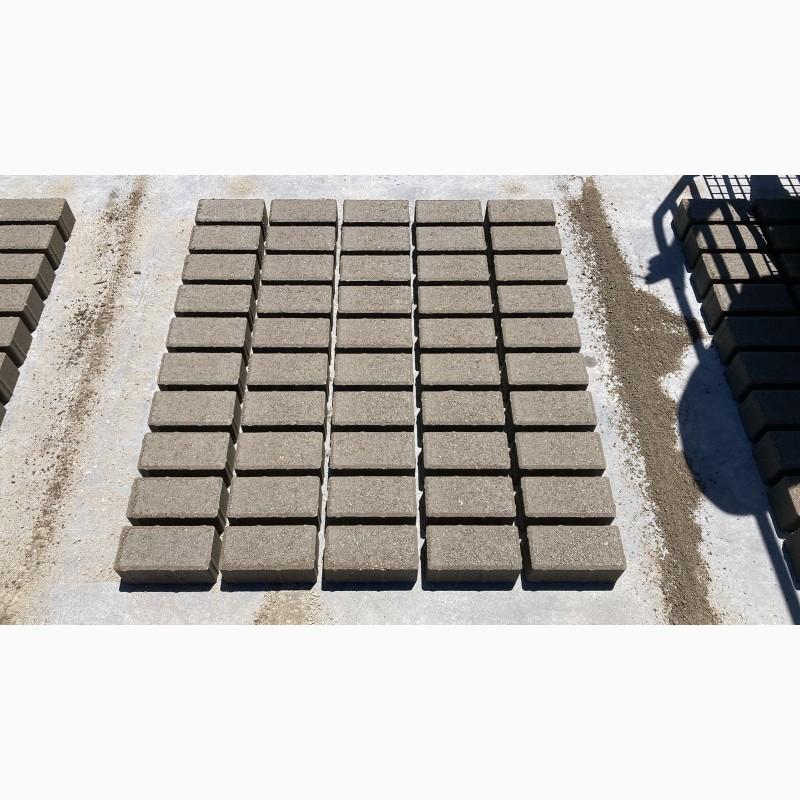

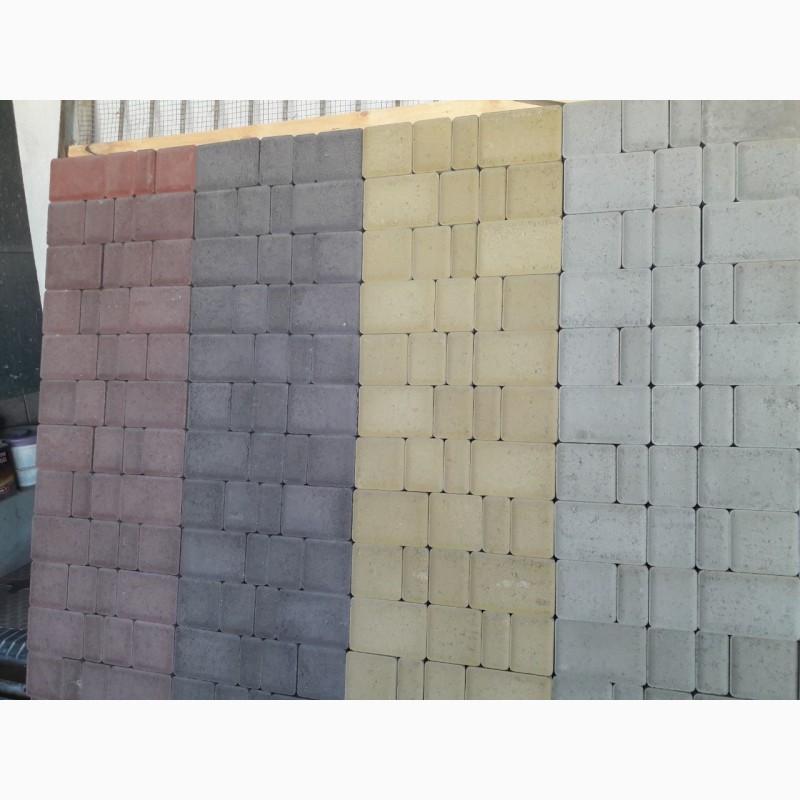

Tile (100 * 200 * 60 mm): 120 m2 / 8 hours; 162
Бордюри (500 * 100 * 150мм): 1920 шт / 8ч;

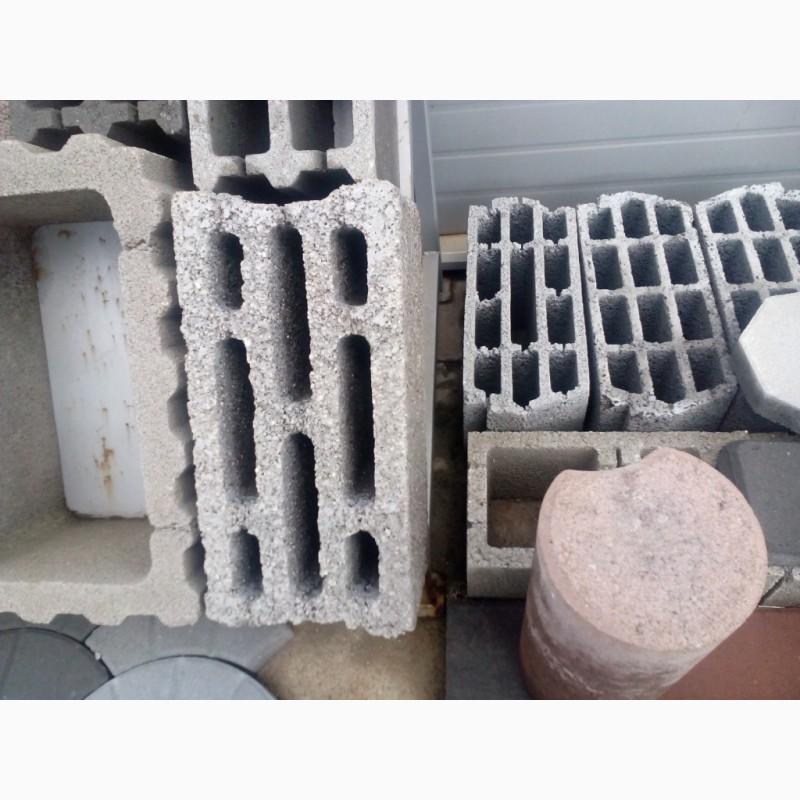

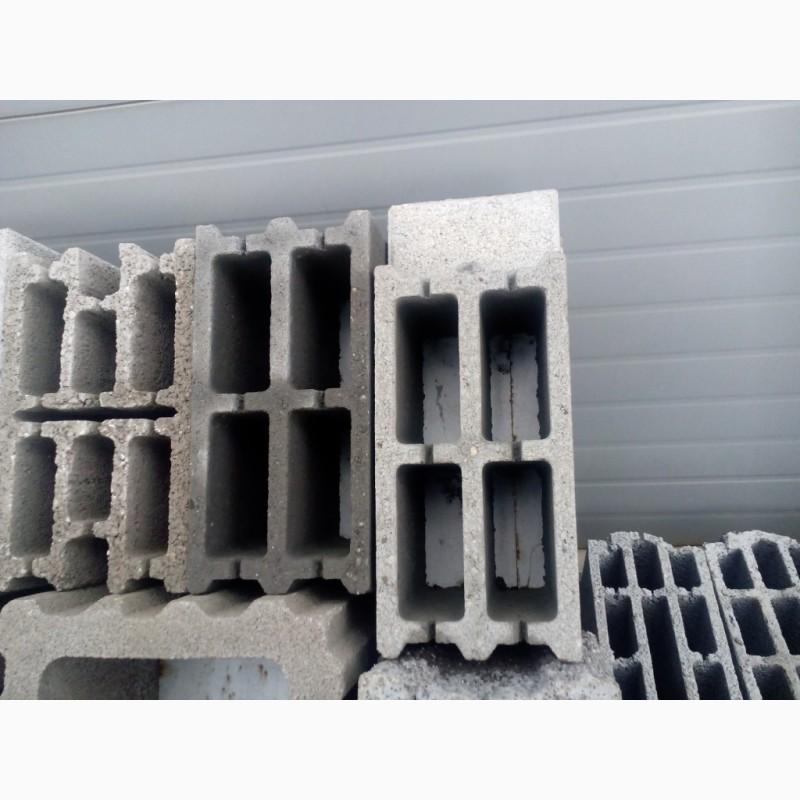

Блоки (200 * 200 * 400мм): 1440 шт / 8ч;

Для досягнення максимальної продуктивності стаціонарного вібропресу SUMAB SVEMLO 320 можна придбати наступне обладнання та аксесуари:

Concrete plant;
Belt conveyor;
Molds for various types of concrete products;
Technological pallets;
Crane for loading finished (dry) products;
Add. equipment and mixer for face layer;

Concrete plant SUMAB SVEMLO 700:(//tractor-service.com)
Bunkers of inert materials
Bunker for gravel storage - capacity 8m3
Bunker for sand storage - capacity 8m3
Electric motor-vibrator, which facilitates the supply of aggregate.
Conveyor for feeding inert materials to the mixer
Length 6m
Motor 1.5 kW (380 V)
The PLC controls the volumetric dosing.

Mixer of vertical type 700 l;
The walls and bottom are covered with armor;
Hydraulic opening control;
Dosage of water and supplements;

Usable volume: 500 liters
Rotation speed: 32 rpm.
Electric motor: 22 kW (380V)
Dimensions: 2.10 x 2.30 x 2.60 m
Weight: 2700 kg.

Cement weight - 300 kg.
The flow maintained by the compressor.

Cement feed auger
Length: 5.6 m; motor 2.2 kW, diameter 139 mm
Feeding cement into the mixer

Conveyor belt for feeding concrete
Length 6 m
Motor 1.5 kW (380 V)
Moves concrete from the mixer to the hopper of the machine.

Cabin with PLC control panel - Mitsubishi PLC;
- possibility of automatic or manual control;
Productivity: 6 m3/h

Cementsilo for concrete plant
- Capacity: 24 m3

-The silo is equipped with a pressure relief valve, a low volume indicator and a fluidizer.
- internal diameter 2500 mm;
- The height of the cylindrical shell is 4500 mm;
- The height of the conical bottom is 1700 mm;
- overall height, incl. railing 8700 mm.
