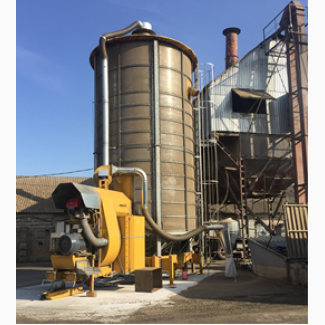

New mobile grain dryer MECMAR F 75/570 F, Kyiv region.

Drying chamber capacity ( m3 ), perforation 2.5 or 1.5 mm
97
Capacity of the drying chamber (t)
75
Cylinder type
Fixed
Diameter of the working cylinder, m
4.50
Height of the cylinder in the working position, m (with/without aspiration)
11.05/11.5
Unloading height, m
8.1
Riello three-stage burner
DT/Gas
Burner power range kW
710-3560
DT fuel consumption, l/t/%, gas m3/t/%
1.1
The volume of the fuel tank, l
1000
Electric motor power (kW/hp)
75+45
Fan capacity, m3/hour taking into account the resistance of the grain column
110,000
Weight, kg
15 100
Loading auger, mm(//tractor-service.com)
300
Central screw, mm
457
Wheat onwheat - from 19% to 14%, t/day
550
Pr-ty oncorn - from 25% to 14%, t/day
390
Oil on rapeseed - from 14% to 8%, t/day
334
Pr-t onsunflower - from 14% to 8%, t/day
228
Loading / unloading time, min.
40/40
Drying time from 19 to 14%, h (with removal of 5% moisture)
1.33
Maximum cooling time, h
1.0
Petal protection
+
Additional lubrication of the central screw
+
Options:
Aspiration system with a cyclone
PVC roof
Head of installation and commissioning
included
*- performance data are based on the calculation of round-the-clock operation of the equipment at an ambient temperature of +15/20 C.
Standard warranty - 2 YEARS from the date of commissioning.
