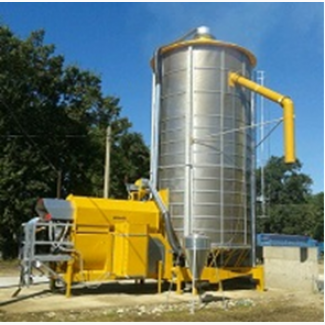

New mobile grain dryer MECMAR S 55/420 F, Kyiv region.

Drying chamber capacity ( m3 ) 75
Capacity of the drying chamber (t) 56
Cylinder type Fixed
Diameter of the working cylinder, m 3.85
Height of the cylinder in the working position, m (with/without aspiration) 9.66/10.9
Unloading height, m 7.79
Weight, kg 11,000
Loading auger, mm 300
Central screw, mm 450
Riello three-stage burner ondiesel fuel RL250
Burner power range kW 600-2700(//tractor-service.com)
DT consumption, l/t/% 1.1-1.2
Fan capacity, m3/hour taking into account the back resistance of grain 100,000
Electric motor power (kW/hp) 55+45
Productivitycorn – from 25% to 14%, t/day 280
Wheat productivity - from 19% to 14%, t/day 420
Rapeseed productivity - from 14% to 8%, t/day 225
Productivity forsunflower – from 14% to 8%, t/day 170
Time of loading / unloading, min 40/40
Drying time from 19 to 14%, h (when removing 5% moisture) 1.2
Maximum cooling time, h 1.0
Fuel tank capacity, l 1000
