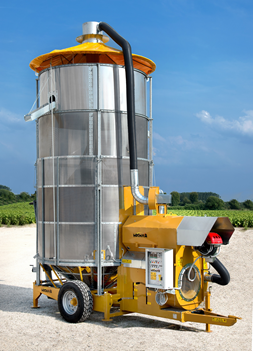

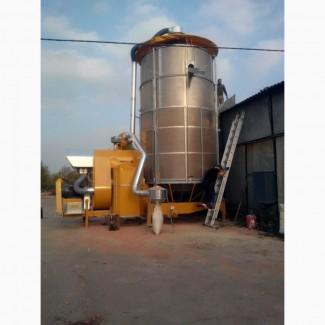

New mobile grain dryer MECMAR SSI 28/230 T2, Kyiv region.

Drying chamber capacity (m3)
38
Capacity of the drying chamber (t)
28.5
Cylinder type
Telescope
Diameter of the working cylinder, m
3.15
Height of the cylinder in the transport position, m (without/with the pipe in an incline)
4.4/4.94
Height of the cylinder in the working position, m (with/without aspiration)
7.2/8.35
Unloading height (with tray), m
5.48
Weight, kg
6 740
Loading auger, mm
200
Central screw, mm
368
Riello two-stage burner ondiesel fuel
RL 130
Burner power range kW
486-1540
DT consumption, l/t /%
1.0
Fan capacity, m3/hour
55,000
Electric drive power, kW
55(//tractor-service.com)
Maize productivity - from 25% to 14%, t/day.
161
Wheat productivity - from 19% to 14%, t/day
233
Rapeseed productivity - from 14% to 8%, t/day
137
Productivity forsunflower – from 14% to 8%, t/day
90
Loading / unloading time, min.
28/28
Drying time from 19 to 14%, t/h (when 5% moisture is removed)
1.11
Maximum cooling time, h
1.0
Fuel tank capacity, l
1000
Petal protection
+
Additional lubrication of the central screw
+
Aspiration system with cyclone
+
PVC roof
+
Assembly, installation, start-up and personnel training
+
Perforation Ø 2.5, separate electric drive (4 electric motors), diesel burner
+
Declared prices are in euros, on the terms of DDP-Kyiv, machines and components are tested at the factory and loaded into transport. The cost of assembly, launch and testing at the customer is not included. Small dryers are shipped disassembled in two large parts, large dryers are delivered disassembled in prefabricated parts. If it is necessary to dismantle the assembled dryer, the cost of dismantling is paid by the importer. The productivity of dryers is calculated taking into account the volume in cubic meters and the reference specificweight 0.75 g/cm3. The volume of the dryer is calculated taking into account the ridge on the upper part of the dryer with an angle of 30°. The volume of grain transported by the auger is 50% of the free volume. Characteristics of standard electrical equipment installed on serial dryers - 400 V, 50 Hz. If the voltage and frequency are different from the standard, please contact the MECMAR factory to estimate the additional cost of the motor winding and change the control panel components.
