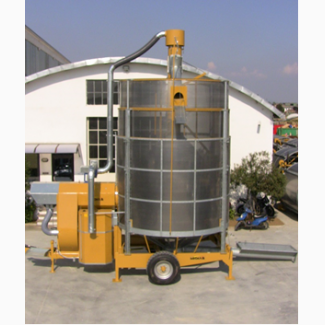

New mobile grain dryer MECMAR S 34/263 F, Kyiv region.

Drying chamber capacity ( m3 ) 44.3
Capacity of the drying chamber (t) 33.2
Cylinder type Fixed
Diameter of the working cylinder, m 3.85
Height of the cylinder in the transport position, m (without/with the pipe at an angle) 6.38
Height of the cylinder in the working position, m (without/with aspiration) 6.38/7.79
Loading height (with tray), m 4.55
Weight, kg 8,550
Loading auger, mm 300
Central screw, mm 457
Riello two-stage burner on diesel fuel RL130(//tractor-service.com)
Burner power range, kW 486-1540
ConsumptionDP/, l/t/% 1.1
Productivity of the fan, m3/h, taking into account the back resistance of the grain 62,000
Electric drive power, kW 75
Productivity withcorn - from 25% to 14%, t/day 166
Productivity withwheat– from 19% to 14%, t/day 265
Productivity withrape– from 14% to 8%, t/day 133
Productivity from sunflower – from 14% to 8%, t/day 100
Loading/unloading time, min 34/34
Drying time from 19 to 14%, t/h (with removal of 5% moisture) 1.2
Maximum cooling time, h 1.0
Fuel tank capacity l 1000
