Mobile crusher Polygonmach JT-1, 60-80 t/h, Turkey, Kyiv

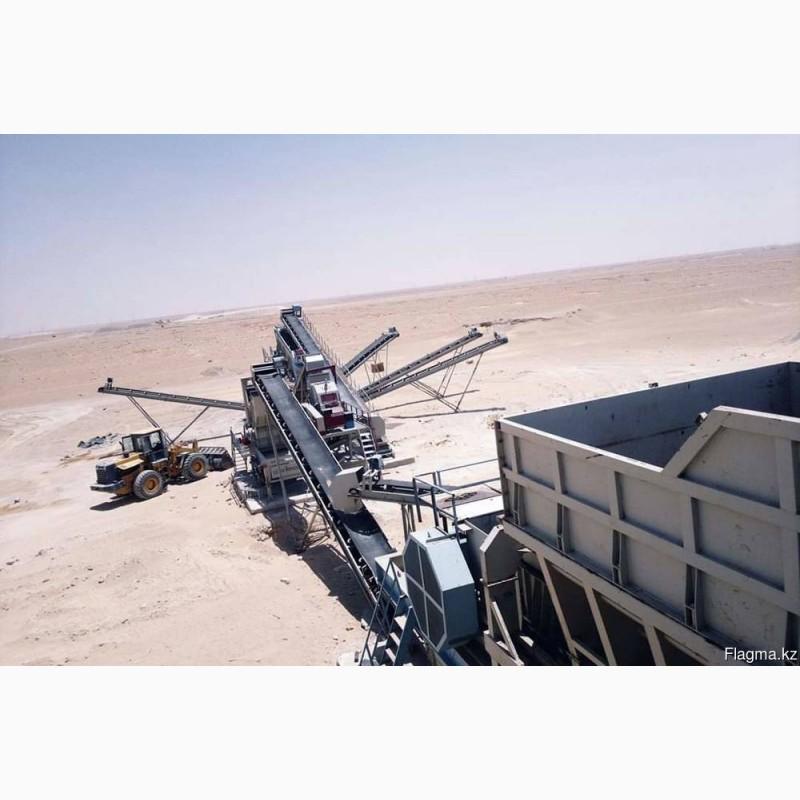

Mobile crushing and sorting plant Polygonmach T-1 is used for processing materials with a medium degree of hardness, such as limestone, river stone, dolomite, etc.

T-1 is the result of sophisticated engineering and advanced design, high-quality components with durable and excellent craftsmanship.

Loading hopper with vibrating feeder

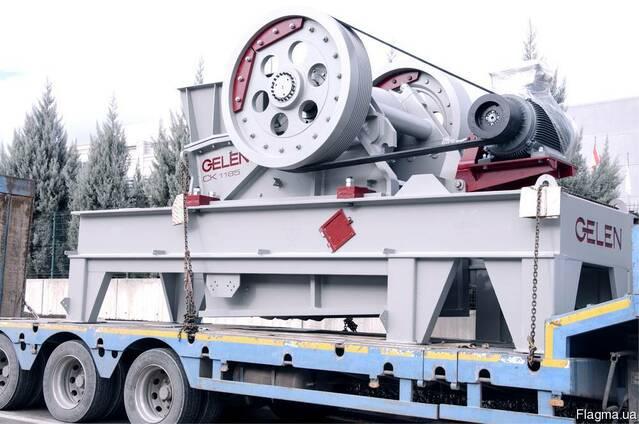

CC-60 Primary Jaw Crusher

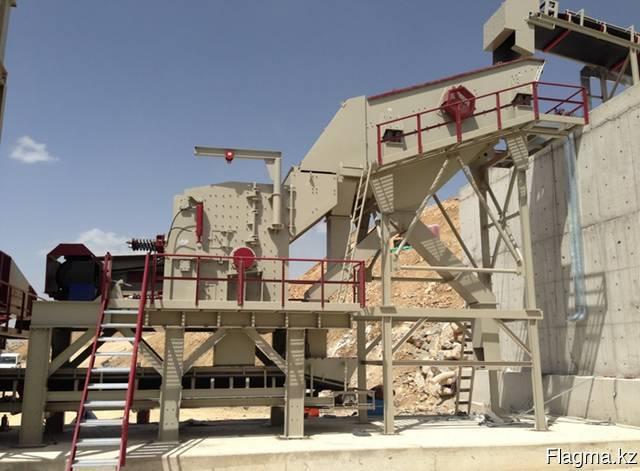

CC-1275 Tertiary impact crusher
Bypass conveyor (for soil extraction)

Feed conveyor between a jaw crusher and a vibrating screen
Thrown out with 3 levels.

Feedback conveyor from the vibrating screen to the tertiary impact crusher

Folding conveyors
Wheeled mobile chassis with hydraulic supports

Automation system with PLC and remote control.
Dust removal system

Diesel electric generator set (option)

T-1 Production capacity varies from 60 to 80 tons per hour depending on the level of hardness of crushed stones.

The maximum size of the feed material is 600 x 350 mm.

Thanks to the special design of the tertiary impact crusher in the system, the resulting final fractions have an excellent cubic shape, which is the desired result, especially for the production of concrete.

You can get 3 or 4 different factions at the same time.

If necessary, it is possible to adapt the electric generator to the installation chassis.

T-1 is a convenient combination that makes installation / assembly simple. The plant can be put into operation in a very short time. If necessary, it is possible to provide a loading hopper and conveyors with a hydraulic opening mechanism, and in this case the plant can be started without the need to use any external equipment, such as a crane,loader etc.

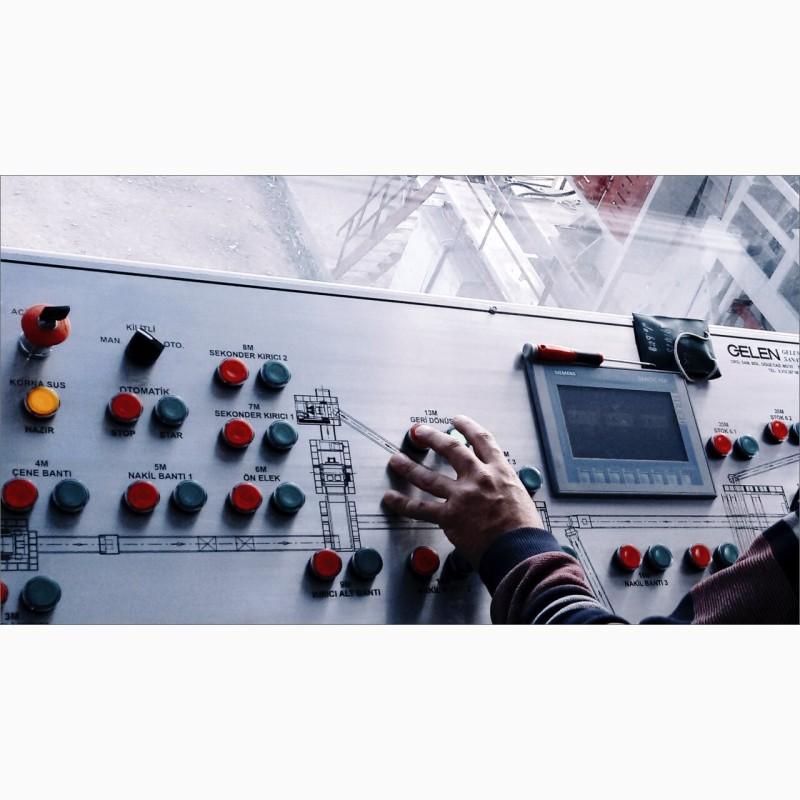

T-1 is equipped with a high-tech automation system, which includes electronic components and a SIEMENS-SCHNEIDER class PLC.
T-1 works only through the tablet controller.(//tractor-service.com)

The overall dimensions of our mobile units are determined in accordance with international road transport regulations, and the JT-1 is easily transported between workplaces with only one tractor.

You can view the general layout, transportation information and photos of the JT-1 mobile crushing plant by clicking on the relevant tabs, and you can request a quote.

Production capacity 60-80 t / h

The maximum loading size is 550 x 300 mm

Loading height 3.8 meters

Basic configuration

Primary jaw crusher + secondary cone crusher + 3-level screen

The total power of the engine is 230 kW

Requirements forelectric generator 350 kVA

The weight of the plant is 46 tons.

Plant dimensions 16 (L) x 3.2 (W) x 4.2 (L) meters

Chassis type

Single chassis on wheels, equipped with hydraulically opening legs.

Warranty 24 months.

The manufacturer carries out chief installation and personnel training.
