Mobile crusher Polygonmach T-75, 60-80 t/h, Turkey, Kyiv

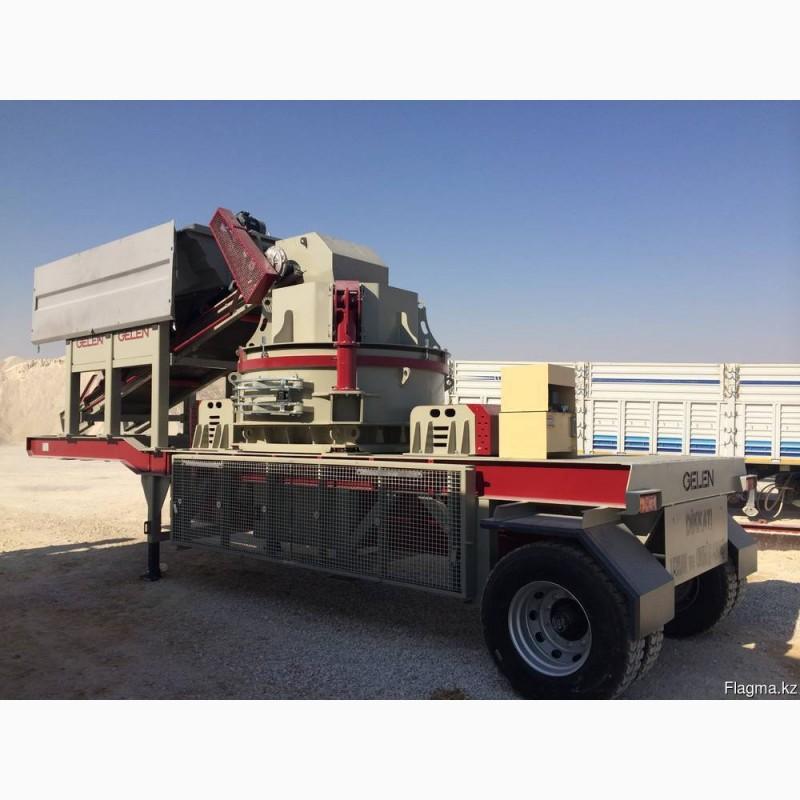

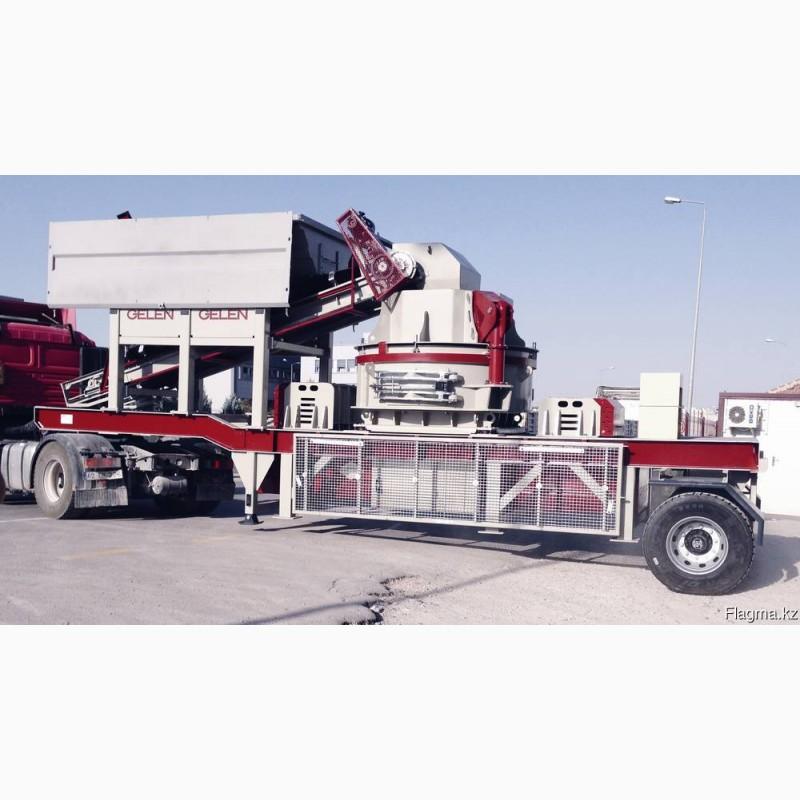

Mobile crushing and sorting plant Polygonmach T-75 is also called MOBILE SAND MAKING MACHINE - this is an ideal solution for the production of very fine material, also known as sand, with a particle size of 0 up to 5 mm and excellent cubic shape. The T-75 is the result of advanced design and development, superior quality components with a long service life and excellent craftsmanship.

In addition to materials that are provided by preliminary crushing in primary and secondary crushing operations, it is also possible to directly supply the system with natural stone, which does not exceed 150 mm.

All types of materials with different levels of hardness, such as granite, basalt, dolomite, gabbro, limestone, etc., can be processed by T-75 with satisfactory results.

The production capacity of the T-75 mobile sand production machine varies from 60 to 80 t/h depending on the hardness level of the ground material. In addition to 0-5 mm sand, up to 3 different fractions can be obtained at the same time.

Loading hopper with vibrating feeder
CTC-1275 Tertiary impact crusher

Feeding conveyors
Discarded with 3 decks
Feedback conveyor
Stock conveyors

Mobile chassis with hydraulic legs
Automation system with PLC and remote control.
Dust removal system

Electric generator (optional)
If necessary, it is possible to installdiesel-electrical generator installed on the chassis of the installation.

T-75 is a convenient system that offers its users convenient installation / assembly functions. The system can be put into operation just a few hours after arriving at the work site. If requested, the lids of loading hoppers and conveyors can be equipped with a hydraulic opening mechanism, and in this case the whole system can be put into working position without any external equipment.

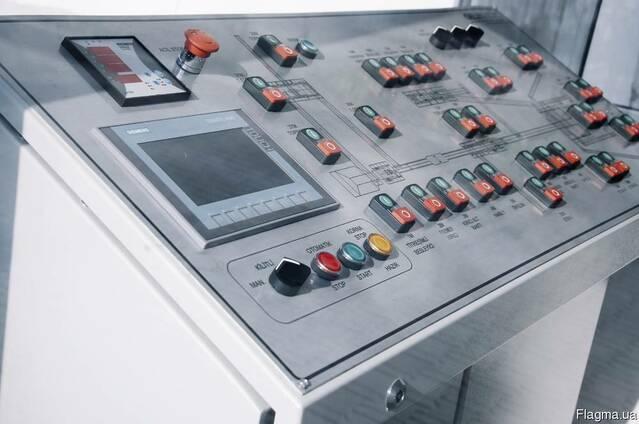

The T-75 is equipped with a high-tech automation system, which includes electronic components and a high-class SIEMENS-SCHNEIDER PLC. The T-75 is controlled only by the tablet controller.

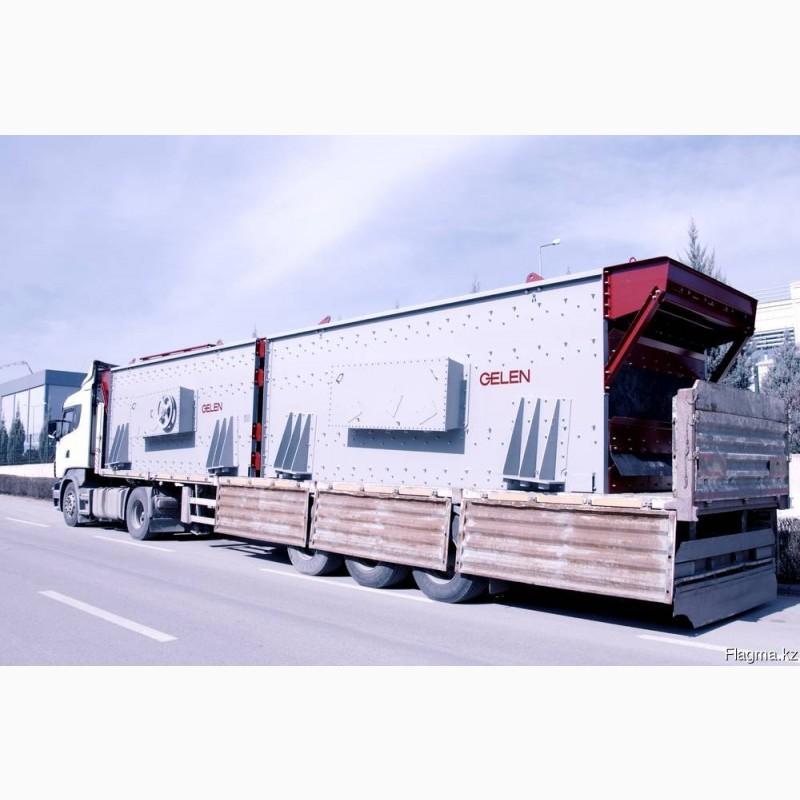

The overall dimensions of the installation are specified in accordance with the international rules of road transport, and the installation can be moved only by one tractor, which is easily connected between different workplaces.

You can see the general plan, transportation information and photos of our T-75 by clicking on the appropriate tabs, and you can request an offer.

Production capacity 60-80 t / h(//tractor-service.com)

The maximum loading size is 150 mm

Loading height  3.8 meters

Basic configuration

Tertiary impact + 3 screens

The total power of the engine is 160 kW

Requirements forelectric generator 400 kVA

The weight of the plant is 32 tons

Plant dimensions 14 (L) x 3.2 (W) x 4.2 (L) meters

Chassis type

Single chassis on wheels, equipped with hydraulic opening legs.

Warranty 24 months.

Delivery of equipment to any region or country.

The manufacturer carries out chief installation and personnel training.

To receive a commercial offer, please send a request to our e-mail.

The official representative of the manufacturer - the Turkish company Polygonmach offers high-quality equipment at minimal prices and convenient delivery conditions.
