Mobile crusher Polygonmach JS-2, 120-150 t/h, Turkey, Kyiv

Mobile crushing plant Polygonmach JS-2 is an ideal solution for crushing materials with a low average content of solids, such as limestone, river stone, dolomite, basalt, etc. D.

JS-2 is the result of advanced design and development, using the highest quality components with durable and excellent craftsmanship.

Loading hopper with vibrating feeder

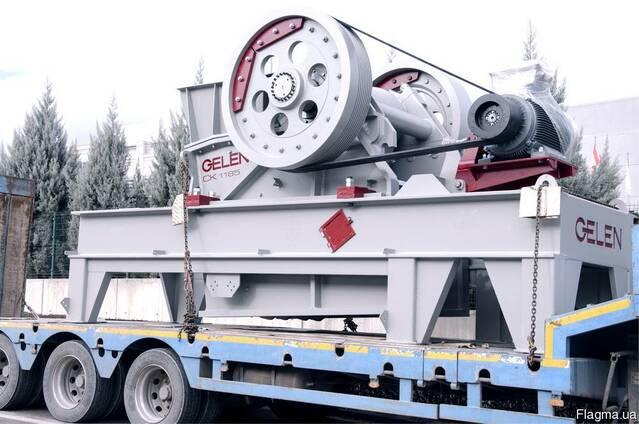

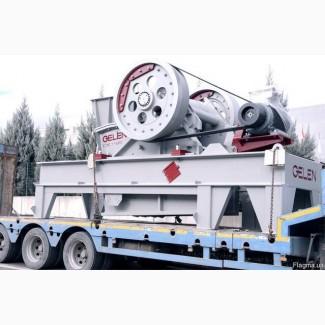

Primary jaw crusher JC-90

CI-1212 Secondary impact crusher
Bypass conveyor (for soil extraction)
Feed conveyor between a jaw crusher and a vibrating screen

Discarded with 3 or 4 decks
Feedback conveyor from the vibrating screen to the impact crusher

Folding conveyors

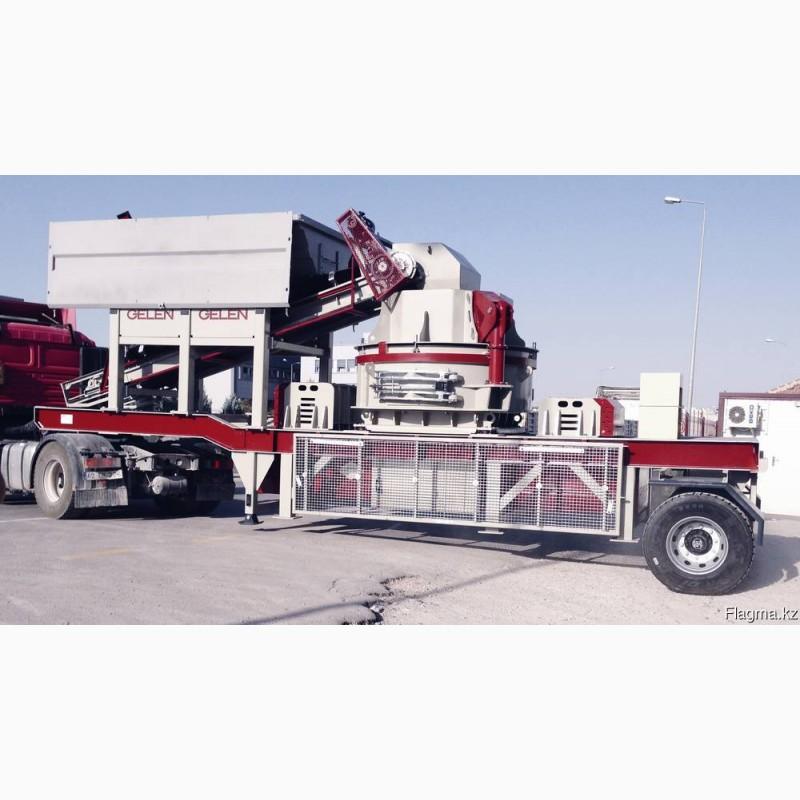

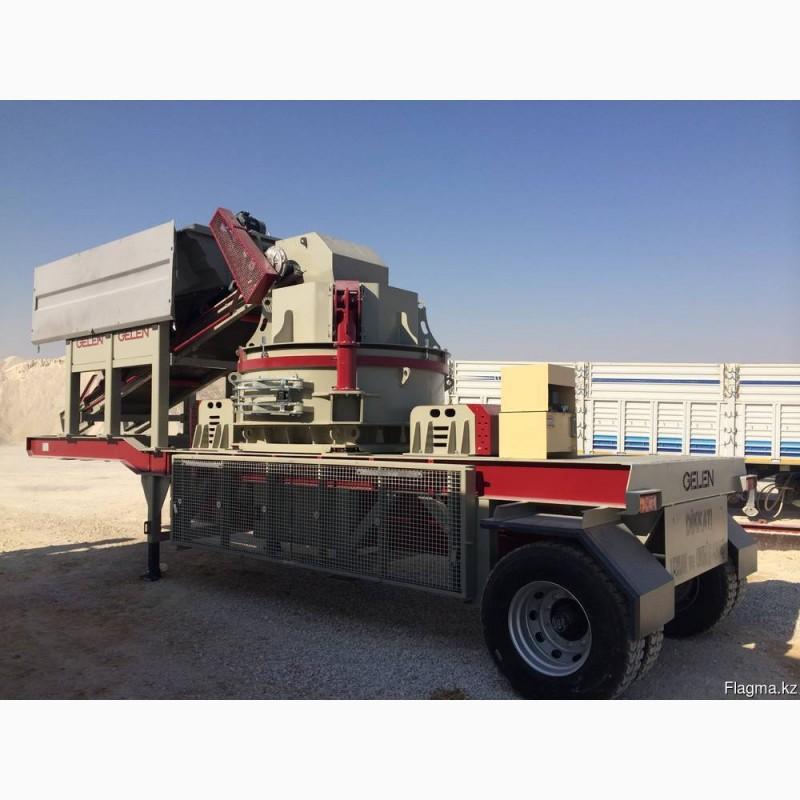

Wheeled mobile chassis with hydraulic supports (options with one or two chassis are available)

Automation system with PLC and remote control

Dust removal system
Diesel electric generator set (option)

The production capacity of JS-2 varies from 120 to 150 t/h depending on the degree of hardness of the crushed material.

The maximum size of the feed material is 850 x 600 mm.

Thanks to the special design of the secondary impact crusher, the final materials obtained have a satisfactory ratio of fine materials, as well as an excellent cubic shape, which is a desirable result, especially for the production of concrete.

You can get 3 or 4 different factions at the same time.

If necessary, it is possible to adapt the electric generator to the installation chassis.

JS-2 is a convenient combination that makes installation / assembly simple. The plant can be put into operation in a very short time. If necessary, it is possible to provide a loading hopper and conveyors with a hydraulic opening mechanism, and in this case the plant can be started without the need to use any external equipment, such as a crane,loader etc.

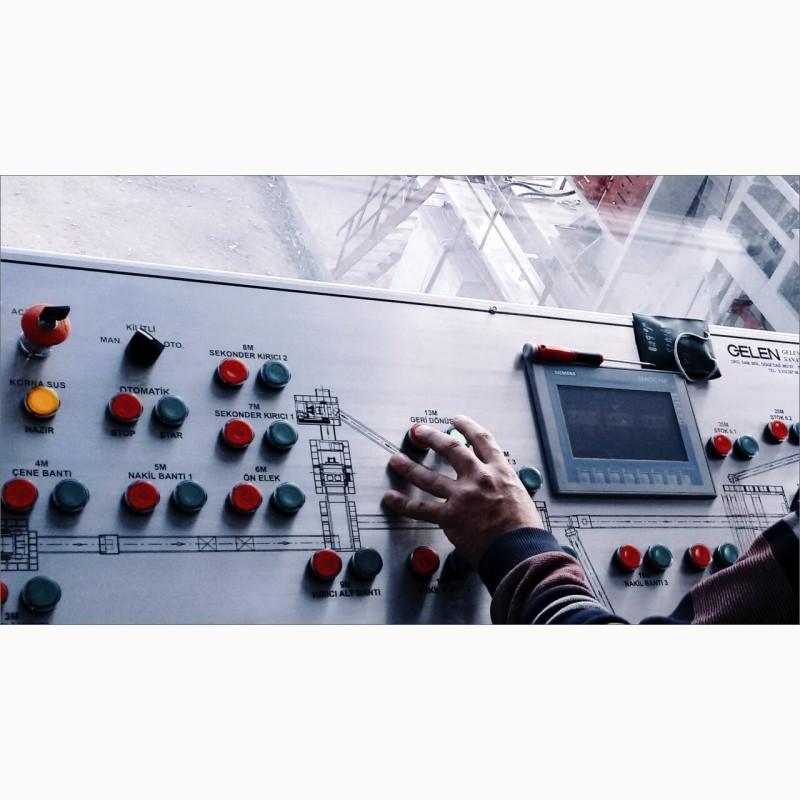

JS-2 is equipped with a high-tech automation system, which includes electronic components and a high-class SIEMENS-SCHNEIDER PLC. JS-2 is controlled only by the tablet controller.

The overall dimensions of the JS-2 are determined in accordance with international road transport regulations, and it is easily transported between workplaces.(//tractor-service.com)

You can view the general plan, transportation information and photos of the JS-2 mobile crushing plant.

Production capacity 120-150 t / h

The maximum feed size is 850 x 600 mm

Loading height  4.2 meters

Basic configuration

Primary jaw crusher + secondary impact + 3-level screen

The total power of the engine is 420 kW

Requirements forelectric generator 650 kVA

The weight of the plant is 56 tons

Plant dimensions: 18 (L) x 3.2 (W) x 4.2 (H) meters

Chassis type

Single chassis on wheels, equipped with hydraulic opening legs.

Warranty 24 months.

The official representative of the producer company offers minimal factory prices.

Delivery of equipment to any region or country.

The manufacturer carries out chief installation and personnel training.
