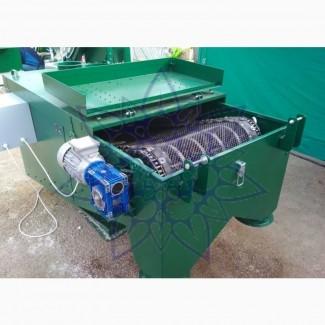

A unit for preliminary cleaning of grain APO-50, perfect result, Kharkiv region.

Reliable grain cleaning equipment!
The productivity of wheat grain is 10-50 tons per hour.
APO-50 is installed on grain separators with a capacity of 10 to 50 tons per hour, working in tandem, the complex produces the highest quality result.
Standard parameters:
- mass 500 kg.,
- length 2200 mm.,
- width 1300 mm.,
- height 1150 mm.
A motor-reducer is installed for the operation of the unit. Under the conditions of operation of the unit with clogged material of sunflower seeds, the productivity of the unit is from 10 to 15 tons per hour. The selection of sieves depends on the degree of contamination. The mesh sizes of the sieve are 8, 10, 12, 14, 16 mm.
According to productivity, it is necessary to supply the material in the same volume.

It is possible to manufacture aggregates according to your dimensions, with a capacity of up to 50 tons per hour!
The highest quality of Ukraine!
Production andwarehouse of finished products in Kharkiv.

Video APO-5:
https://youtu.be/CqOwCpm8f8U
*
Video APO-50:
https://youtu.be/VkxC7yRTDyw
*
Video APO grain preliminary cleaning unit:
https://youtu.be/vdA2w1B1PcY
*
Video ISM-5Grain separator:
https://youtu.be/MuiW7pcM5vI

ISM - impeller-separating machine;
TsOK - cyclone-sediment complex (a unit with one cyclone and two or three sedimentation chambers, designed to clean the air circulating in the separator from dust);
APO – pre-cleaning unit (recommended for heavily “clogged” seed material, works in tandem with ISM and SOK machines);
SOC - a self-moving cleaning complex, five in one (replaces ZAV).

Prices for March 2023, from now on - check by phone!
(//tractor-service.com)
- ISM-5, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 155 kg, dimensions l.2150/w.460/h.1750mm., 220V - c. 62,000 hryvnias, 380V - ts. 65,000 UAH.;
- ISM-5 TsOK, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 374kg., dimensions d.3200/w.1000/h.2000mm., 220V/380V - c. 132500 hryvnias.;

- ISM-10, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 165kg, dimensions d.2420/w.460/h.1880mm, 220V - c. UAH 72,000, 380V - UAH 75,000;
- ISM-10 TsOK, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 420kg, dimensions l.3400/w.1000/h.2100mm., 220V - c. UAH 97,000, 380 V - ts. UAH 139,400.;

- ISM-15, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 337kg, dimensions d.2310/w.650/h.2400mm., c. 125,000 UAH.;
- ISM-15 Tsok, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 685kg, dimensions d.4800/w.1150/h.2800mm.), c. 193500 UAH.;

- ISM-20, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 355kg, dimensions d.2300/w.650/h.2400mm.), price: UAH 138,500;
- ISM-20 TsOK, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 690kg, dimensions d.4800/w.1150/h.2800mm, c. UAH 206,800.;

- ISM-30, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 360kg, dimensions d.2310/w.650/h.2400mm., c. UAH 149,700.;
- ISM-30 TsOK, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 760kg, dimensions d.4800/w.1150/h.2800mm, c. UAH 225,400.;
- SOK-25 c. 520,000 UAH.;
- SOK-30 c. UAH 530,000;

- APO-5 (productivity 5 t/h) c. UAH 80,800;
- APO-50 (productivity from 10 to 50 t/h) c. UAH 162,000.

Additional equipment:
- mosquito net bag for ISM-5, ISM-10, etc. 600 UAH.;
- setwheels for ISM-5, ISM-10, ts. 700 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 2 trays, c. 750 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 3 trays, c. 850 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 4 trays, c. 960 UAH.;
- U-shaped connector for ISM-5, ISM-10 for all trays (2,3,4), etc. UAH 260;
- net (sieve) up to APO-5 (6,8,10,12,14 mm and more) c. 7080 UAH.;
- mesh (sieve) up to APO-50 (6,8,10,12,14 mm and more) c. UAH 13,500.;
- application of a rubber layer on the inner walls of the machine to protect the seeds of leguminous crops from splitting, c. 2000 UAH.;
- auger for ISM-5, ISM-10, ISM-5 Tsok, ISM-10 Tsok, c. UAH 51,200.

There is a state compensation program.
The price of the machines can be changed.
