Seed pre-cleaning unit, seed cleaning, machine, seed cleaning up to 50 t/h, Kharkiv region.

APO - Pre-cleaning unit intended for pre-cleaning and separation of large fractions from the general heap of grains,legumes, vegetable and melon crops, as well as all kinds of loose mixtures.

Characteristics.
- Productivity: up to 50 t/h
- Power consumption: 1 kW / h, 380 V
- Length: 2200 mm
- Width: 1300 mm
- Height: 1150 mm
- Weight: 500 kg

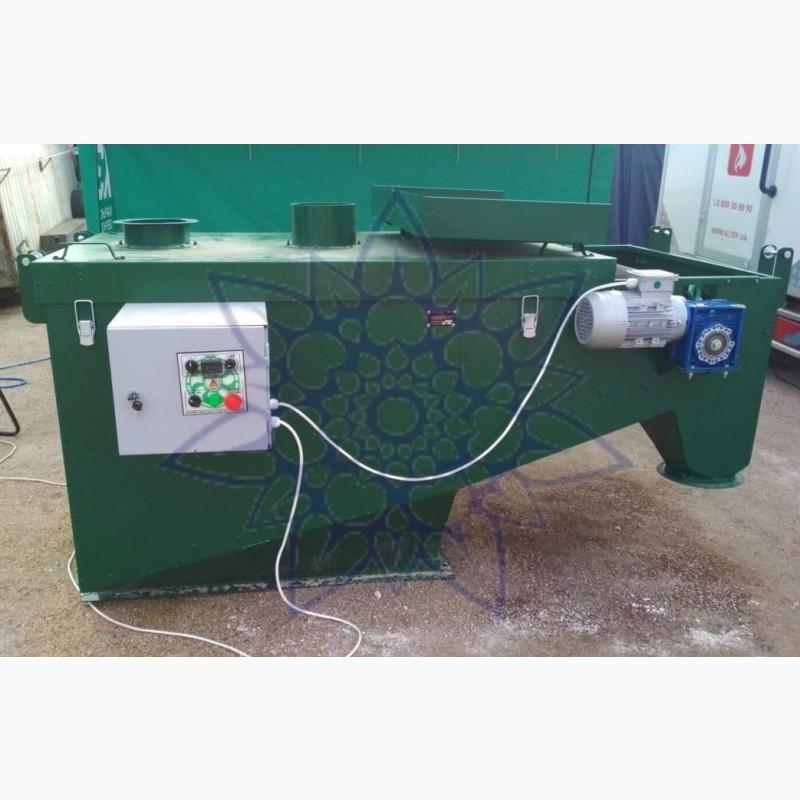

APO is a hopper with a rotating calibration grid installed in it. The grid is fixed on a removable frame and is set in motion with the help of a gear motor. Control of the speed of rotation is carried out by a frequency converter.

APO makes ISM separators universal equipment forgrain cleaning.
The operation of the unit is reduced to the size separation of the grain from the pile by shaking it through a wire mesh, the cells of which are of a certain size. First, the grain enters the lower part of the grid, after which it continues to move upwards until it falls down. Large garbage that has not passed through the mesh cells falls into the receiving funnels for the east in the waste hopper or in the cyclonic sedimentation chamber. Next, the grain enters the receiving hopper of the ISM separator, or the second receiving device for further transportation or processing. APO can work independently or together with the ISM separator.

The use of the pre-cleaning unit will allow you to achieve ideal results in cleaning grain with any weed in just one pass.

ISM-5, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 155 kg, dimensions l.2150/w.460/h.1750mm., 220V - c. 62,000 hryvnias, 380V - ts. UAH 65,000.;

ISM-10, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 165kg, dimensions d.2420/w.460/h.1880mm., 220V - c. UAH 72,000, 380V - UAH 75,000;

ISM-15, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 337kg, dimensions d.2310/w.650/h.2400mm., c. UAH 125,000; 185

ІСМ-20, очистка 20т/год, калібрування до 10т/год, 1,5-3кВт, 380В, 50Гц, вага 355кг., габарити д.2300/ш.650/в.2400мм.), ц.138500 грн.;

ISM-30, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 360kg, dimensions d.2310/w.650/h.2400mm, c. UAH 149,700.;

ISM-40, cleaning 40t/h, calibration up to 20t/h, 2.2-6.0kW, 380V, 50Hz, weight 710kg, dimensions d.2310/w.1150/h.2400mm., c. 183,000 UAH.;

ISM-50, cleaning 50t/h, calibration up to 25t/h, 2.2-7.0kW, 380V, 50Hz, weight 710kg., dimensions d.2310/w.1150/h.2400mm., c. 198,000 UAH.;

ISM-100, cleaning 100t/h, calibration up to 50t/h, 4.0-11.0kW, 380V, 50Hz, weight 860kg, dimensions d.3130/w.1750/h.3017mm., c. UAH 399,000; 195

ІСМ-5 ЦОК, очистка 5т/год, калібрування до 3т/год, 0,2-0,55кВт, 50Гц, вага 374кг., габарити д.3200/ш.1000/в.2000мм., 220В - ц. 88000 грн., 380В - ц. 91000 грн.;

ISM-10 Tsok, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 420kg, dimensions d.3400/w.1000/h.2100mm., 220V - c. UAH 97,000, 380 V - ts. UAH 100,000;(//tractor-service.com)

ISM-15 TsOK, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 685kg, dimensions d.4800/w.1150/h.2800mm.), c. UAH 193,500;

ISM-20 TsOK, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 690kg, dimensions d.4800/w.1150/h.2800mm, c. UAH 206,800;

ISM-30 TsOK, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 760kg., dimensions d.4800/w.1150/h.2800mm., c. UAH 225,400;

ISM-40 TsOK, cleaning 40t/h, calibration up to 20t/h, 2.2-6.0kW, 380V, 50Hz, weight 1100kg., dimensions d.4907/w.1574/h.2864mm., c. UAH 269,000;

ISM-50 TsOK, cleaning 50t/h, calibration up to 25t/h, 2.2-7.0kW, 380V, 50Hz, weight 1100kg., dimensions d.4907/w.1574/h.2864mm., c. UAH 290,300;

ISM-100 TsOK, cleaning 100t/h, calibration up to 50t/h, 2.2-7.0kW, 380V, 50Hz, weight 1600kg, dimensions l.6382/w.2250/h.3682mm., c. UAH 465,700;

SOC-25 c. UAH 520,000;

SOC-30 c. UAH 530,000;

APO-5 c. UAH 80,800.;

APO-50 c. UAH 162,000.

Additional equipment:
- mosquito net bag for ISM-5, ISM-10, etc. UAH 600.
- setwheels for ISM-5, ISM-10, c. UAH 700.
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 2 trays, c. UAH 750.
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 3 trays, c. UAH 850.
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 4 trays, c. UAH 960.
- U-shaped connector for ISM-5, ISM-10 for all trays (2,3,4), etc. UAH 260.
- net (sieve) up to APO-5 (6,8,10,12,14 mm. and more) c. UAH 6480.
- mesh (sieve) up to APO-50 (6,8,10,12,14 mm. and more) c. UAH 13,500.
- application of a rubber layer on the inner walls of the machine to protect the seeds of leguminous crops from splitting, c. UAH 2000.
- auger for ISM-5, ISM-10, ISM-5 Tsok, ISM-10 Tsok, c. UAH 51,200.

Prices for October 2022.

Follow this link to the official site and see and read more information about these machines:
https://ton.biz.ua/ism-impelerna-separuyucha-mashina/
