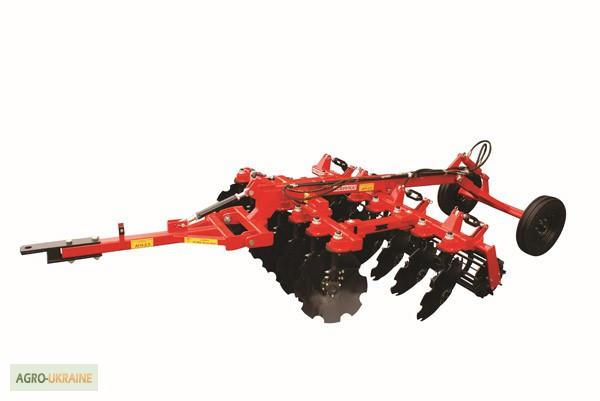

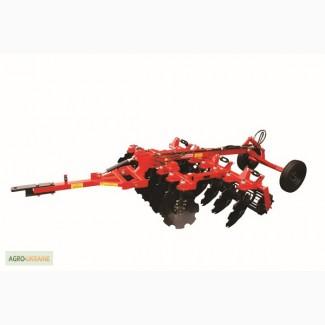

AGN-2.5 disc harrow, Dnipropetrovsk region.

Disk harrow AGN-2.5 harrow
The soil-cultivation unit with adjustable spacing is intended for basic and pre-sowing soil cultivation forgrains and technical crops. It is aggregated with tractors with a capacity of 80-100 hp.
Technical characteristics Наименование Значение
Gripping width, m 2.5
Productivity for 1 hour of the main time, ha/hour 2.0-2.5
Working speed, km/h 8-10
Processing depth, cm 8-20(//tractor-service.com)
Number of working bodies, units 14
Disc diameter, mm 640±10
Unit weight, kg 1770
Overall dimensions, mm: length 5500
width 2960
height 1565
Maximum powertractor, hp. 80-100
