I will sell a mounted disc harrow AGN-2, 5, Dnipropetrovsk region.

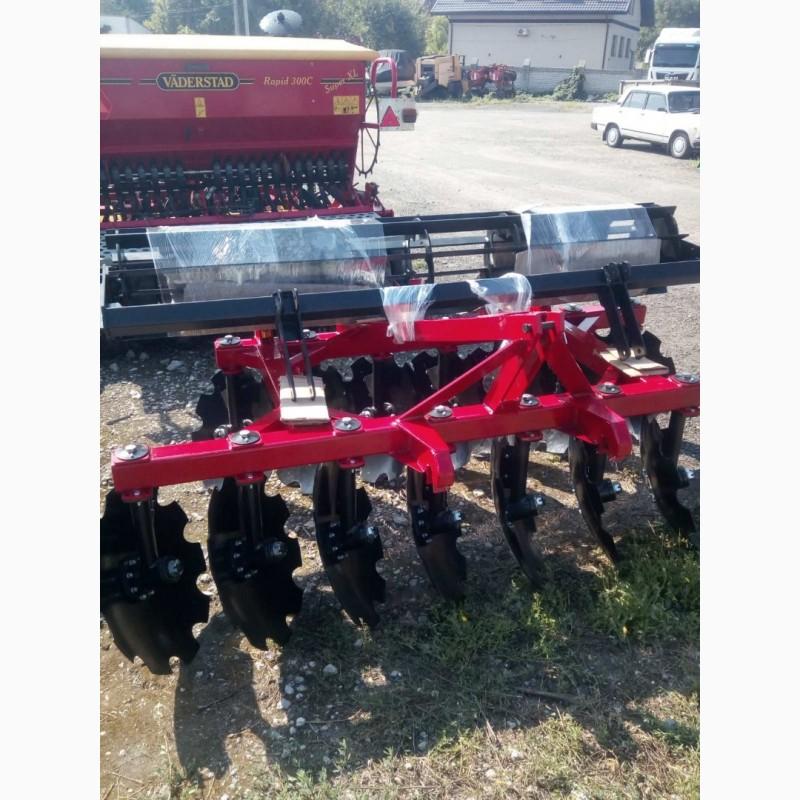

Disk harrow mounted ADN-2,5. Two-rowdisc harrow ADN-2.5 with discs on separate racks with a diameter of 660 mm and a strip roller

Design features of the ADN-2.5 mounted disk harrow
- the construction of the frame of the Harrow ADN-2.5 is strengthened in comparison with units of a similar type
- the rack of the working body is installed in the frame in a sleeve that protects the seat in the frame from deformations. In addition, in the place of installation of the rack in the frame, a guide is installed to avoid jamming during the change of the angle of attack of the disk;
- the rack of the working body, made of a circle with a diameter of 60 mm. reliably proven itself in work on clogged and dry soils;
- Quick-release method of removing disks;
- discs made of boron steel;
- adjustment of the angle of attack (3 positions);
- Powder coating.
- the following modernizations were made in the construction of the roller-chest roller, which rolls, for more efficient work:
- installed strips of 60x6 mm.;
- Brackets reinforced with stiffening ribsroller attachment;
The plant is sorting out the organization of delivery of equipment to the farm. The equipment comes with a passport with a 12-month warranty.(//tractor-service.com)
All constructive modernizations, aimed at improving the operation of the ADN-2.5 harrow, were carried out on the basis of practical experience, taking into account the recommendations of specialists of partner farms.
Technical characteristics:
The unit type is mounted.
Width of capture (m) 2.5
Fuel consumption (l/ha) 7.2-8.5
Productivity (ha/h) 1.8-2.2
Depth of soil treatment (cm) 8-18
Working speed (km/h) 8-12
Transport speed (km/h), slightly more than 20
Weight of the unit, kg. 820
Length (mm) 2300
Width (mm) 2800
Height (mm) 1300
Ground clearance (mm) 300
It is aggregated with tractors with a power of at least (l/s) MTZ-80/82/100/102
