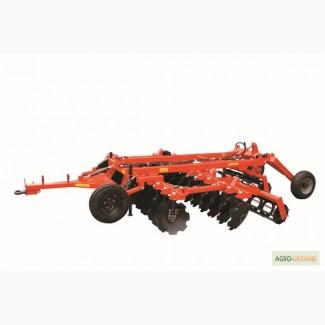

Disk harrow AGN-4.2, Dnipropetrovsk region.

Disk machine AGN-4.2 harrow
intended for soil preparation forseeding of grains and industrial crops by loosening the field surface to a given depth with specific soil resistance up to 0.9 kgf/cm2, hardness of 35 kgf/cm2 (3.5 MPa) and humidity up to 27%.
Constructive features of aggregates of AGN:
• The adjustable inter-tracking of adjacent discs ensures the minimum height of the ridges at the bottom of the furrow and the uniformity of the processing depth;
• Adjustable angle of attack of disks;
• Convenient bearing replacement system;
• Disc from wear-resistant boron-containing steel;
• Stepless adjustment of processing depth. Technical characteristics
Unit type semi-mounted
Width of capture (m) 4.2
Productivity (ha/hour) 3.0 - 4.2(//tractor-service.com)
Working speed (km/h) 8 - 10
Processing depth (cm) 10 - 20
Angle of attack of disks (degrees) 16...20...24
Number of working bodies (pieces) 24
Diameter of the disk of the working body (mm) 640
Transport speed, no more (km/h) 20
Dimensions (in transport position)
Length (mm) 6000
Width (mm) 4300
Height (mm) 1710
Mass of the unit (kg) 3500 Required powertractor (hp) 170 – 220
