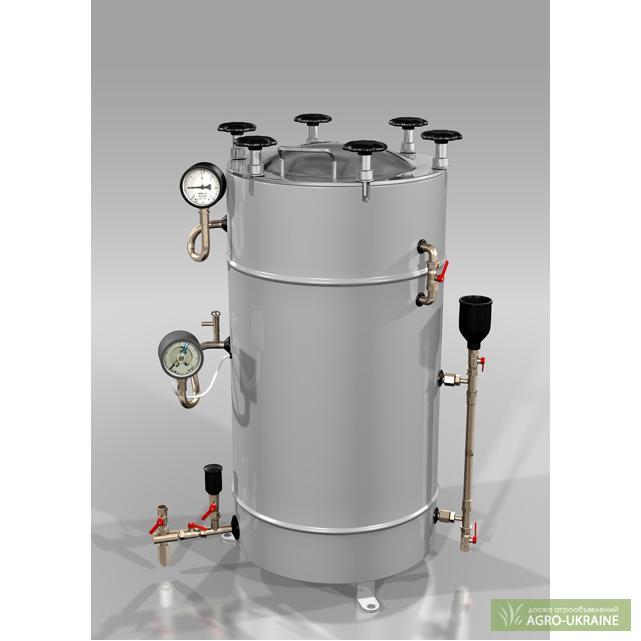

Steam sterilizer VK-75-01, Poltava region.

Steam sterilizer VK-75-01. For sterilization with water saturated steam under pressure of materials, tools and accessories.
Steam semi-automatic sterilizer VK-75-01 with vacuum drying, economical, easy and convenient to operate, safe for the environment. It is intended for sterilization with water-saturated steam under pressure of medical products made of metals, glass, rubber, textile products, the effect of steam on which does not cause changes in their functional properties.
It is used in treatment and prevention and other medical facilities, laboratories.
Note:
To prevent the formation of scale, to increase the efficiency of operation of thesterilizer, it is necessary to use distilled water.

Main technical characteristics
The height of the sterilizer, mm — 1070
The width of the sterilizer, mm — 570
The length of the sterilizer, mm — 740
The diameter of the wiper cameras, mm — 400
Wipe depth cameras, mm — 630
Erase volume cameras, dm3 — 75
Voltage, V — 380
Nominal power, kW — 6
Mass, kg — 80
Управление полуавтоматическое
Sterilization modes: 1 mode (tC-min. ) 0.2 MPa — 132-20
2 mode (tC-min. ) 0.11 MPa — 120-45
(//tractor-service.com)
Features:

Economical, simple and easy to use;
Safe for the environment;
The cover, steam jacket and main components are made of high-alloy stainless steel;
Sterilization chamber made of high-alloy stainless steel of the stainless steel brand. steel 10Х17Н13М2Т (AISI 316Ti); 170
Камера имеет форму цилиндра и расположена вертикально;
Built-in steam generator;
Manually pouring water into the steam generator;
Semi-automatic control;
Heating time — no more than 30 minutes. ;
Preliminary removal of air from the chamber — by the method of gravity purging;
Vacuum drying with the help of an ejector, depth of vacuum — not less than —0.07 MPa;
Filter for bacterial purification of air entering the chamber at the stage of pressure equalization.
The average working time per failure is at least 3000 cycles;
Service life — 10 years.

Security system:

Shutdown of thermal power plants when the water level drops in thesteam generator;
Protective device against overpressure in a steam generator.
