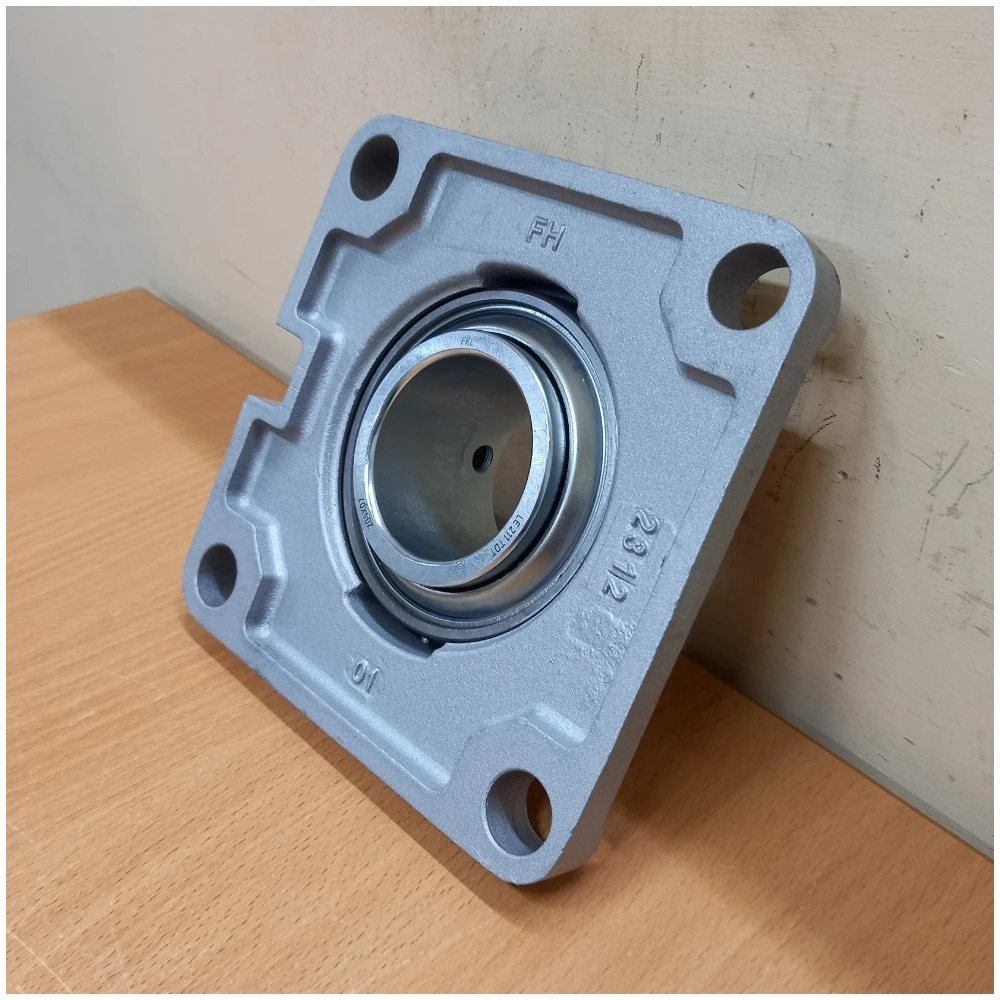

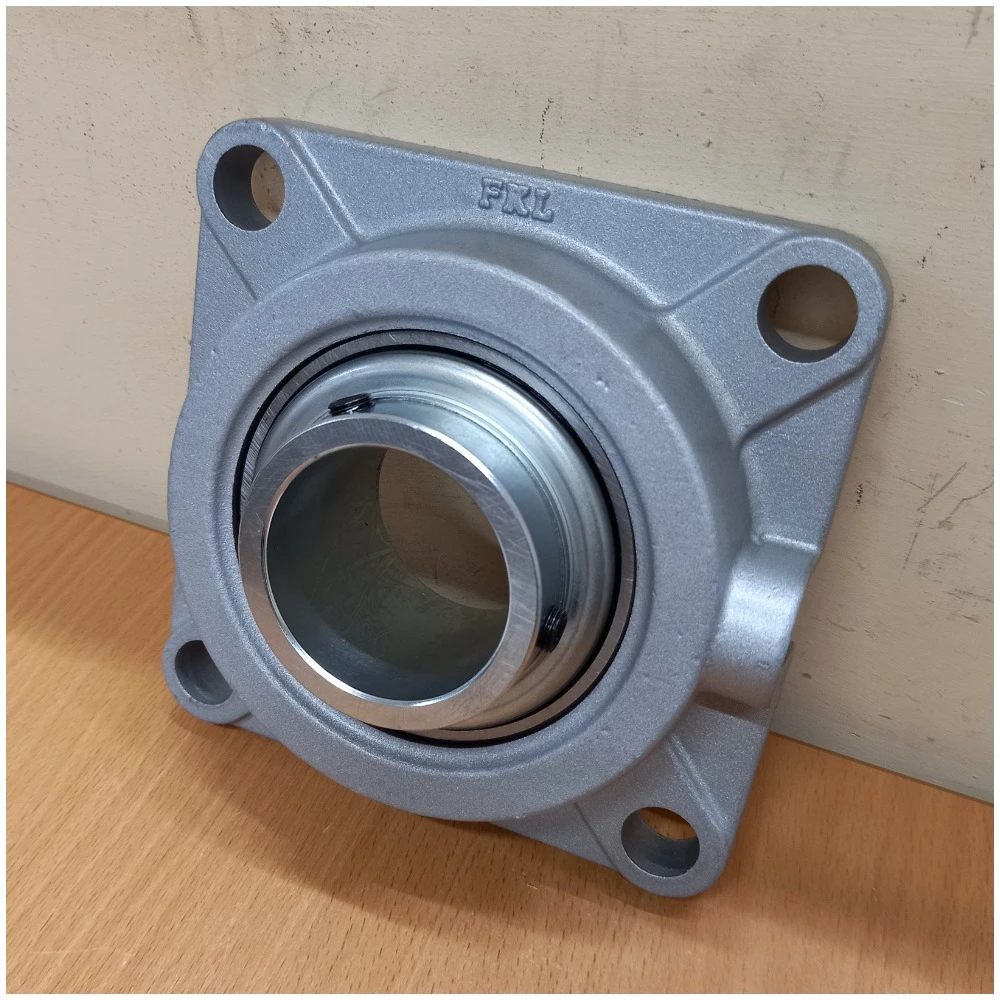

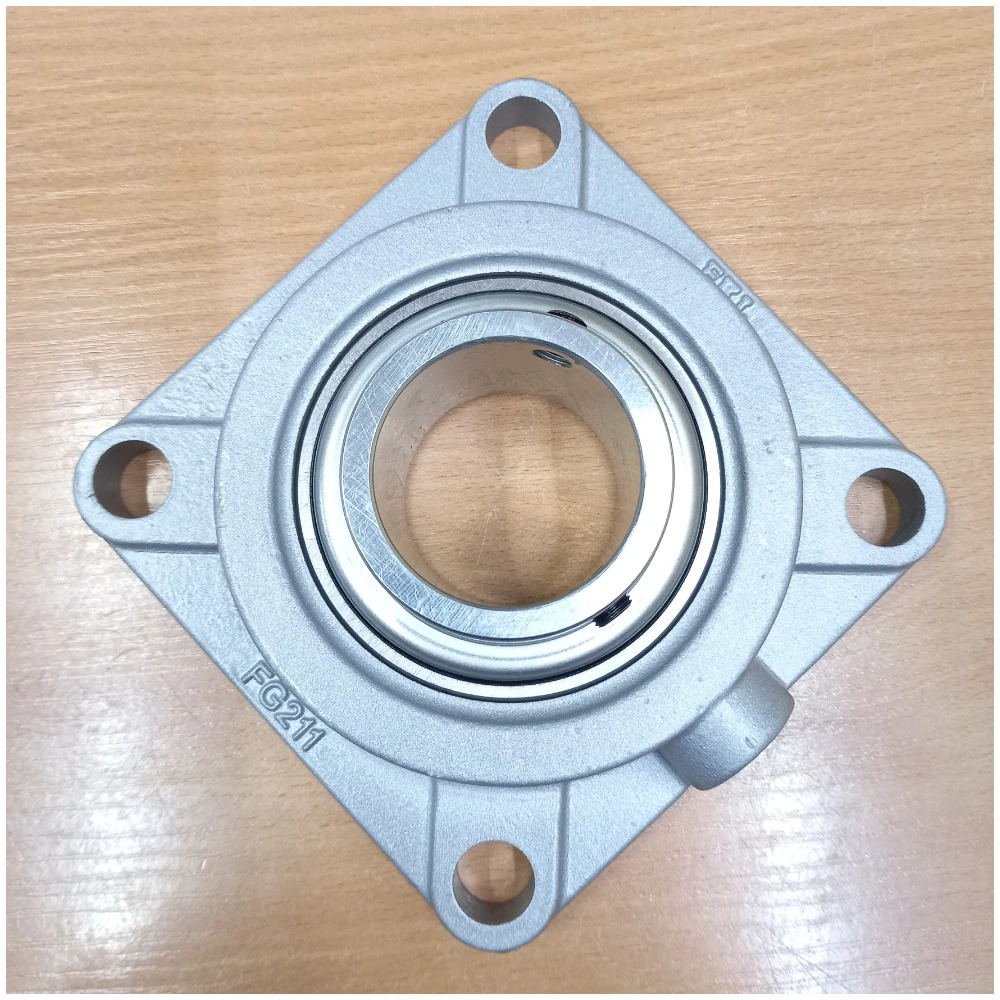

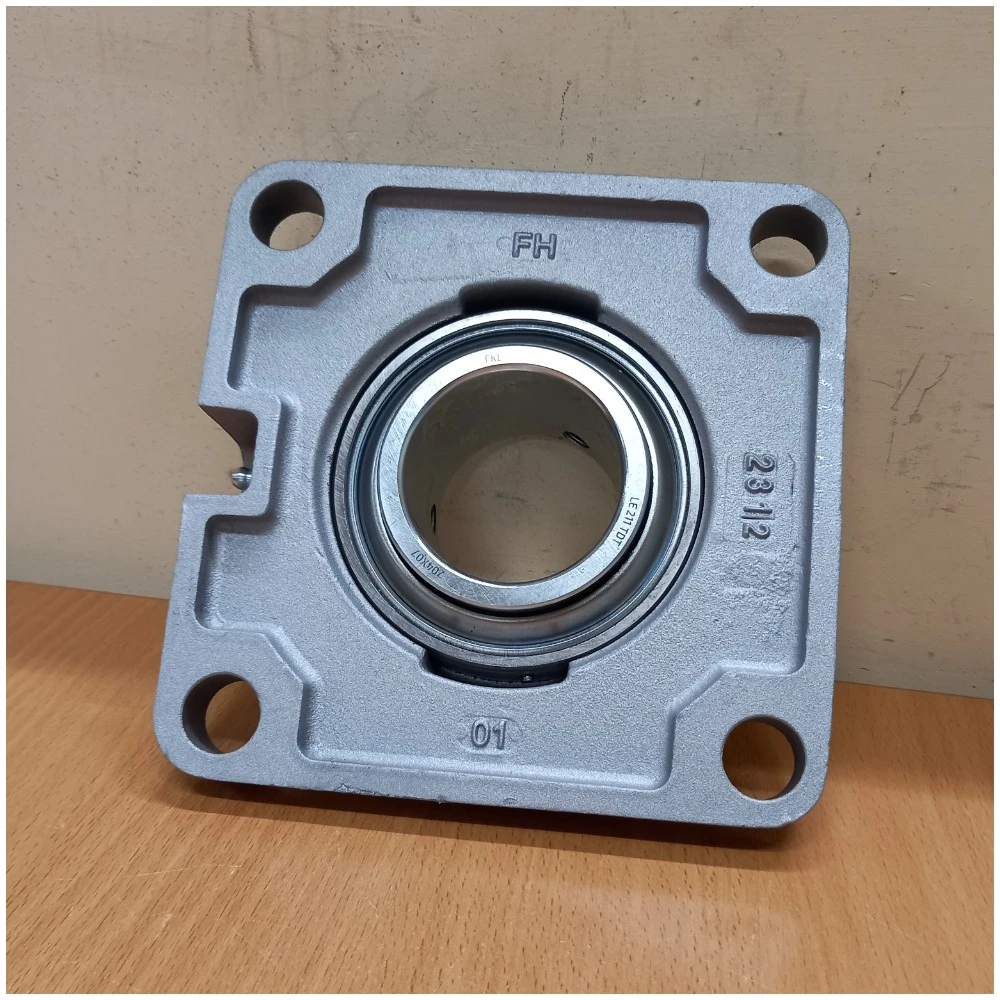

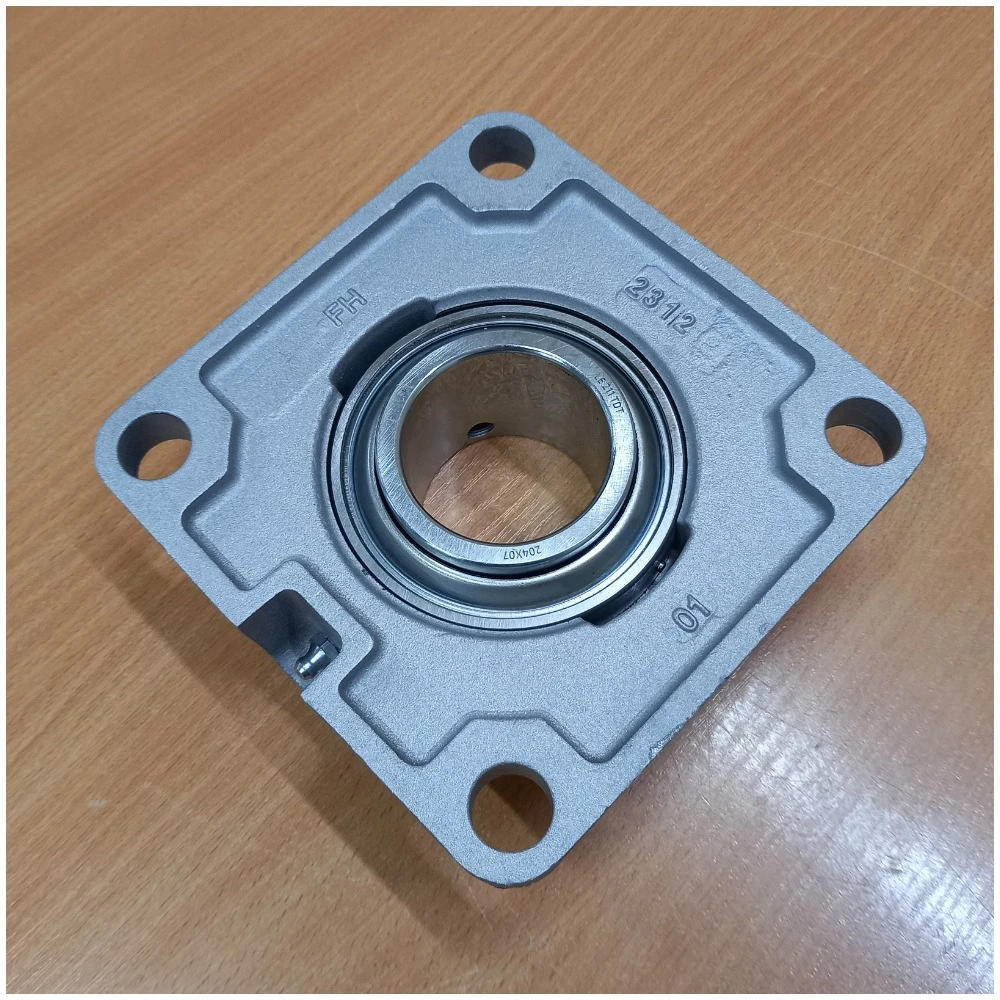

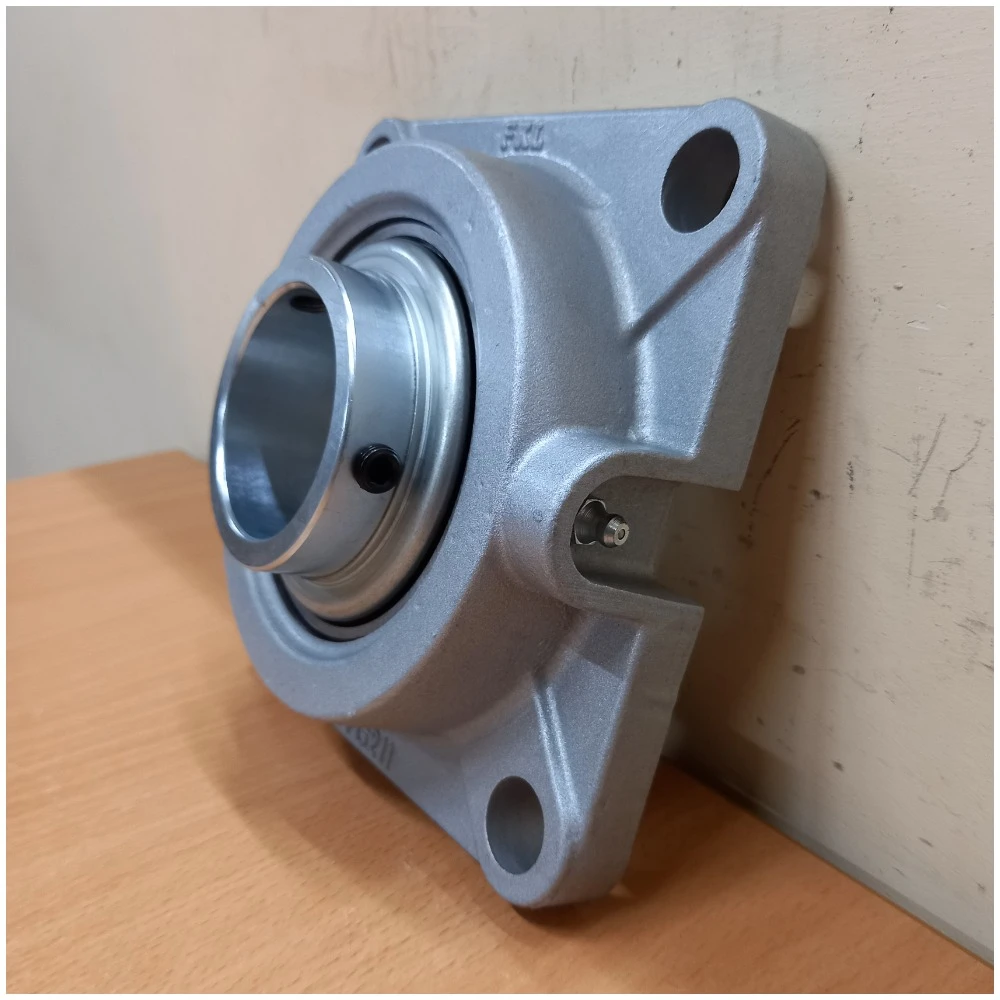

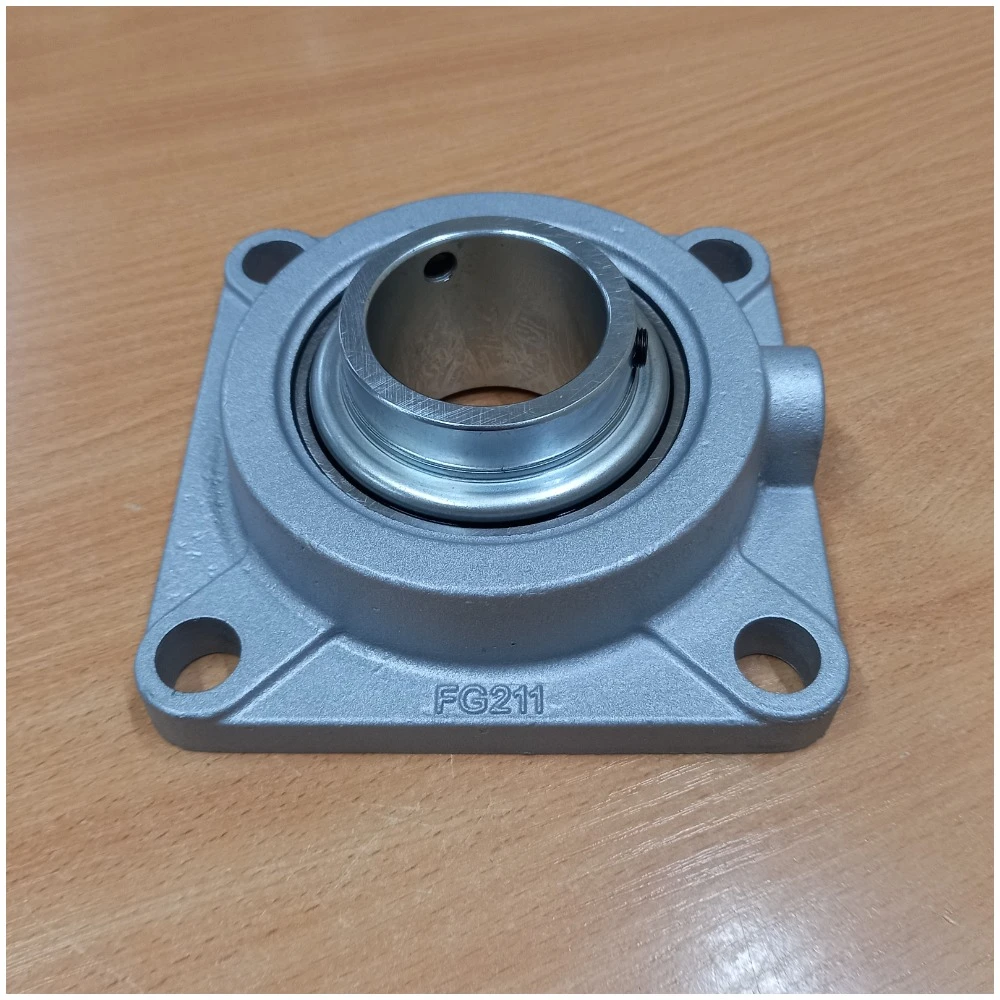

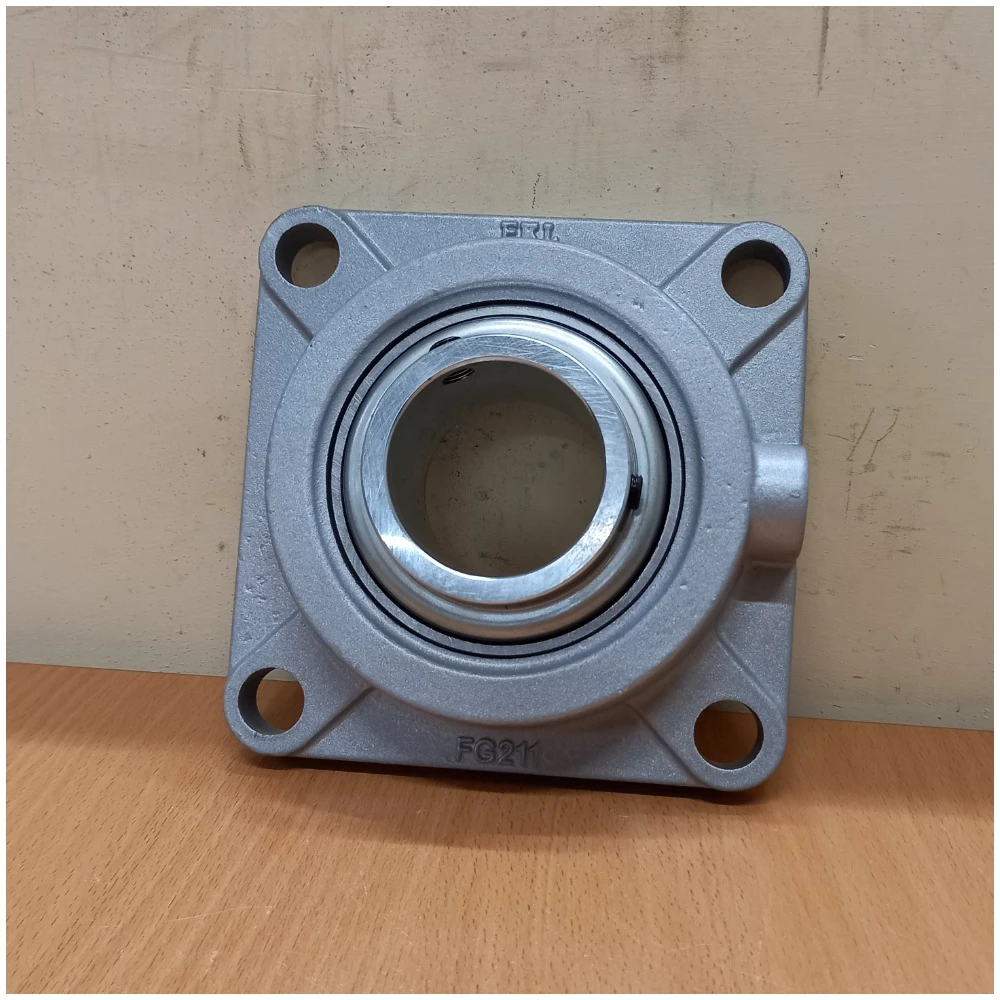

Bearing unit ARMOR LEFG 211 TDT FKL, H2228591 Kuhn, LE 211 TDT FKL, Dnipropetrovsk region.

Offer bearing unit ARMOR LEFG 211 TDT FKL (Serbia).

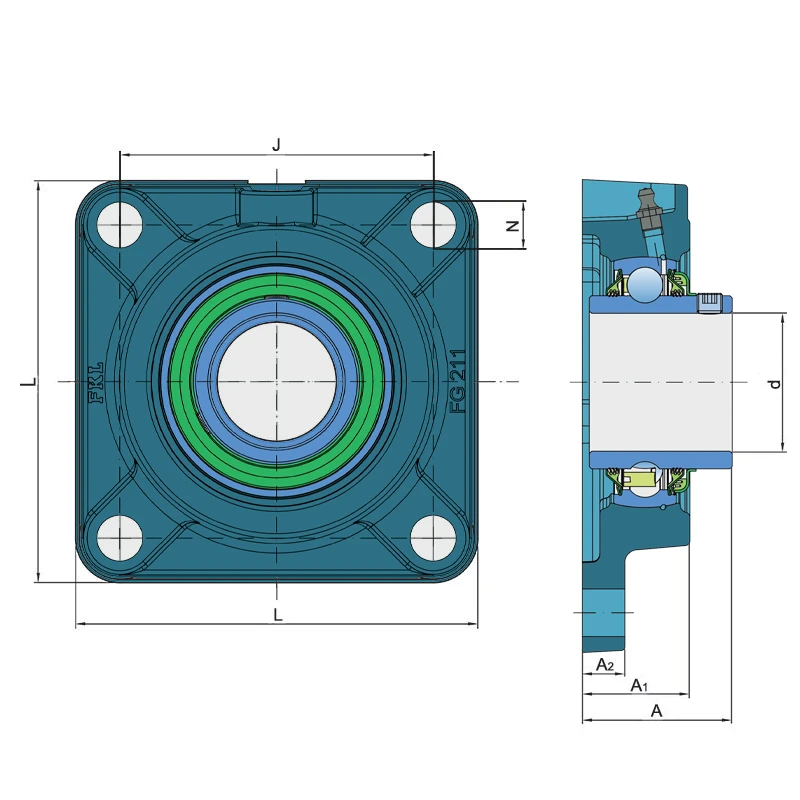

Bearing ID - 55, Overall Width - 59.8, Overall Housing Width - 43, Overall Length - 162, Hole Center Distance - 130, Weight - 3.55, Housing Rim Width - 17, Bore Diameter - 19, Dynamic Load - 43.6, Static Load - 29.0. Case type - FG. Sealing type – 6-edge.

Field of application — tillage equipment, rollingcats.
OEM: H2228591 Kuhn.(//tractor-service.com)
Analogues: FYJ 55 TF SKF, UCF 211 NSK, D-UCF211A10B176 SNR.

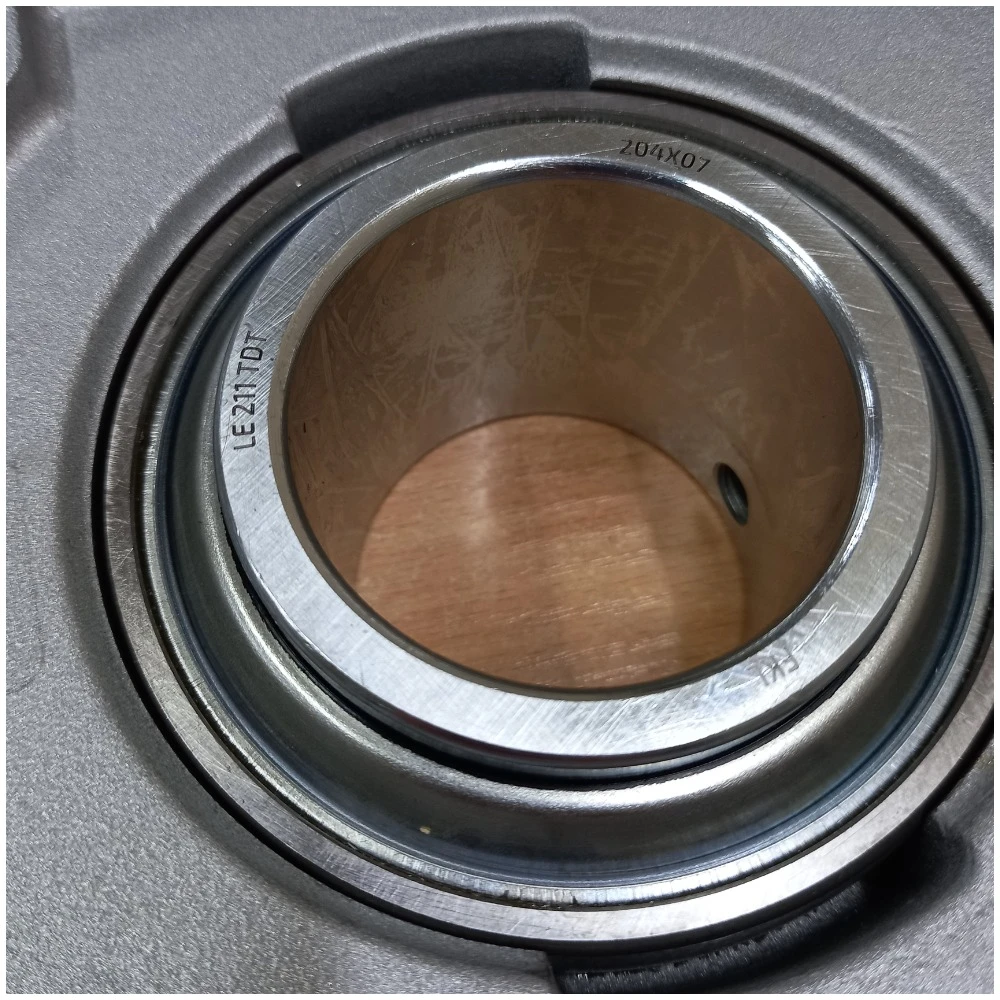

LEFG 211 TDT FKL bearing units are equipped with LE 211 TDT FKL bearings.

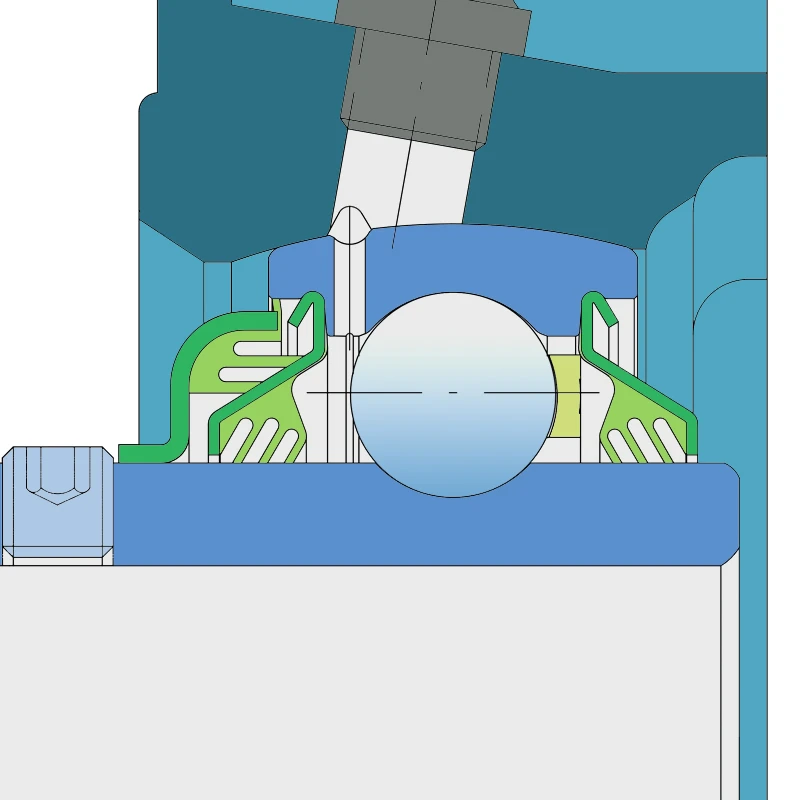

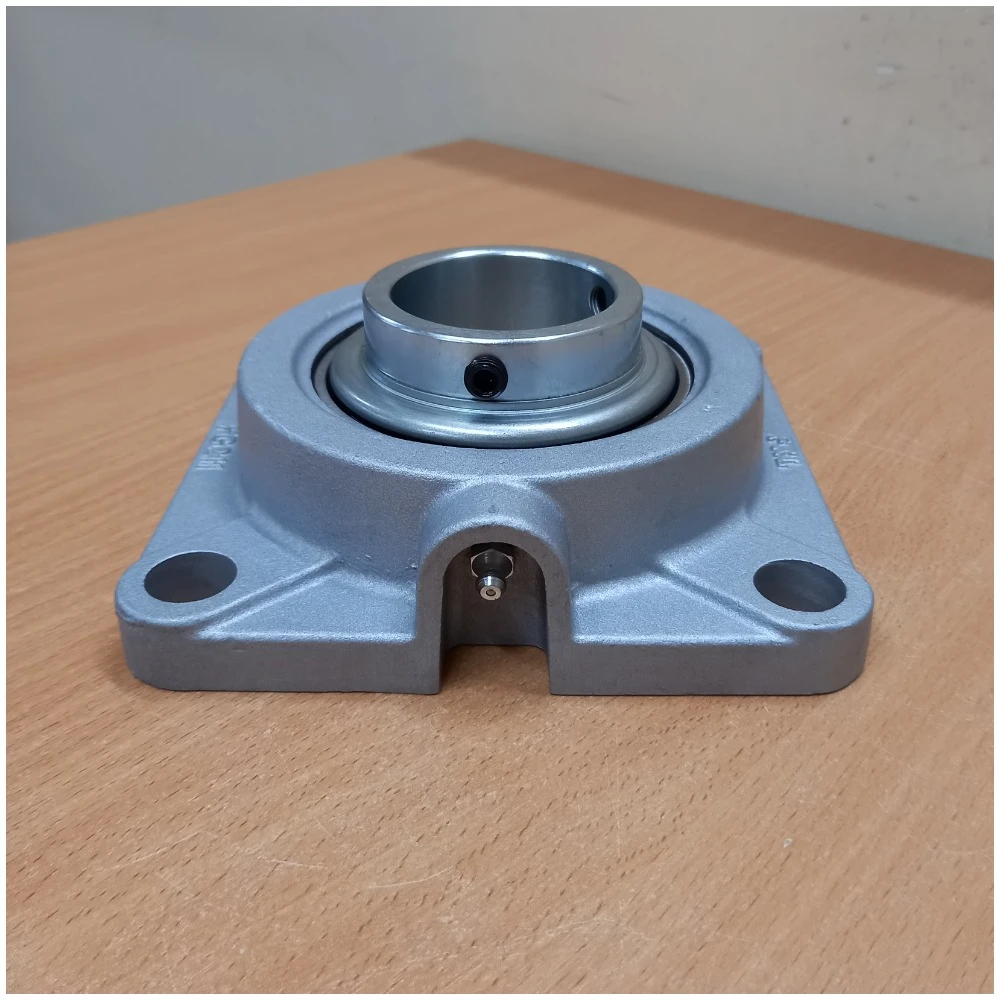

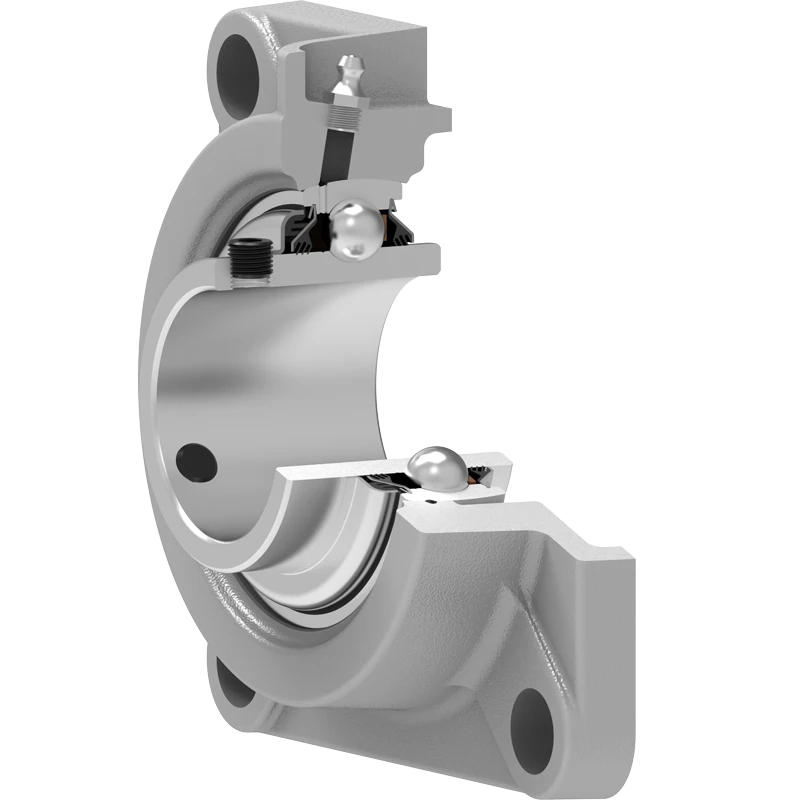

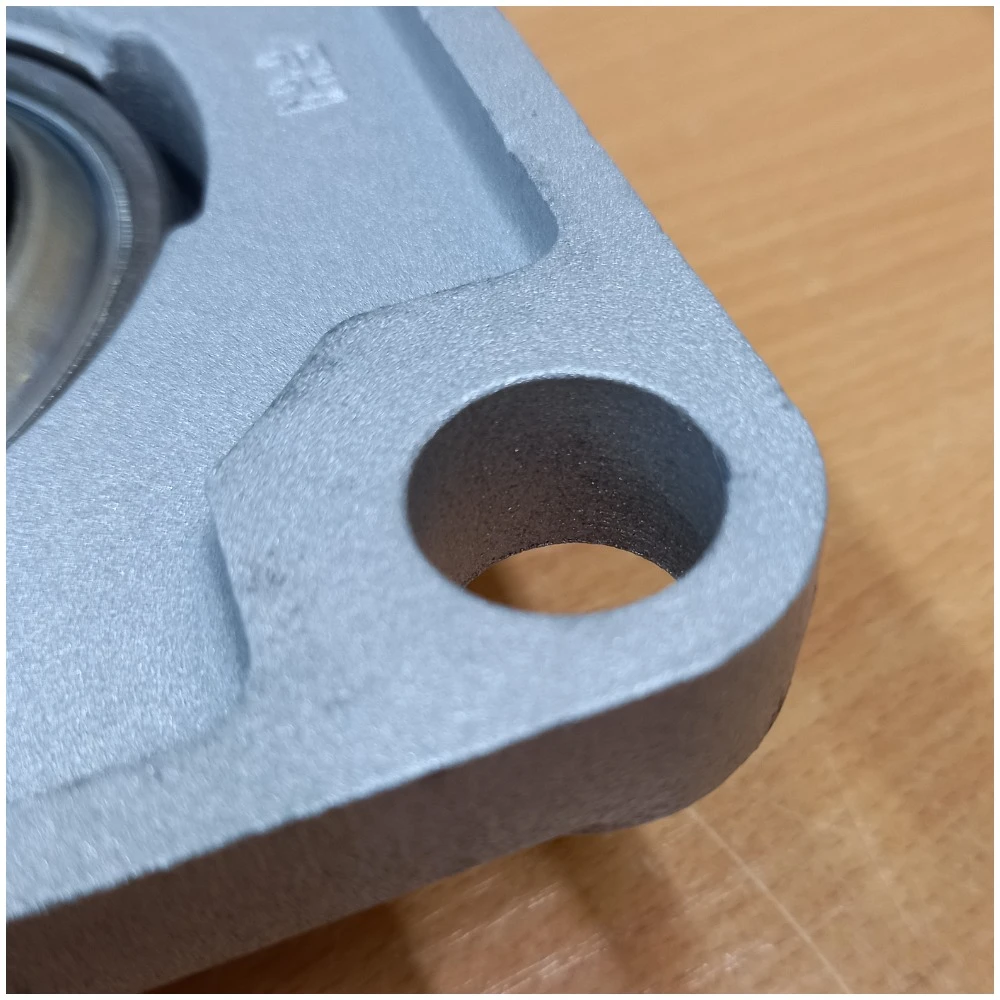

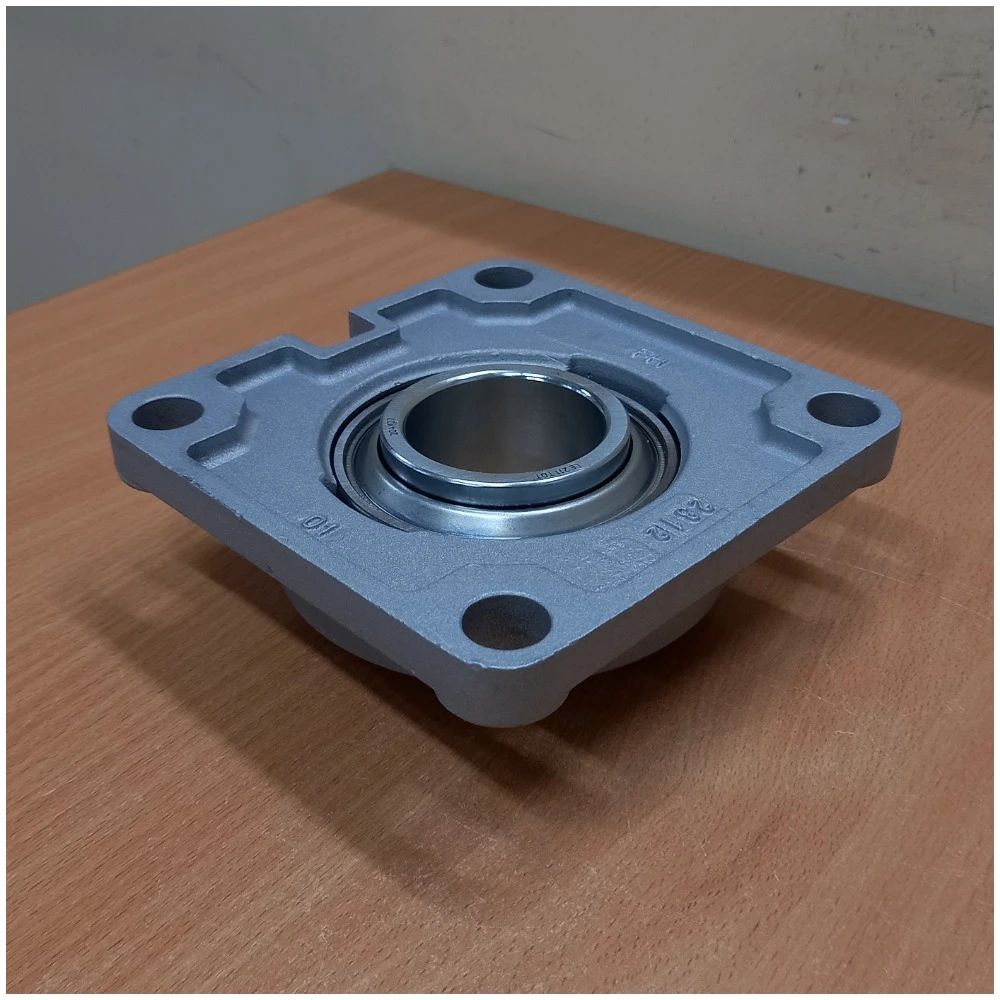

Maximum ARMOR protection: the body is cast from impact-resistant high-strength cast iron, which is 4 times stronger than ordinary gray cast iron; mechanical protection of the press oiler guarantees damage-free operation; the plastic cap protects againstdust ingress into the lubricant; grooves for mounting the bearing are made inside the housing, which minimizes contact of the bearing with dirt and dust from the working side; additional stiffeners of the housing mounting holes; galvanized coating of the housing, press washer and inner ring of the bearing is the best protection against corrosion; the unique 6-edge sealing of the bearing on the working side and 3-edge on the inner side represent the most advanced sealing system for bearing units used in agricultural machinery today; a press washer, 1 mm thick, provides reliable mechanical protection; two lubrication holes on the outer ring of the bearing; channels for lubrication are provided both in the housing and on the outer ring of the bearing; the locking pin of the outer ring prevents the bearing from rotating.

Agromash Krasnianske LLC is a business partner of FKL Ukraine TVC, which equips its own agricultural machinery with LEFG 211 TDT FKL bearing units.
