Bearing unit LEFG 212 TDT FKL, 00240198, 00240165, 00240231, LE 212 TDT FKL, Dnipropetrovsk region.

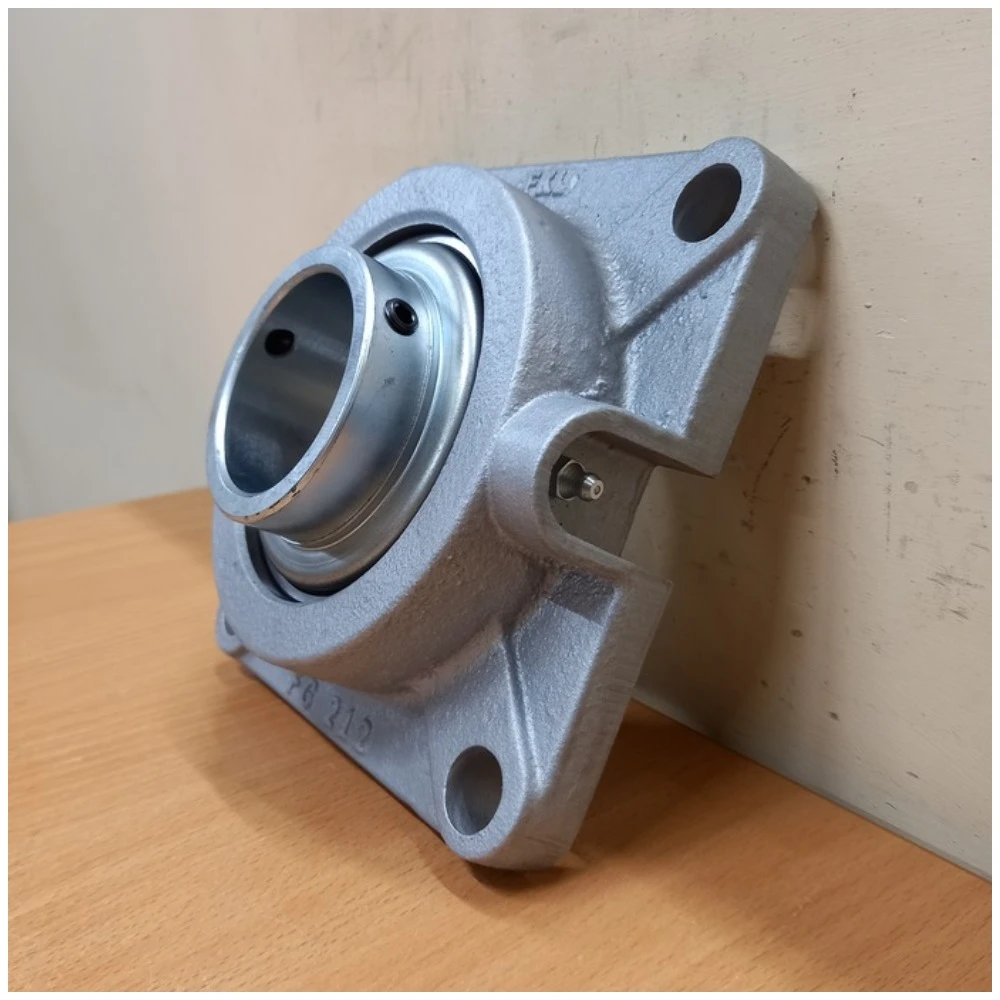

We offer a bearing assembly ARMOR LEFG 212 TDT FKL (Serbia).

Field of application - tillage machinery, rollingcats.
OEM: 00240198 Horsch, 00240165 Horsch, 00240231 Horsch, 1013873 Unia, AU/02657 Unia, KM040342 Bednar.
Analogs: UCF 212 INA, UCFE 212 G2L3 SNR, FY 60 TF.M SKF, XUC 212 B133+FE 212 GGG SNR, F-581539-0200+F-585139-0011 INA, UCF 212 NSK, FYJ 60 TF SKF.(//tractor-service.com)

Bore Diameter - 60, Overall Body Width - 48, Body Flange Thickness - 19, Hole Center Distance - 143, Overall Length - 175, Bore Diameter - 19, Overall Width - 68.5, Body Type - FG, Weight - 4.64, Dynamic Load - 52, Static Load - 36. Seal Type - 6-edged.

Maximum ARMOR protection: the body is cast from impact-resistant high-strength cast iron, which is 4 times stronger than ordinary gray cast iron; mechanical protection of the press oiler guarantees damage-free operation; the plastic cap protects againstdust getting into the lubricant; grooves for mounting the bearing are made inside the housing, which minimizes contact of the bearing with dirt and dust from the working side; additional stiffeners of the housing mounting holes; galvanized coating of the housing, press washer and inner ring of the bearing is the best protection against corrosion; the unique 6-edge sealing of the bearing on the working side and 3-edge on the inner side represent the most advanced sealing system for bearing units used in agricultural machinery today; a press washer, 1 mm thick, provides reliable mechanical protection; two lubrication holes on the outer ring of the bearing; channels for lubrication are provided both in the housing and on the outer ring of the bearing; the locking pin of the outer ring prevents the bearing from rotating.

In LEFG 212 TDT FKL bearing units, LE 212 TDT FKL bearings are installed.
