Bearing unit LEFG 209 TDT FKL, m13082 Farmet, CJI309GGG+19000509 HFB, LE 209 TDT FK, Dnipropetrovsk region.

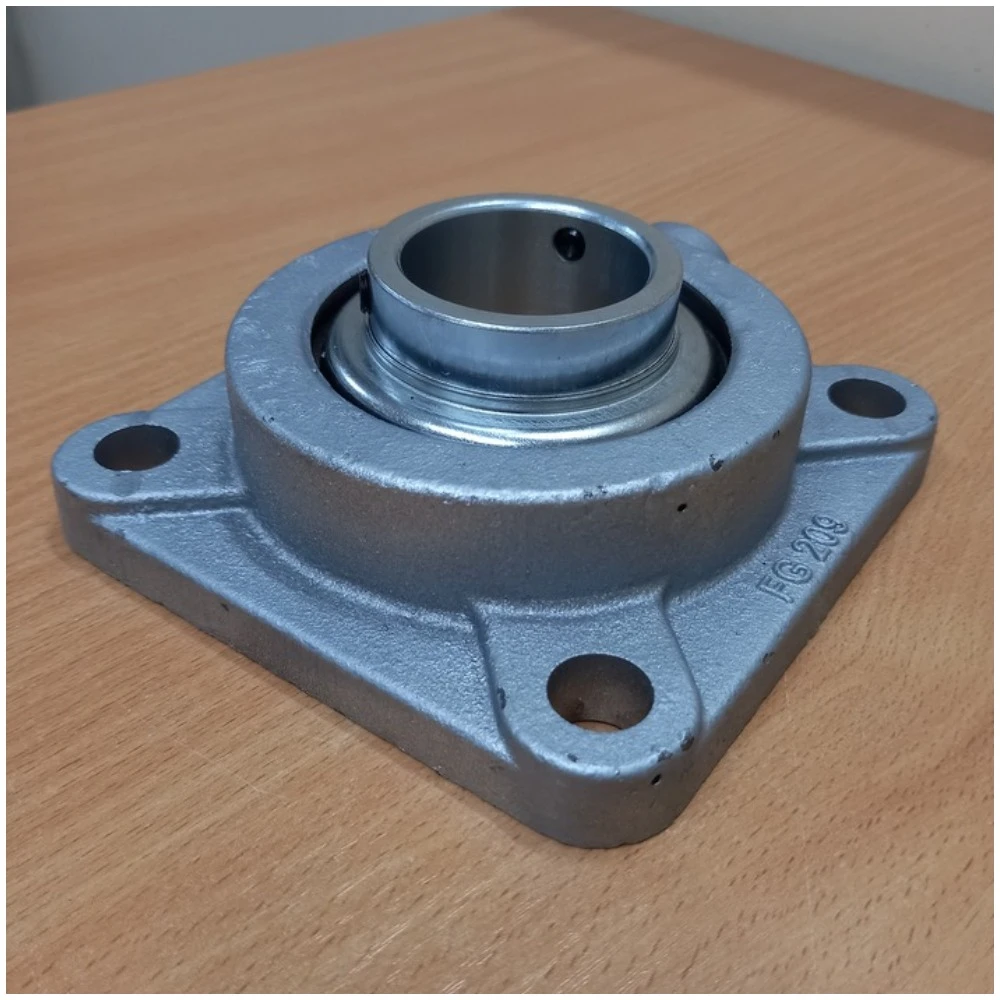

Offer bearing assembly ARMOR LEFG 209 TDT FKL (Serbia).
Field of application - Farmet Softer disk harrows, rollingcats.

Bore Diameter - 45, Overall Width - 52.2, Body Overall Width - 38, Overall Length - 137, Hole Center Distance - 105, Body Type - FG, Weight - 2.41, Body Edge Width - 16, Dynamic Load - 33.2, Static Load - 21.9. Sealing type – 6-edge.
Maximum ARMOR protection: the body is cast from impact-resistant high-strength cast iron, which is 4 times stronger than ordinary gray cast iron; mechanical protection of the press oiler guarantees damage-free operation; the plastic cap protects against ingress ofdust into the lubricant; grooves for mounting the bearing are made inside the housing, which minimizes contact of the bearing with dirt and dust from the working side; additional stiffeners of the housing mounting holes; galvanized coating of the housing, press washer and inner ring of the bearing is the best protection against corrosion; the unique 6-edge sealing of the bearing on the working side and 3-edge on the inner side represent the most advanced sealing system for bearing units used in agricultural machinery today; a press washer, 1 mm thick, provides reliable mechanical protection; two lubrication holes on the outer ring of the bearing; channels for lubrication are provided both in the housing and on the outer ring of the bearing; the locking pin of the outer ring prevents the bearing from rotating.

OEM: m13082 Farmet.(//tractor-service.com)
Analogs: FYJ 45 TF SKF, UCF 209 NSK, 19000509 HFB, CJI309GGG HFB.

The ARMOR LEFG 209 TDT FKL bearing unit completely replaces the CJI309GGG+19000509 HFB cast flange housing (Germany).

LEFG 209 TDT FKL bearing units are equipped with LE 209 TDT FKL bearings.

PrJSC "Umanfermmash", PF "Hartehprom-97" are business partners of TVK "FKL Ukraine", which equip their own agricultural machinery with LEFG 209 TDT FKL bearing units.
