Equipment for the manufacture of ATLANTIC BFS concrete pipes.

Production equipment for your success - BFS - the world leader in concrete technologies.

BFS - Our service saves your money and time.

For BFS, supplying a system, machine or mold is the beginning of a partnership. Satisfied customers are a guarantee of success and further growth.

Excellent customer service, fast and reliable supply of spare parts, prompt and competent troubleshooting and support from our experienced BFS hotline specialists, as well as prompt and professional on-site service make BFS a reliable partner.

ATLANTIC from BFS - manufactures concrete products of the highest quality.

Thanks to an extremely short cycle, the two-carriage direct formwork system ensures high productivity.

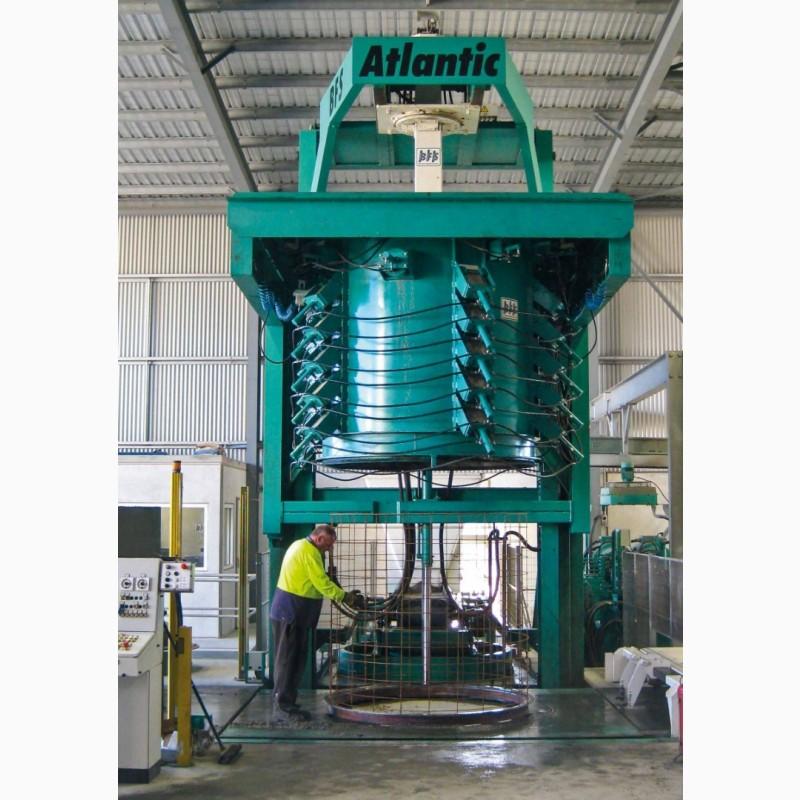

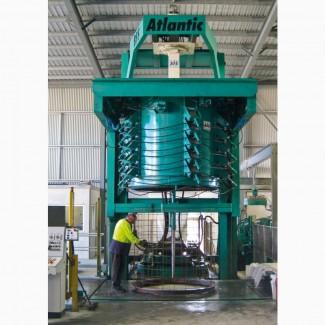

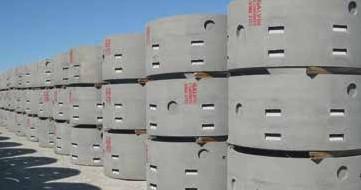

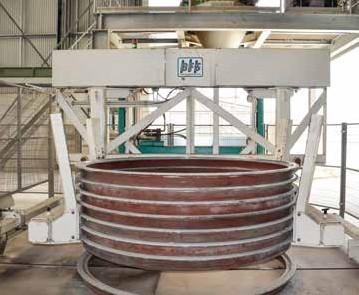

Overview of equipment benefits - ATLANTIC: Efficient production of wells and pipes - ATLANTIC's product range includes products with diameters from DN 300 to DN 2000 and heights from 100 to 2500 mm - of the highest quality and with high performance. Models are available in cases up to fully automated production.

Cycle time 45 seconds!

Thanks to extremely short cycle times, the two-carriage system for direct formwork ensures high productivity.

The quality and condition of products is the task of the BFS machine.

Therefore, the consistently high quality of products depends on the operator's qualifications.

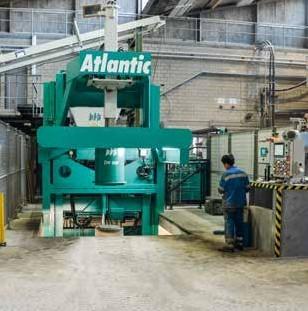

The BFS-ATLANTIC system can be operated by one person, including assembly of parts, intermediate storage and dismantling.

BFS machines have a modular design!

The system – for single or double production – takes up little space and can be adapted to local conditions.

From the main pallet store, a system of pushers moves one pallet to the station for applying the dividing stock and then to the concreting position.

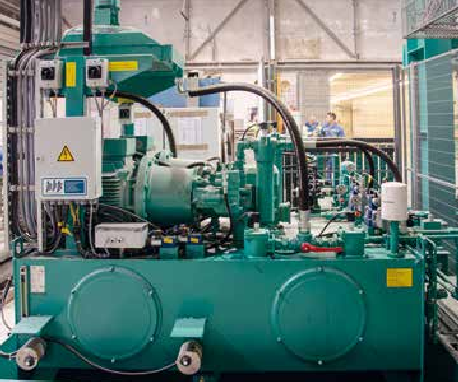

A capacious hydraulic unit with modern proportional valve technology ensures performance reserve, operational reliability and short cycle times. The transparent structure of the modules ensures simple and quick maintenance.

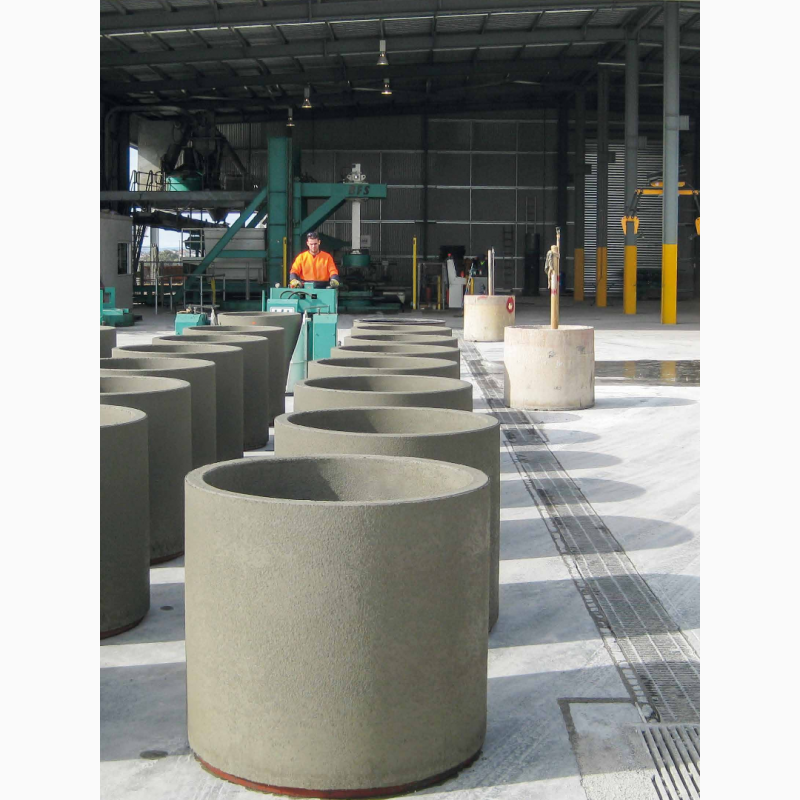

After demolding, the products are automatically unloaded from the production machine for curing using the ROBOTRAC computer system or the BFS maneuverable electric trolley.

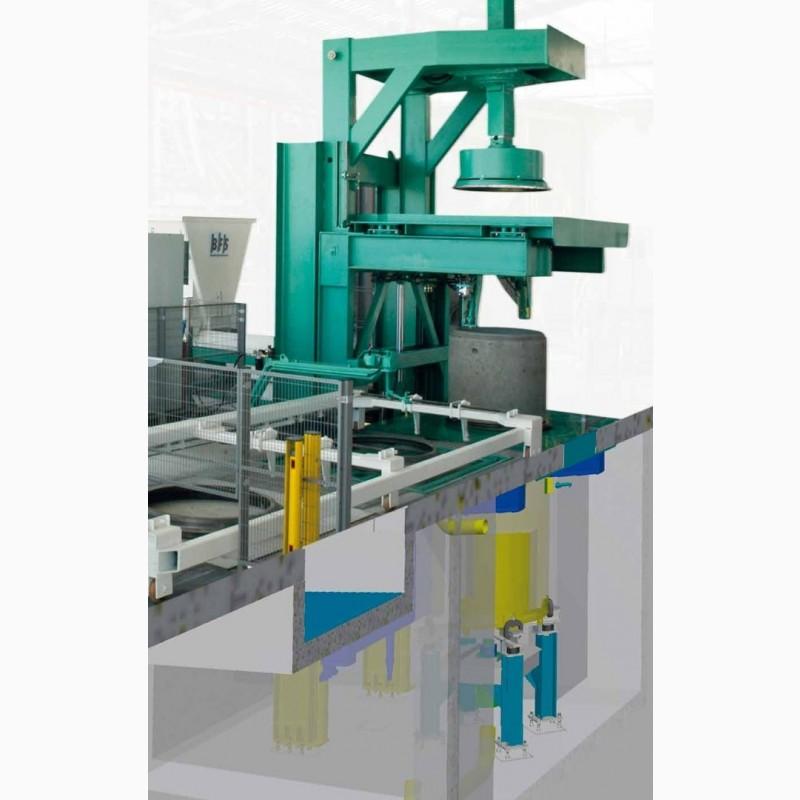

Concrete is compacted by a modern central vibrator with a hydraulic clamp of the mold core. The frequency-regulated direct drive is carried out by dynamic electric motors with a wide range of revolutions. BFS is a typical cross-vibration system with improved vibration isolation from the foundation, which ensures the maximum distribution of vibration forces on the forming equipment with a minimum noise level.

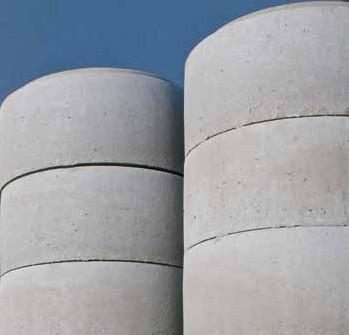

Vibro-sealing elements can be used for risers and cones of wells in the production process. Supply of mounting parts can be carried out automatically or manually. Whether direct cast steel rungs or clamps, or pre-punched for later installation, BFS has a system to match.

After removing from the mold, the products are automatically removed from the production machine.

Further transportation to the hardening zone is carried out using the computerized system ROBOTRAC or the maneuverable electric trolley BFS.

The adjustment system adapts to different sizes of products without any changes.

Automatic height control system "HEIMO" reliably minimizes dimensional tolerances.

BFS - ATLANTIC - For automated production:

1: System of installation of stepped elements

By hand on simple stairs
With the help of a convenient lift
Or completely automatically using the BFS robot installer(//tractor-service.com)

2: Fully automatic production with groove molds.

With the optional ATLANTIC ROTO equipment, your ATLANTIC can be converted into an automatic ditcher production system.

Elements of the base of manholes, floor slabs, gutters, road fences - manufactured by ROTO!

3: Transport anchor installation systems

Semi- or fully automatic installation and filling of transport anchors, threaded bushings, etc.

Thanks to the proven and reliable BFS technology.

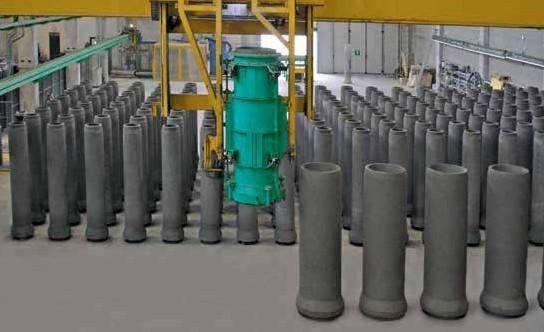

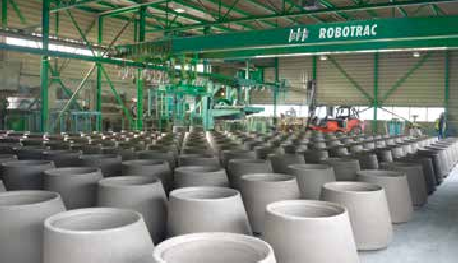

4: ROBOTRAC - automatic crane

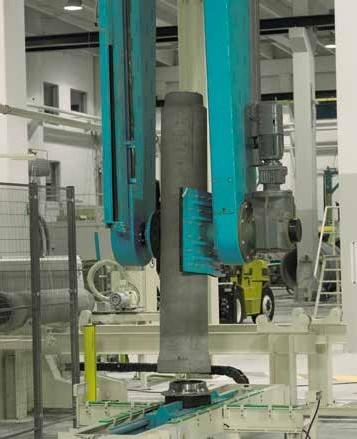

A fully automatic robot faucet to fully automate your system. The ROBOTRAC system takes care of the transportation of fresh produce, the installation and removal of socket rings, as well as the removal of hardened concrete products - quickly, reliably and safely.

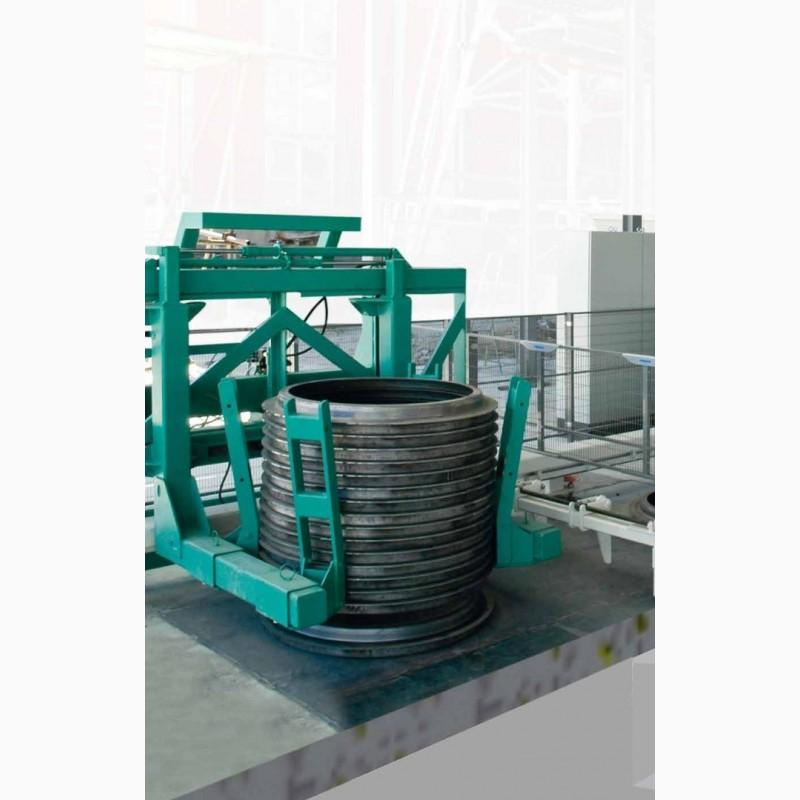

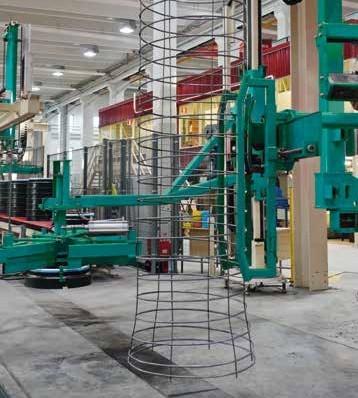

5: Armature installation system

For the automatic installation of reinforcing rings or reinforcing frames, a suitable installation system is available both for pipes and for the production of well elements.

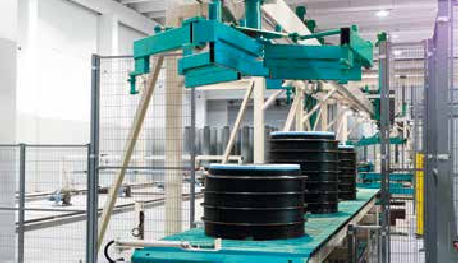

6: Processing pallets

The feeding and return of pallets from the storage area to the machine, the installation of pallet seals, as well as the application of the distribution composition - all this is performed by processing systems from the BFS product line.

7: Cleaning pallets

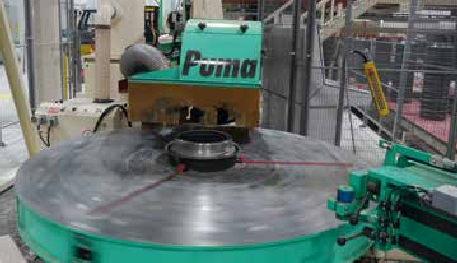

The pallet rings are cleaned gently and quickly with a PUMA CNC cleaning robot or a pallet brush that is easily integrated into the production process.

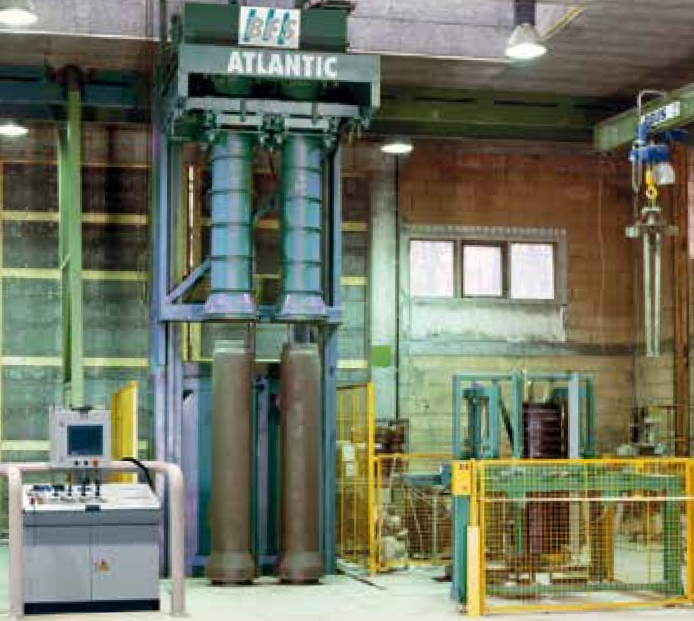

8: Production on single or double machines: ATLANTIC MONO or ATLANTIC DUO.

With the help of this system, two products with a diameter of up to DN 600 can be manufactured at the same time.

9: BFS Finitec technology.

During the hardening process, the ring on the end part remains on the concrete product, which ensures high dimensional accuracy and roundness of the profile. An ideal system for ideal product quality.
