Equipment for the production of concrete pipes VIHY Mastermatic HawkeyePedershaab, Kyiv

Equipment for the production of concrete pipes VIHY Mastermatic HawkeyePedershaab.

Unique sealing technology with retractable core for maximum productivity and quality:

Fully automatic production
Multi-position work
Formwork without dismantling
Quick change of forms

Mastermatic technology ensures fast filling and uniform compaction. With the Mastermatic HawkeyePedershaab VIHY machine from Afinitas, the company offers the ideal solution for the mass production of high-quality reinforced and unreinforced concrete pipes - both round and non-round.

A key advantage of the Mastermatic is its advanced retractable core compaction technology that quickly fills and compacts concrete evenly throughout the length of the pipe.

Productivity:

Depending on the machine model and the pipe sizes being produced, up to three different pipe sizes can be produced at the same time. Mastermatic XT is capable of producing up to 100,000 tons of products per year.

Advantages of the system:

Fully automatic production.

Mastermatic is unmatched for high productivity, repeatability and stability of production with minimal labor.

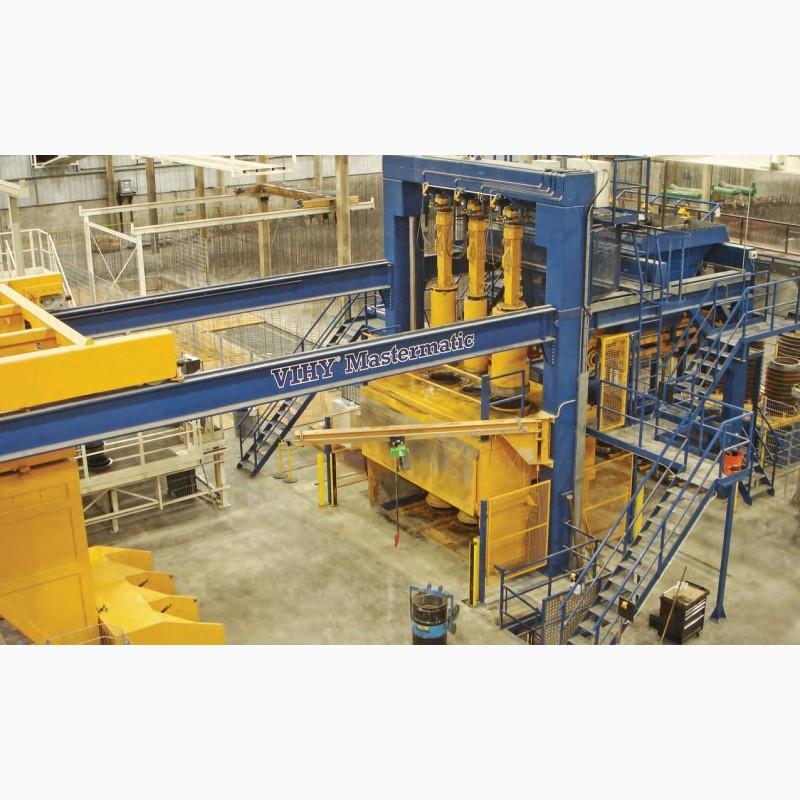

Mastermatic has become the foundation of many concrete pipe companies around the world. Machine automation is controlled by an easy-to-use PLC system that continuously records production data and provides this information for overall equipment effectiveness (OEE) analysis.(//tractor-service.com)

Here's how a typical Mastermatic production cycle works:

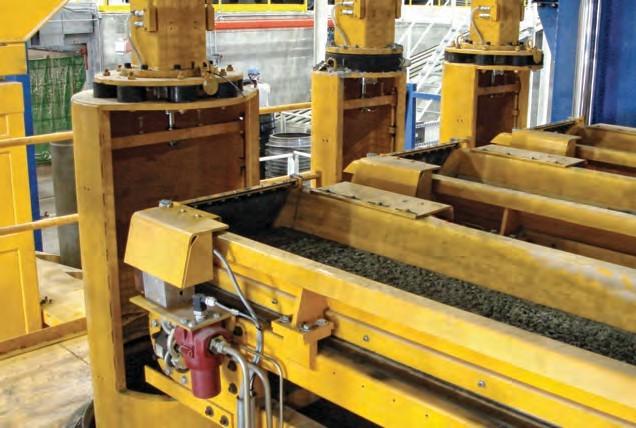

Special belt feeders feed concrete into the mold at each production station of the machine.
Using lifting core technology with a rotary compactor system (CRS), the machine fills and compacts concrete quickly.
The integrated trunnion forming process ensures accurate and uniform positioning of the profile ring throughout the filling cycle, ensuring the correct pipe length.

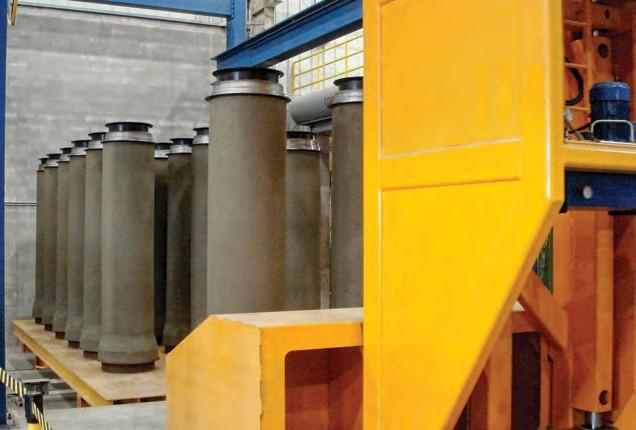

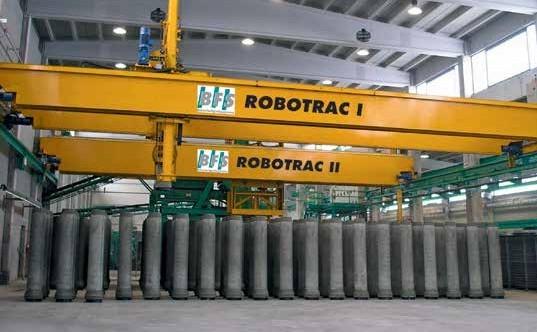

Unloading can be carried out automatically or with the help of an electric cart. Pallets are fed from the rear of the machine, and finished products from the front.

Work at several stations:

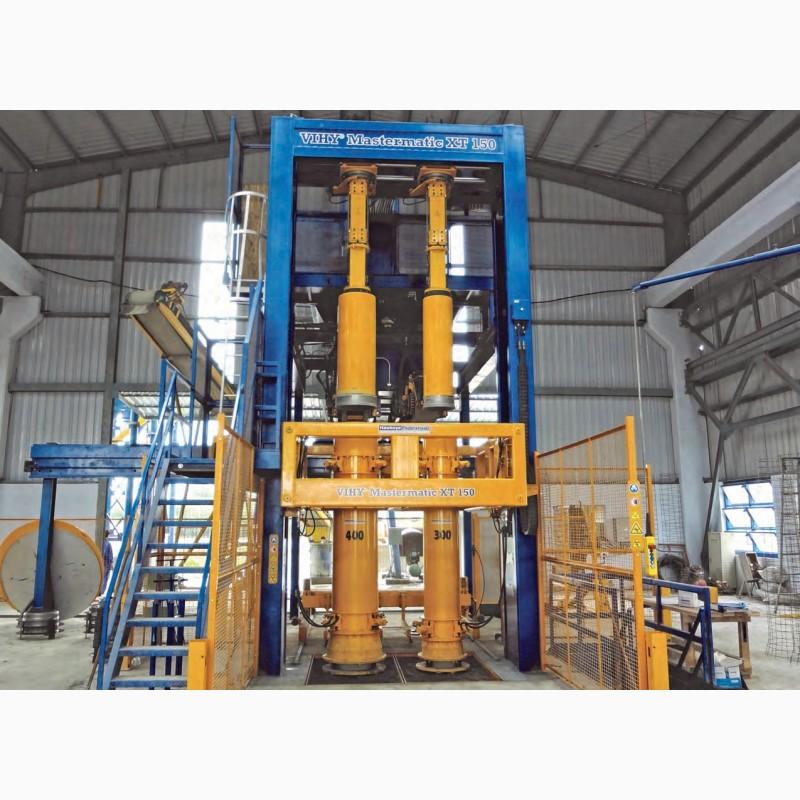

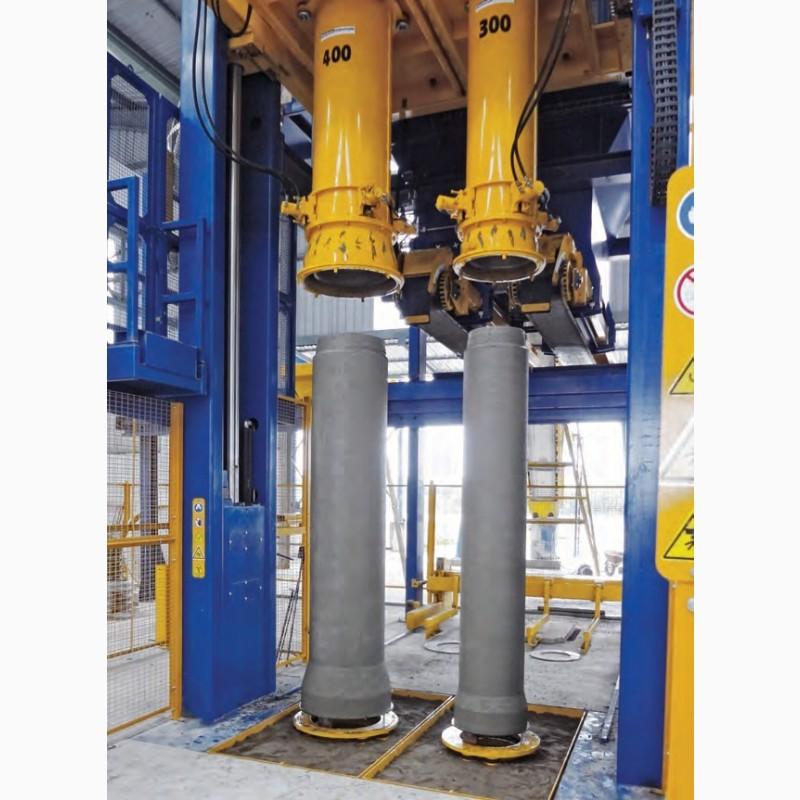

Depending on the machine model and pipe size, the Mastermatic XT can produce two or even three concrete pipes at the same time.

Since each Mastermatic station is equipped with separate feed belts and control system, the machine can produce pipes of different diameters at each station without compromising quality. The advantages are reduced initial investment in molding equipment and increased production flexibility.

Formwork in the car reduces costs

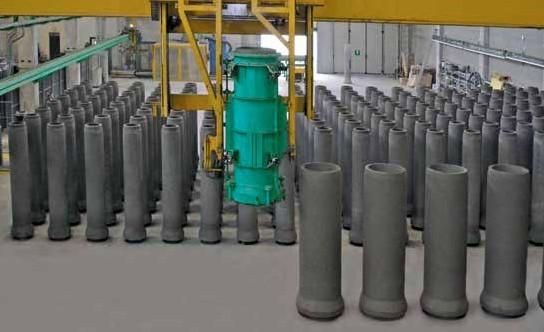

After the filling, compaction and trunnion processes are complete, the Mastermatic automatically palletizes the product ready for unloading using a product cart or automatic unloading device. A bridge crane is not required, which minimizes the area and reduces capital costs.

Quick shape change:

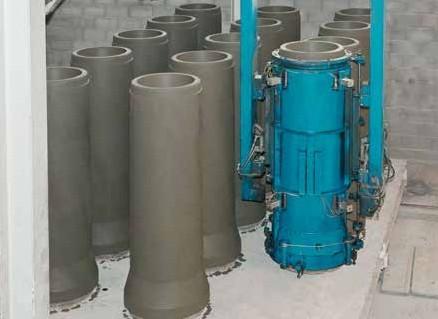

Mastermatic's simple quick-release attachments and modular molding components eliminate the need for time-consuming mold set-up and alignment on the machine. Molds can be changed in just thirty minutes, allowing pipe manufacturers to respond quickly to sudden market demands.

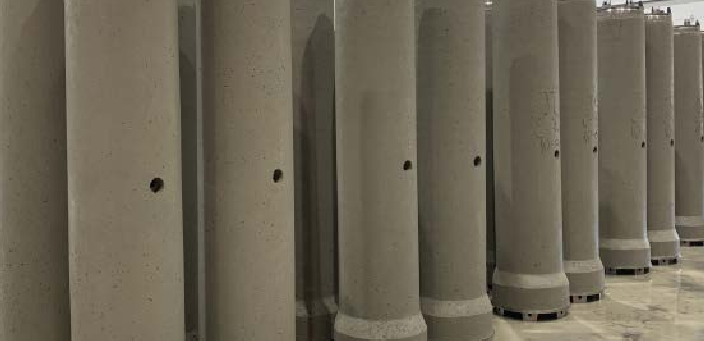

Production of reinforced and unreinforced pipes.

Because the concrete is filled completely into the outer formwork and then distributed and compacted by the rising core, the Mastermatic XT is able to produce reinforced pipe as efficiently as unreinforced, even in small diameters. The advantage (where permitted by local standards) is that pipe manufacturers can produce pipes of different strength classes for different applications using the same forming equipment.
