Tempering machines, Poltava region.

Tempering machines are intended for automatic tempering (heating or cooling with mixing) and storage with automatic maintenance of a set temperature of liquid and semi-liquid confectionery, chocolate masses - grated cocoa, fats, chocolate glaze, candy fillings and other products. The equipment has the possibility of processing masses with solid inclusions.

Additional information
Characteristics

Working capacity, dm3 100 250 500 1000
Internal diameter of the tank, mm 530 650 800 1000
Stirrer rotation speed 25...30 25...30 25...30 25...30
Frame mixer, removable
Mixer drive power, kW 1.5 2.2 3.0 5.5
The presence of a steam water jacket
The power of heating elements, kW 9 18 24 30
The maximum temperature in the working capacity, °C 90 90 90 90
Availability of nozzles for supplying steam to cold water
Availability of automatic temperature regulation
The presence of a safety valve in the steam jacket
The material in contact with the product is food-grade stainless steel
The possibility of unloading the product under pressure (0.08 MPa (mach))
Выгрузка at a height, mm Agreed with the Customer
Overall dimensions (LxWxH (depends on the unloading height), mm 800*750 900*850 1100*950 1350*1200
Description of work

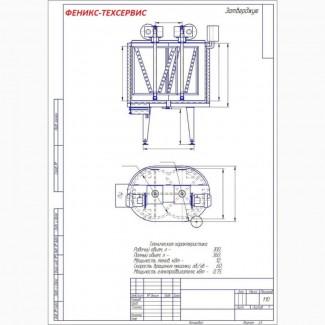

Device and principle of operation: tempering equipment is a round tank made of stainless steel with a conical or inclined bottom. A removable agitator with a drive located on the tank beam is installed inside the tank. The heating of the product in the working container is carried out with the help of a TEN steam-water jacket. Product temperature adjustment is made on the control panel.

In the case of using steam as a heat carrier, the tempering machine is equipped with a device for draining condensate and a temperature regulator for incoming steam. If necessary, we canequip with a steam generator.

To cool the product in the steam water jacket, a nozzle is provided for the supply and drain of cold water. Loading of the product is carried out through the hatch in the lid of the working container. Loading - through a valve in a conical or inclined bottom.
(//tractor-service.com)
Correctly designed structure with a frame, scraper or anchor removable stirrer that allows you to qualitatively temper the product in a minimal amount of time.

Features

The product after the tempering machine has a constant viscosity, gives a perfectly glossy surface and stability when solidified.

If it is necessary to process two different products or maintain different temperature regimes for each of the products, special two-volume tempering machines are developed or mixing of two products with the help of apump or a homogenizer, which provides a high-quality homogeneous product.

Advantages of our boilers:

It is possible to turn on the mixer after the set temperature of the product is reached or immediately after loading it into the mixer;
All parts in contact with the product and the jacket are made of stainless steel.

At the outlet, there is a drain pipe with a thread for connection with apump;

Provision is made for the breakdown of TENs into two groups. The equipment can work at full or half capacity;

The frame mixer is equipped with scrapers for uniform mixing of the product and cleaning of the inner walls of the container;

Completing with verified imported components.

Features

capacity (dm3) 100-20000

Products

liquids and pastes
