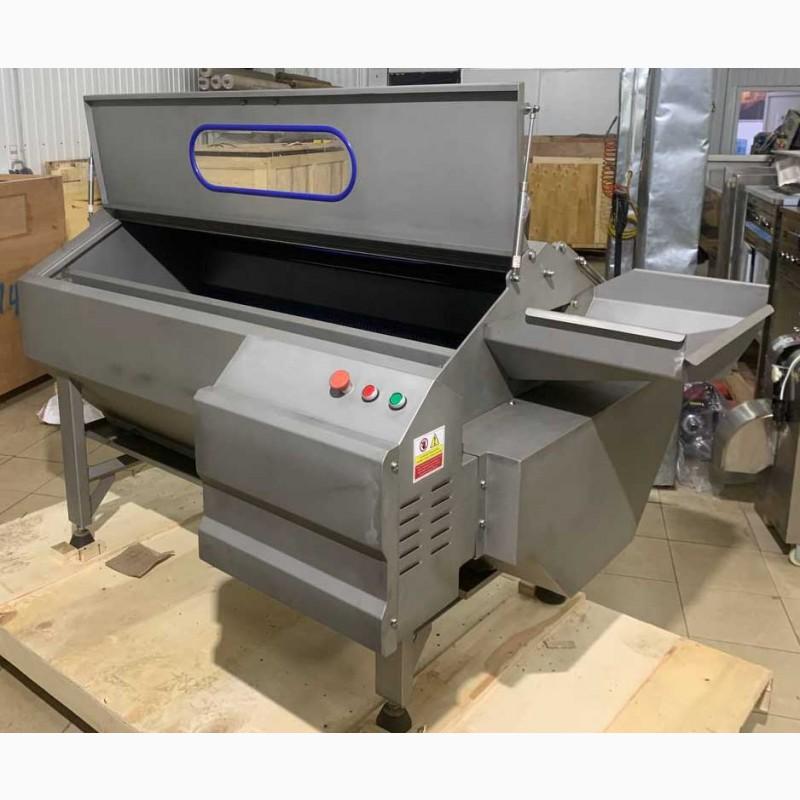

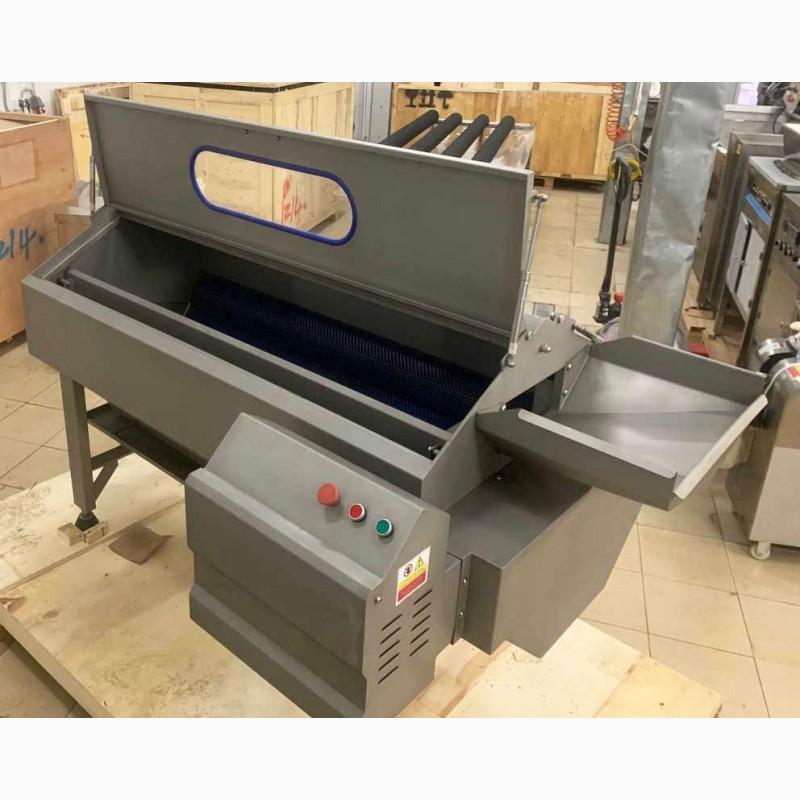

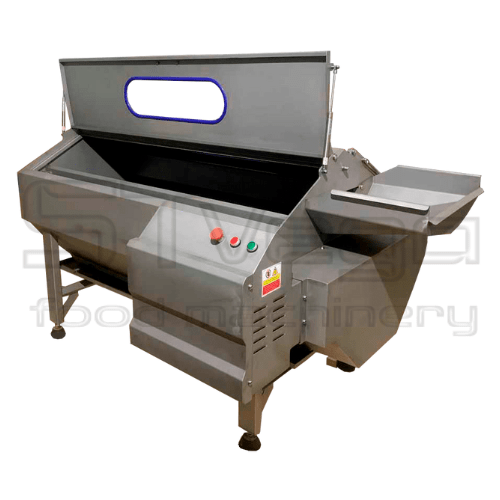

Washing machine and cleaning root crops STvega ST L1200, Kyiv

The STvega ST L1200 machine is designed for washing or washing and cleaning fruit and vegetable products depending on the type of shafts installed in the machine. Best for the following foods:potatoes,carrots, beets, ginger,topinambur, celery root and other foods.
This machine is equipped with shafts with a hard brush for washing and cleaning root vegetables.

Equipment advantages:
• Machine control unit – a separate external unit for maximum protection of the electrical part from contact with moisture, prevention of water ingress from the machine, convenience of operation in production.
• Loading hopper – it is possible to connect the machine to an automatic root processing line, thanks to the built-in loading hopper.
• Covers with inspection windows - prevent splashing of water around the machine, an additional possibility to maintain cleanliness in the production. The lids have shock absorbers, which during opening fix the lids in the desired position for the convenience of the operator.
• Built-in inverter - provides the possibility of smooth starting of the machine's engine, thanks to which it doubles the service life of the machine, prevents stretching of the drive chains.
• High-quality materials - the equipment is made of high-quality SUS 304 stainless steel and food-grade non-metallic materials that meet HACCP requirements, the machine is easy to maintain and clean, safe and practical to use.

Principle of operation:
The product intended for washing/cleaning is loaded into the washing tub. Using the control panel, the operator sets the frequency of rotation and the time of operation of the brush shafts and activates the operation of the machine. From above, along the entire length of the wash tub, water is supplied in thin jets. The product is washed/cleaned using rotating brush or rotating corundum shafts for approximately 2 - 5 minutes (depending on the product and degree of contamination). The waste water flows into the tray and through the nozzle can go into a prepared container or directly into the sewer. Next, the operator opens the lid of the washing bath with the help of a lever and the washed/cleaned product enters the discharge chute, and from it - into the container for finished products or to the next stage of technological processing.

It is possible to install different types of shafts on the machine:

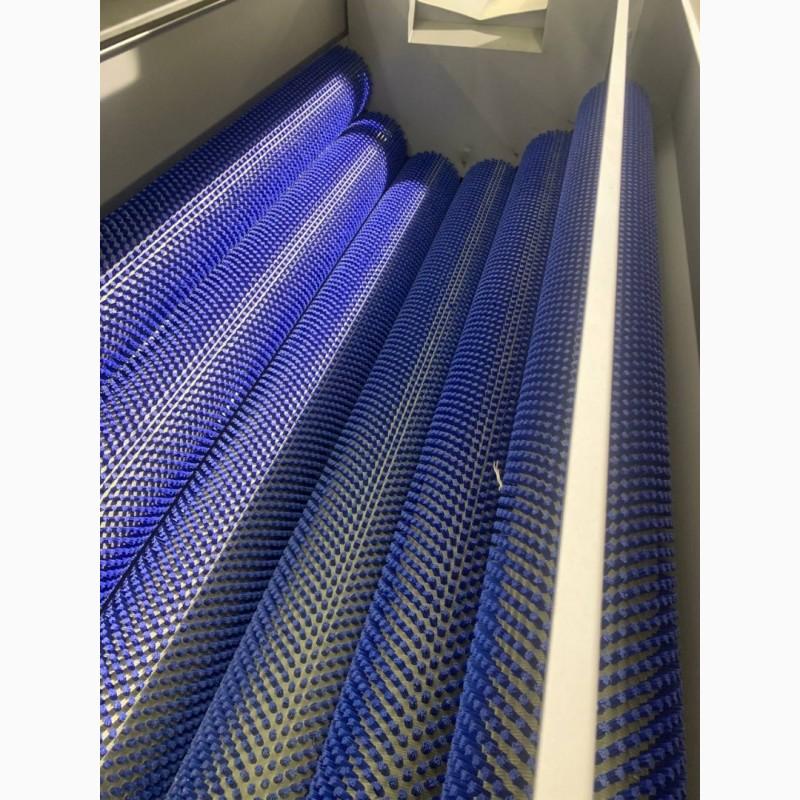

– Brush shafts marked MM (soft brush) – for washing any root crops with further processing or further packaging.
– Brush shafts marked ST (hard brush) – for washing and cleaning root crops with further processing or further packaging. Primarily suitable for products with a thin skin, such as carrots, beets or new potatoes.
– CB marking combined shafts – combine corundum and brush shafts for washing and simultaneous cleaning of root crops, at the exit – cleaned root crops for further processing or packaging.

Features:
Productivity: 500-700 kg/h
Dimensions: 1862*1157*1103 mm(//tractor-service.com)
Dimensions of the loading hopper: 398*500 mm
Shaft length: 1200 mm
Shaft diameter: 148 mm
Number of shafts: 6 pcs.
Diameter of the water supply pipe: 25 mm.
The diameter of the water outlet pipe: 51 mm.
Power: 1.5 kW
Voltage: 380 V
Single load: about 40 kg
Washing cycle time: 2-5 min.
Water consumption: 0.8 - 1 m³/h
Average loss ratio: 2-5%
Material: stainless steel SUS 304
Type of shafts: hard brush
