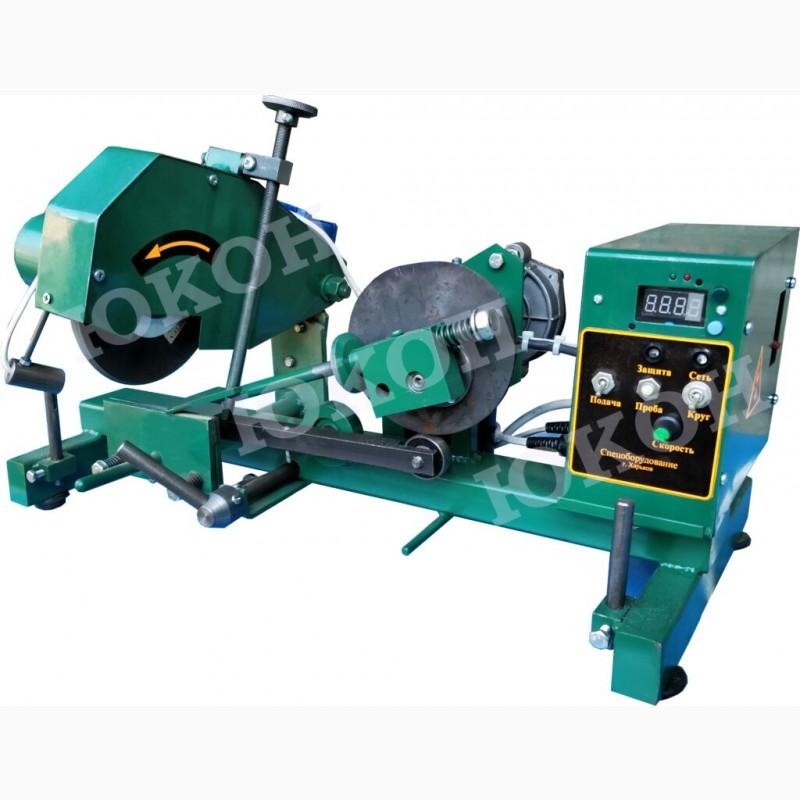

Grinding machine RYTM (automatic) for band saws, Kharkiv region.

Description
The professional sharpening machine "RYTM" is an automatic device with an abrasive wheel that guarantees the high quality of band saw preparation. A simple and reliable system of a sharpening machine has proven itself at sawmill enterprises!

The main advantages and distinguishing features of the machine:

- The work does not require qualified personnel.

- It is necessary to only put the saw in the machine, bring the disc to the saw and after 5-7 minutes remove the perfectly sharpened saw.

- Saves time, sharpening happens extremely quickly.

- Adjustment of the sharpening angle of the saw.

- Accurate setting of the sharpening angle allows you to sharpen the saw without removing excess material. As a result, the resource of the saw for subsequent grinding and the resource of the whetstone increases.

-The sharpening machine is extremely easy to use.

- Illumination of the place of sharpening the saw.

-Smooth feed rate adjustment

-Adjustment of the height and angle of inclination of the sharpening wheel

- Adjustment of the step of the saw teeth

-Counter of the number of sharpened teeth of a band saw

— Thanks to the "AUTO STOP" function, there is no need to monitor the operation of the machine. It will stop after the entire saw has been cut, which makes this machine automatic.

Technical characteristics

Illumination of the place of sharpening the saw YES
Smooth adjustment of feed speed YES
Adjusting the height and angle of inclination of the sharpening wheel DA
Adjusting the pitch of saw teeth YES
Ability to work from a 220V network YES
Ability to work from a 380V network YES
Counter of the number of sharpened teeth of a band saw DA
Hitchhiker YES
Pitch of teeth of sharpened band saws, mm 19-25
(to order another step)

Productivity of the sharpening machine for band saws, adjustable teeth/min.
10-50

Width of sharpened band saws, mm 20-50
(on order from 6 to 60 mm)

Thickness of sharpened band saws, mm 0.8-1.2(//tractor-service.com)
Supply voltage of the sharpening machine for band saws Optional:
380 V

220 V

Power consumption of a sharpening machine for band saws, kW 0.15 — 0.27
Power of the motor of the grinding machine for band saws, kW 0.18-0.28
Dimensions: length 750 mm
Dimensions: width 450 mm
Overall dimensions: height 450 mm
The mass of the sharpening machine for band saws is 25 kg.
The grinding machine is equipped with a 380V electric motor with a power of 0.18-0.25 kW and a nominal speed of 2800 revolutions per minute. Power supply voltage of the sharpening machine for band saws - 220V or 380V (optional)

This engine has proven its reliability in harsh conditions, abrasive material and metal dust easily destroy engines of other types. The design of the machine allows you to easily insert and remove the band saw.

The sharpening machine is precisely designed for saws with a tooth pitch of 19-25 and a width from 32 mm to 50 mm. which are used on horizontal and vertical band saws, and it is also possible to make them for any other type of band saw.

The electric control panel is mounted in a position convenient for the operator.

The delivery set includes:

Complete grinding machine - 1 pc.

Bars for saw support - 1 set.

Abrasive circle for sharpening a saw - 1 pc.

Passport-instruction manual - 1 pc.

The sharpening machine "RYTM" gives the opportunity to sharpen the canvas with the profile:

9/29 is recommended for hard and frozen wood
• 10/30 universal profile used for sawing soft and hard wood
to order:

• 4/32 is recommended for superhard and frozen wood
• 13/29 increases the sawing speed of soft wood
• 7/34 is intended for sawing superhard tropical rocks, it is recommended to use on machines with a motor with a power of more than 15 kW.

We produce RYTM sawmills, spare and consumable parts, as well as:

Grinding machine with an abrasive or furrow wheel
Splitting machine for a band saw
Welding machine for band saws
Electronic ruler for a sawmill
Monoblock for switching from manual lifting of the carriage to electric
