Razvodnoy stank for band saws, Kharkiv region.

Description
Diverting machine for band saws.

Gearing machines for gearing the teeth of band saws are intended for gearing the teeth of domestic and imported production, used in sawmills and woodworking enterprises, including in carpentry, where longitudinal sawing of wood is carried out with narrow (15-50 mm) band saws.

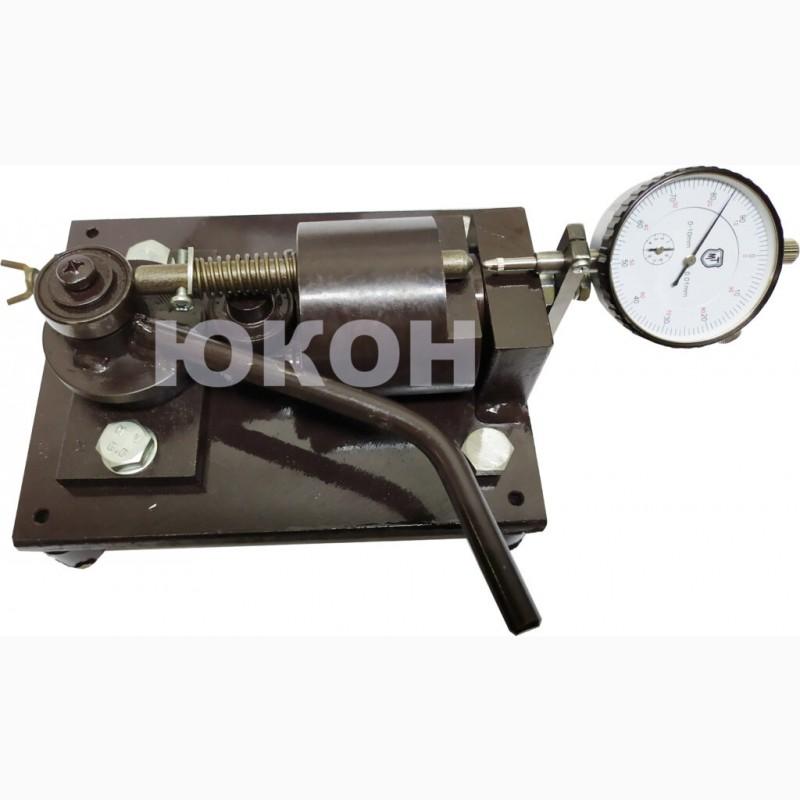

The manual razvodnoy machine for band saws from the Yukon company is intended for the razvodnoy of the teeth of the band cloth. The main advantage is the accuracy of dust separation. The good result is due to the original features of the construction of the self-made winding machine. The machine is mechanical, easy to maintain and reliable for many years of operation.

Technical characteristics:

Parameter name Значение
The length of the band saw, mm up to 7000
Saw blade width, mm 15/55
Tooth pitch, mm up to 30
Tooth height, mm up to 10 to 15
The number of removable teeth per cycle, pcs. 1
Mass, kg 9
Indicator analog YES
Bar - saw holder DA

The teeth are aligned after manually pressing the lever - on itself. Carrying out the opposite movement, then we move the saw to the next teeth.

The handle plays the role of a lever, which is convenient and easy for the operator to work with. The design allows you to constantly see the readings of the indicator. The use of a bearing in the clamping mechanism of a band saw makes the work of a folding machine soft, light, and gentle.

Adjusting the force of the saw clamp allows you to avoid the occurrence of backlash in the folding machine, that is, even after a few years, the machine will work like a new one.(//tractor-service.com)

The switchgear can be installed on a table or on a special pedestal.
The jointing machine has three pipe supports, which are enough to install a saw up to 5 m long and 50 mm wide. (the product is a grinding machine with a saw support)

Advantages:

— Low price
— Accuracy of dust separation
— Proven reliability of mechanisms, nodes and connections

— Control of the accuracy of the tooth pitch immediately after pressing the lever of the machine.

— The possibility of free installation of adjustable supports to support the saw along its length.

We produce RYTM sawmills, spare and consumable parts, as well as:

Grinding machine with an abrasive or furrow wheel
Splitting machine for a band saw
Welding machine for band saws
Electronic ruler for a sawmill
Monoblock for switching from manual carriage lifting to electric.
