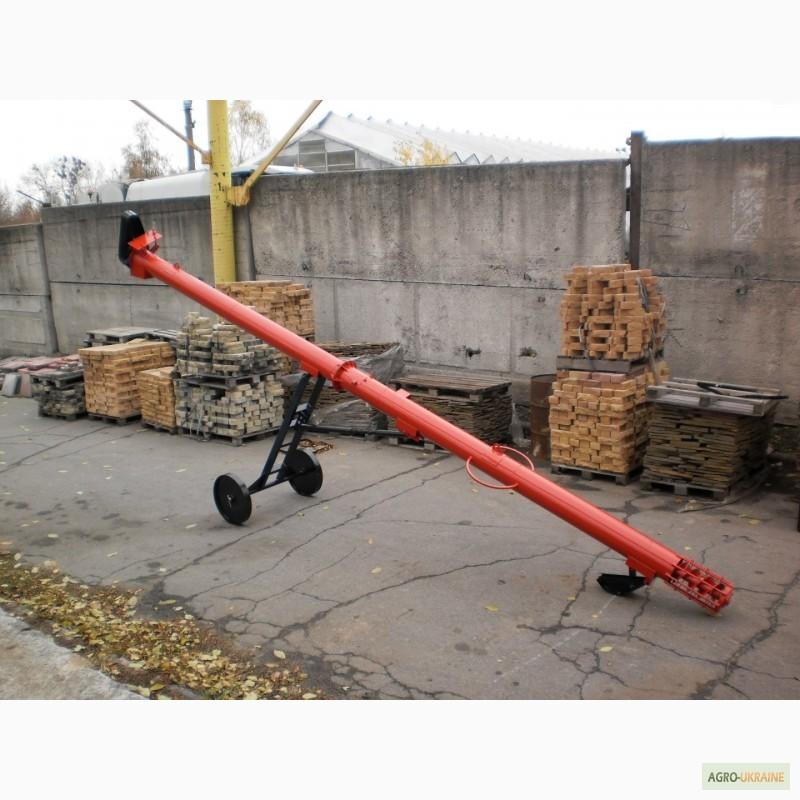

Загрузчик шнековый передвижной ЗШП 10 (6-9 meters), Cherkassy region.

Mobile auger loader ZSHP-10 is intended forloading of grain into vehicles, transshipment ofgrain cultures from one side to the other, moved on an incline, or in a horizontal direction.

The working body of the loader is a screw auger rotating in a stationary casing and driven by an electric motor through a V-belt transmission. The material is fed into the casing through a latticed window oraccumulation hopper and is moved by a screw conveyor to the discharge hole.

Technical characteristics

1. Productivity, t/h, not more than ……………………. 10

2. Electric motor 4AM 100L 6SU 1, TU 16-510.730-83, isp. 1М080, 160

мощность , кВт ………………………………………………2,2
(//tractor-service.com)
number of revolutions, rpm ……………………………….1000

3. Screw rotation frequency, rpm …………………… 370

4. Screw diameter, mm ……………………………………….160

5. Overall dimensions, mm, length x width x height... 6210x950x3200

6. Mass, kg …………………………………………………….250

Delivery is possible by Intime or Novaya pochta, payment is possible upon receipt or to a Privatbank card.
For the convenience of transportation, the ZSHP consists of two parts.
