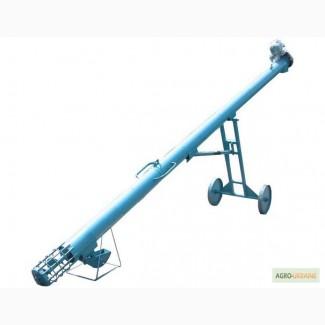

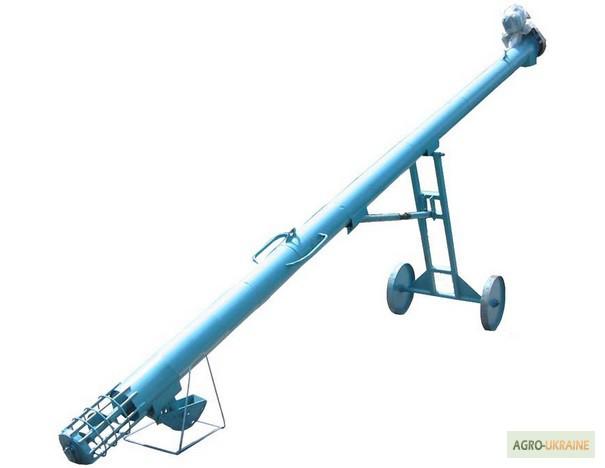

Загрузчик шнековый передвижной ЗШП-1, Cherkasy region.

The loader is intended for loadinggrains into vehicles, transshipmentsgrain cultures from one side to the other, moved at an angle, or in a horizontal direction.

Productivity, t/h 10
Installed power, kW 2.2
Electric motor 4AM 100L 6SU1, TU 16-510.730-83, isp. 1M081
Screw diameter, mm 160
Overall dimensions, mm.:(//tractor-service.com)
- length 6210
- width 950
- height 3200
Frequency of revolutions, rpm 1000
Screw rotation frequency, rpm 370
Height of grain loading, m ot 2.4 to 7.0
The length of the loader, mm 6000
Mass, kg 250
