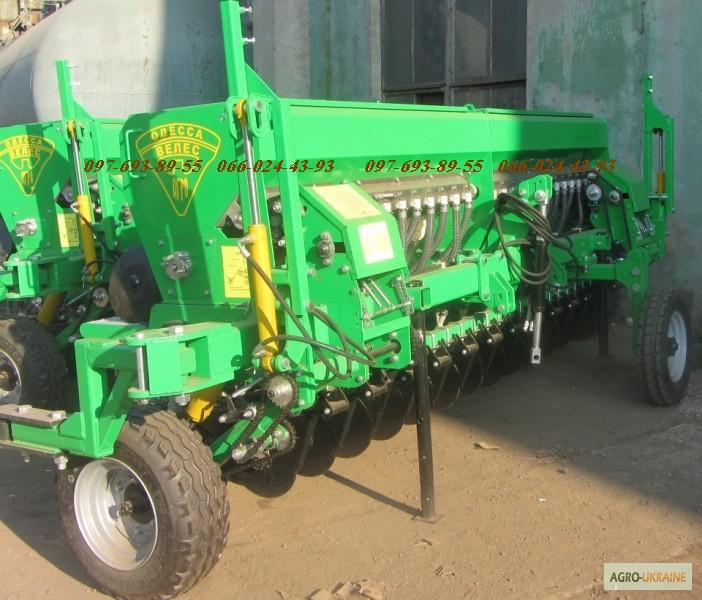

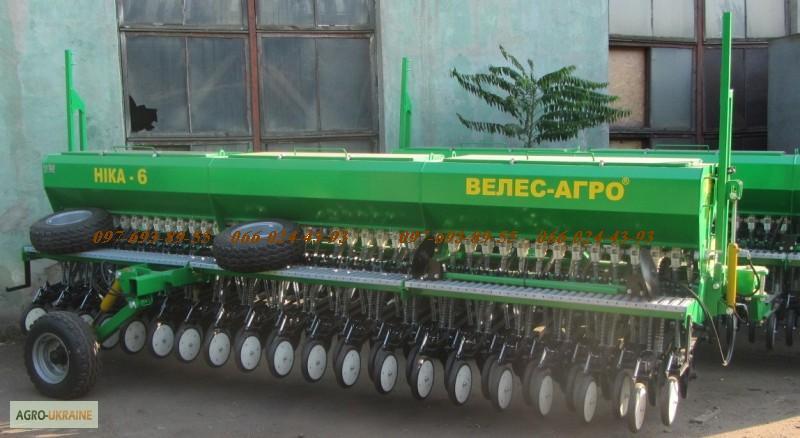

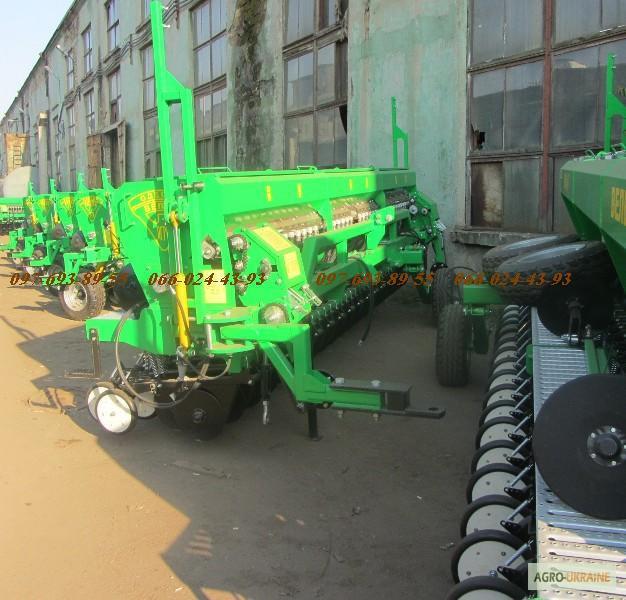

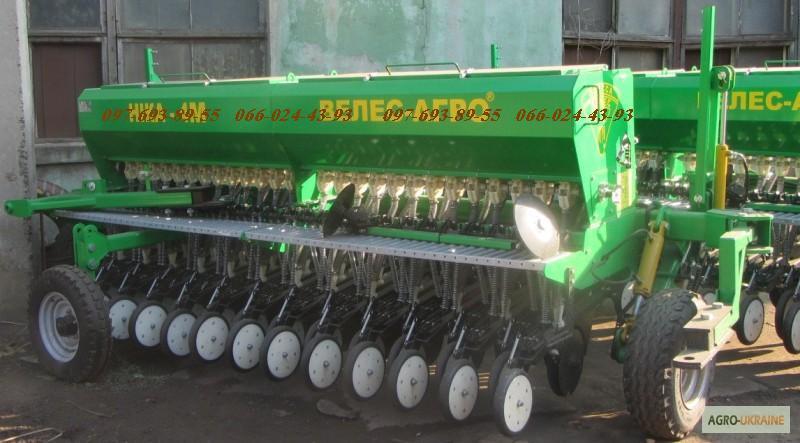

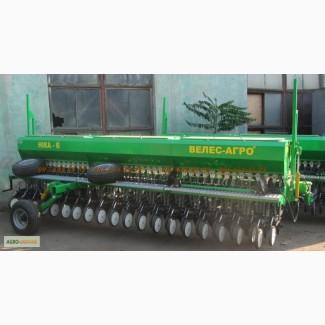

Seeder Nika 6 , Nika 4, Dnepropetrovsk region.

Seeders grain SZM Nika 6, Nika 4 Min-Till sowing technologies Designed for row sowing: grain, leguminous, technical crops, herbs, vegetables, mixtures of different crops using minimal and traditional soil processing technology. For ease of use, seed drills are produced in spring and trailer versions. At the request of consumers, seed drills can be equipped with additional functions such as: a device for transportation on general purpose roads, a seeding control system, a seeding system for small-seeded crops, and an elastic roller.
Technical characteristics of SZM-4 SZM-6
Type of seed drill mounted/trailer mounted/trailer
Working width of capture (m.) 4 6
Transport width (m.) 5.2/2.5 6.0/2.5
Number of coulters (pieces) 26 39
Row width (cm) 15.24 – 19.00 15.24 – 19.00
Pressure of the coulter on the soil (kg.) 60-110 60-110
Grain hopper capacity (l.) 840 1260
Fertilizer hopper capacity (l.) 420 630
Grass hopper capacity (l.) 120 180
Seed sowing depth (mm) 10 - 89 10 - 89
Grain seeding rate (kg/ha) 8.0 - 250 8.0 - 250
Sowing rate of small-seeded hopper (kg/ha) 0.2 - 80 0.2 - 80
Fertilizer application rate (kg/ha) 25-250 25-250
Productivity (ha./hour) 2.5 - 4.0 3.1 - 6.0
Planter weight (kg.) 2050 4300(//tractor-service.com)
Required tractor power (hp) 105/82 200/130

Name Catalog No. Aggregation
Seeder grain mechanical mounted SZM-4 MTZ-1221
Mechanical trailed seed drill SZM-4 MTZ-82
Mechanical trailed seed drill SZM-6 MTZ-1523, T-150
Additional equipment of seed drills
Transport device TR-4 SZM-4
Seeding system of small-seeded crops MS-4 SZM-4
Seeding system of small-seeded crops MS-6 SZM-6
Control system (minimum) SKV-4m SZM-4
Control system (standard) SKV-4s SZM-4
Control system (VIP) SKV-4v SZM-4
Control system (minimum) SKV-6m SZM-6
Control system (standard) SKV-6s SZM-6
Control system (VIP) SKV-6v SZM-6
Technological track system (2 devices) STK-4 SZM-4 SZM-6
Rollingwheel for dry soil SZM-4-01.220 SZM-4 SZM-6
