Seyalka Nika 6 /Seyalka Nika 4, Dnepropetrovsk region.

Seeders зроновые mechanical Nika 6 and СНика 4 mechanical grain machines intended for row-row sowing of grains, herbs, vegetables, mixtures, legumes, technical and other crops using minimal soil tillage technology, with a coulter pressure of 80 to 120 kg and a seed rolling system.

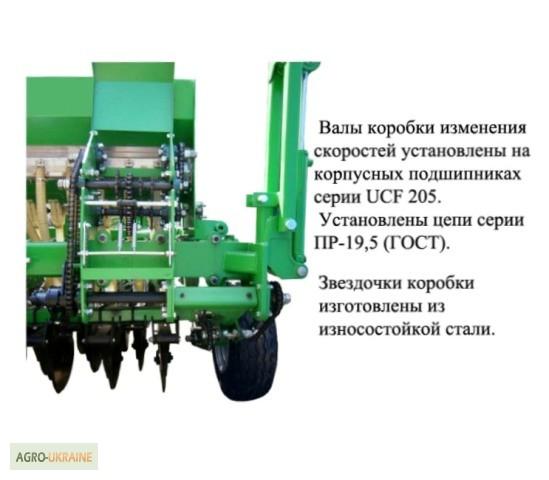

The coil system for sowing seeds in planters of the SZM series has been improved with the use of the latest technologies for surface treatment of parts and the use of high-strength and wear-resistant components in their manufacture. Thanks to the combination of the screw method of adjusting the coils to the set seeding rate and switching the speed of rotation of the gearbox, the seeder can be set both for a micro-sowing rate of 6 kg/ha and a macro-sowing rate of up to 400 kg/ha, and when equipped with a small seed hopper from 1 kg/ha to 40 kg/ha.

The Nika 6 grain seeder has two hoppers - 1300 l for seeds and 525 l for fertilizer, which creates prerequisites for high productivity and lower costs for reloading the seeder during sowing. Moreover, when dismantling the inter-bunker partition, the capacity of the grain bunker increases to 1825 l.
The Nika 4 grain seeder has two hoppers - 920 l for seeds and 350 l for fertilizer, which creates prerequisites for high productivity and lower costs for reloading the seeder during sowing. Moreover, when dismantling the inter-bunker partition, the capacity of the grain bunker increases to 1280 liters.
Name Catalog No. Aggregation
Seeder grain mechanical mounted SZM-4 MTZ-1221
Mechanical trailed seed drill SZM-4 MTZ-82
Mechanical trailed seed drill SZM-6 MTZ-1523, T-150
Additional equipment of seed drills
Transport device TR-4 SZM-4
Seeding system of small-seeded crops MS-4 SZM-4
Seeding system of small-seeded crops MS-6 SZM-6
Control system (minimum) SKV-4m SZM-4
Control system (standard) SKV-4s SZM-4
Control system (VIP) SKV-4v SZM-4
Control system (minimum) SKV-6m SZM-6
Control system (standard) SKV-6s SZM-6
Control system (VIP) SKV-6v SZM-6

For the formation of an ideal seed bed, a design of offset placement of the coulter discs is used, which also protects it from clogging with stones. At the same time, the first disk cuts through a straight sowing line, cuts the harvest residues, and the second loosens the soil and prepares the seed bed.

The set depth of seed sowing is achieved due to the mechanism of pressure springs, which, in addition to adjusting the depth, allow the coulter mechanism to copy the surface of the seeded area. The rolling-regulating wheel located behind the coultersupports the wheel precise control of the depth of seed placement, ensures the contact of the seed material with the soil, which is necessary for optimal moisture inflow through the capillaries, uniform formation of the root system and germination.

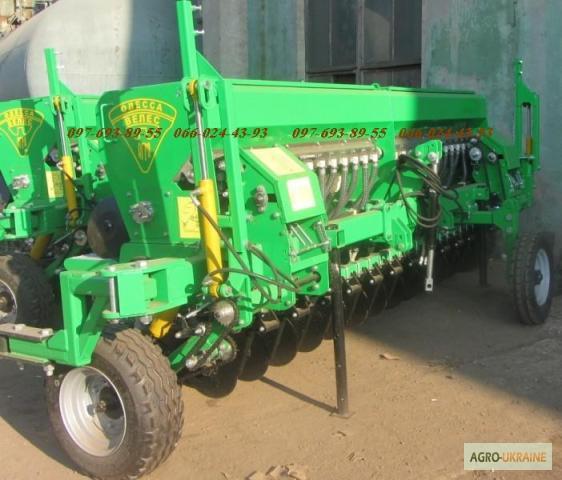

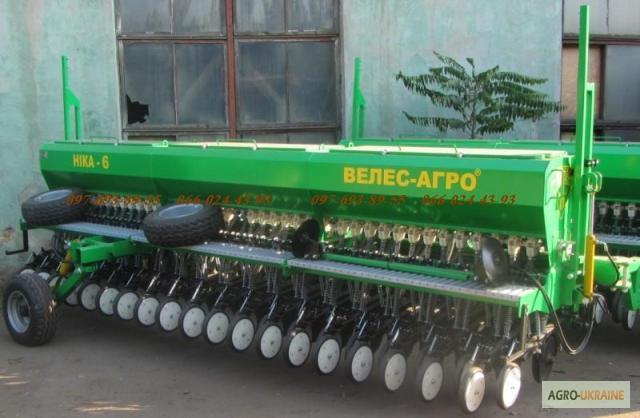

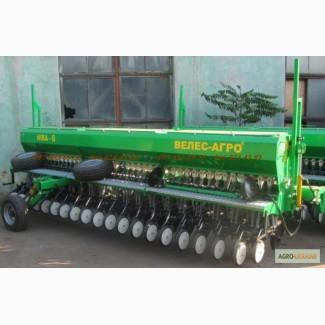

Grain seeder SZM Nika 6
Technical characteristics
Unit type
trailed
Working width of capture (m)
6.0
Transport width (m)
6 / 2.5
Number of coulters (pcs)
39
Row width (cm)
15.24 - 17.00
Pressure of coulters on the soil (kg)
80 - 120
Grain hopper capacity (l)
1300
Capacity of the fertilizer hopper (l)
525
Grass hopper capacity (l)
180
Seed sowing depth (mm)
10 - 89
Grain seeding rate (kg/ha)
6.0 - 400(//tractor-service.com)
Sowing rate of grass bunker (kg/ha)
1.0 - 80
Fertilizer application rate (kg/ha)
25 - 250
Estimated productivity (ha/hour)
3.1 - 6.0
Mass of the unit (kg)
2800
Weight of the seeder with filled hoppers (kg)
4800
Required power of the tractor (hp)
130 - 150

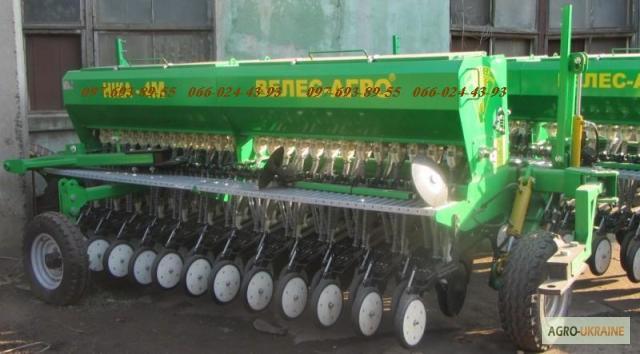

Nika 4 seed drill Technical characteristics
Unit type
spring/trailer.
Working width of capture (m)
4
Transport width (m)
5.2 / 2.5
Number of coulters (pcs)
26
Row width (cm)
15.24 - 17.00
Pressure of coulters on the soil (kg)
80 - 120
Grain hopper capacity (l)
920
Capacity of the fertilizer hopper (l)
350
Grass hopper capacity (l)
120
Seed sowing depth (mm)
10 - 89
Grain seeding rate (kg/ha)
6.0 - 400
Seed rate of grass bunker (kg/ha)
1.0 - 80
Fertilizer application rate (kg/ha)
25 - 250
Estimated productivity (ha/hour)
2.5 - 4.0
Mass of the unit (kg)
1450 / 1900
Weight of the seeder with filled hoppers (kg)
2600 / 3000
Required power of the tractor (hp)
105 / 82
