Vibropress automatic line NMB 5025 (480 m2/shift)

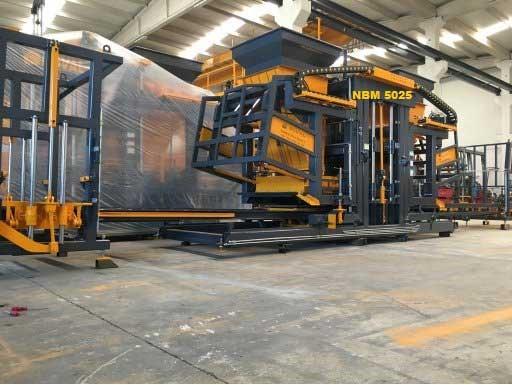

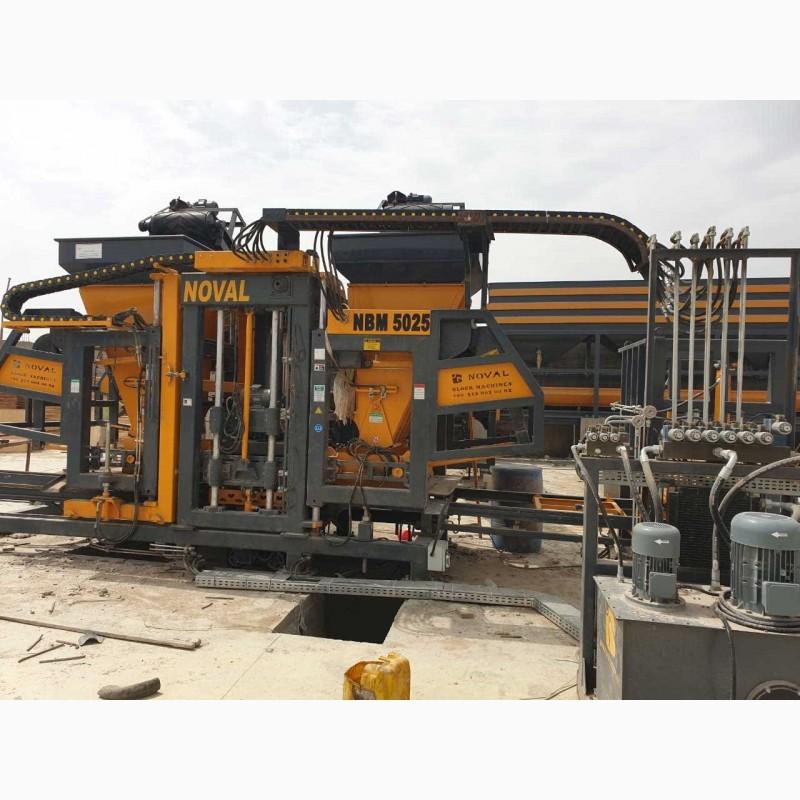

NBM 5025 MACHINE FOR THE PRODUCTION OF PAVEMENT TILES, CURB AND BLOCKS

These are machines working with a hydraulic system in the pressure range of 120-200 bar. Produces 10 pieces of standard briquettes 20*40*20 cm and paving stones.

Production requires working pallets on legs.
Concrete pressed in forms is pressed on pallets.
Products made in the same way are left to dry on work pallets.

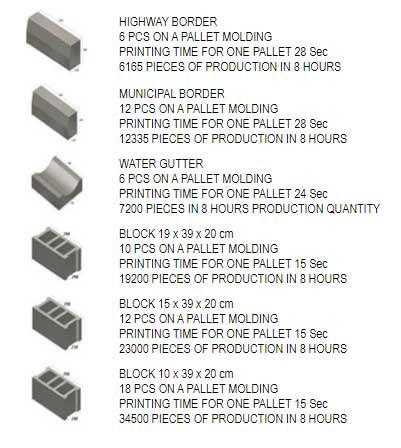

Productivity for a shift of 8 hours:

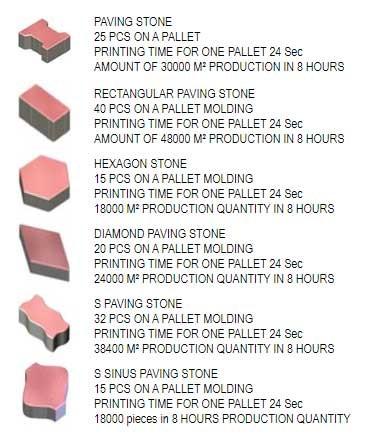

Paving tiles up to 480 m2

Border 6 165 pcs.

Hollow block 40*20*20 cm - 19200 pcs.

The working area of the mold is 110*88 cm.

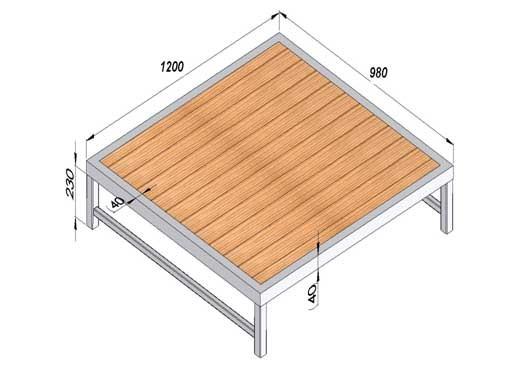

The size of the pallet is 120*98 cm.

Energy-saving products A+ (A PLUS)
EFF3 class electric motors
Free spare parts with the machine
Warranty - 2 years + 2 years, total warranty up to 4 years.
Compliance with the general quality management system ISO 9001:2008.
CE declaration of compliance with European standards.
"HIGHLINE" product models with qualified personnel
Fast service and warranty of spare parts.
Use of materials in accordance with DIN and TSEK standards.
(//tractor-service.com)
Simple program selection
Freedom of auto/manual selection
Authorization certificate at the end of the training period
Stop, hold and resume
The possibility of transportation by a forklift truck
Internet troubleshooting capability.
Compliance with the Low Voltage Directive.

Warranty 24 months.

The manufacturer carries out the chief installation of equipment and training of personnel.

SEMI-AUTOMATIC Option.

Required area in semi-automatic systems: Minimum 4000 m2 (400 m2 for machines and equipment, 2000 m2 drying area, 1000 m2 dry finished warehouse, 500 m2 aggregate storage area, empty pallet storage area 100 m2)

The total power of the transformer in semi-automatic systems should be 85 kVA.
The installed capacity is 60 kW.

The number of personnel required to operate the plant in semi-automatic systems: 9 people (2 operators and 1 driver of wooden pallets, 3 carriers of fresh products, 3 devices for supplying inert materials).

FULLY AUTOMATIC Option.

Required installation area in automated systems: Minimum 4000 m2 (600 m2 for machines and equipment, 1600 m2 dry area, finished dry warehouse area 1200 m2, unit storage area 500 m2, empty pallet storage area 100 m2)

General transformer or generator Power, generator for installation in automatic systems should be 110 kVA.
The installed capacity is 85 kW.

The number of personnel required to operate the plant in automatic systems: 3 people (2 operators and 1 forklift driver).

GENERAL INFORMATION ABOUT THE WORKPLACE.

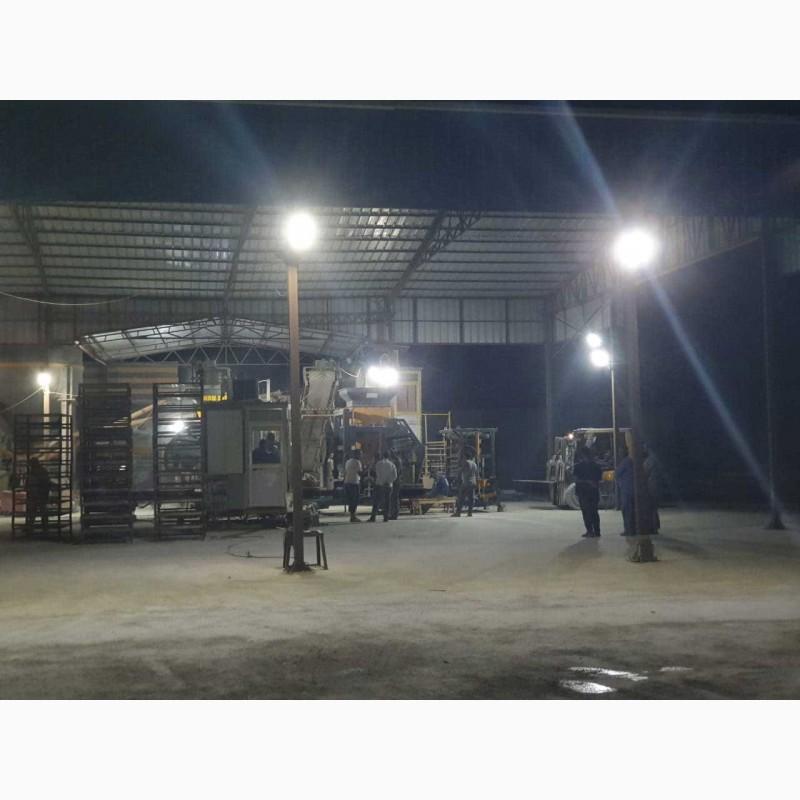

It is recommended to install a closed area of at least 600 m2 for equipment, empty pallets and a drying area for fresh products to protect against bad weather conditions.
