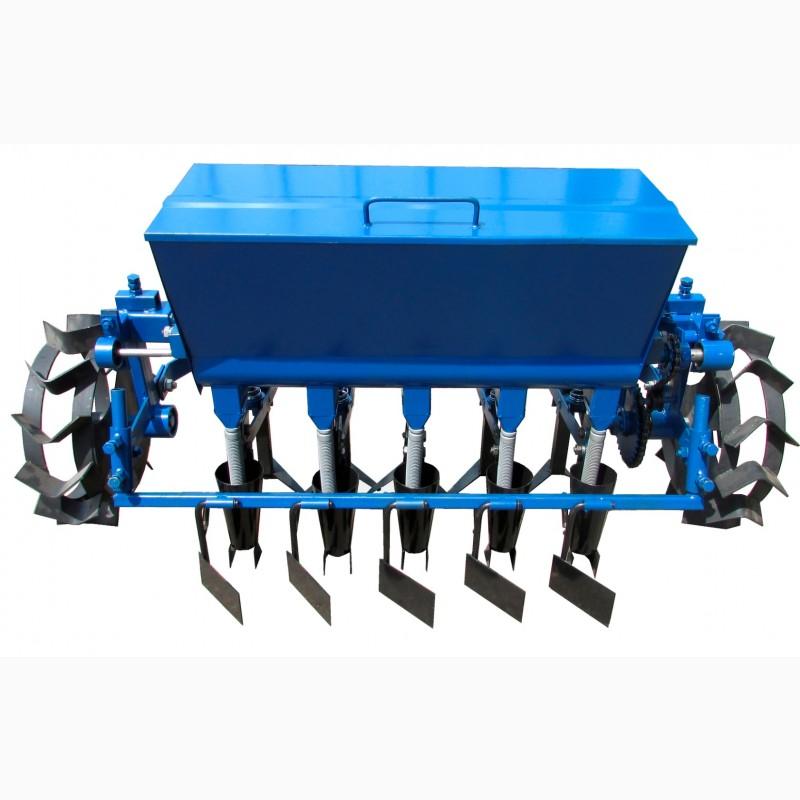

Seeder 5-row for motoblock (small-grain), СИ6, Kyiv

Small-grain 5-row seeder formotoblock SI6 simultaneously sows 5 rows with with a fixed row width of 140 mm. The seeder is intended for regular sowing of siderate grass crops with spherical seeds on previously processed and prepared soils. Can be aggregated with walk-behind tractors with a capacity of 6 hp or more. and motor tractors.

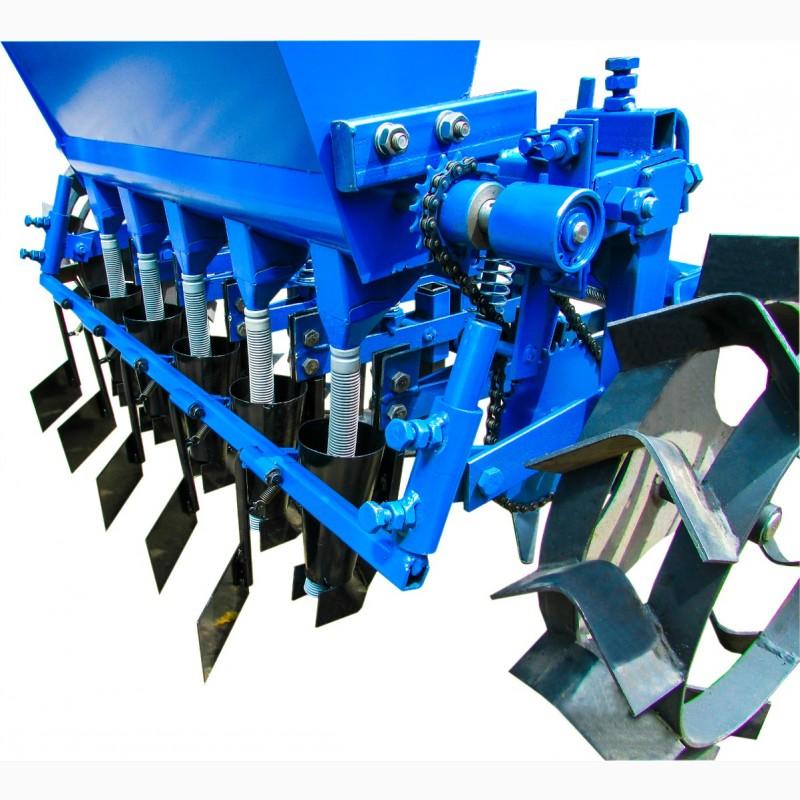

The dosing mechanism is actuated from the axis of the support-drivewheel by means of a chain transmission consisting of a system of sprockets, chains and a tension device. By adjusting the gear ratio of the chain transmission, you can change the intensity of sowing seeds in a row.(//tractor-service.com)

In front of each seeding device, a flat cutter adjustable in depth is installed for loosening compacted soil.

Dosing plates with 8 round holes with a diameter of 2.5 mm are supplied in the set with SI6 (completion with other plates is possible only by special order). Depending on the diameter and number of holes in the dosing plates, you can sow seeds of various crops (for example, chives, cabbage for seedlings, etc.). Adjustment of sowing depth is carried out with the help of height-adjustable naral (keel-shaped) or anchor coulters. For the correct operation of the seeder, it is recommended to use seeds calibrated according to the size of the holes of the dosing plate.
