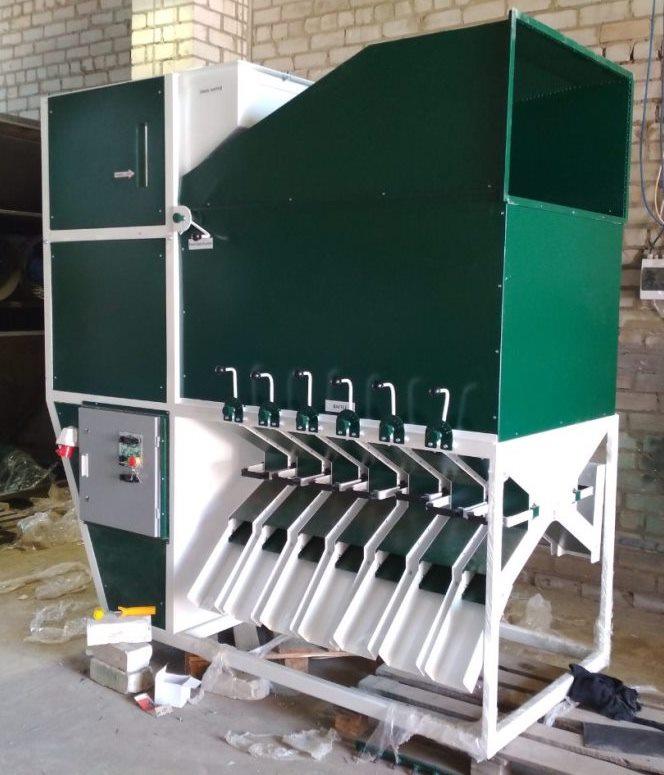

ISM-40 grain separator (cleaning and calibration of any grain), buy separator, Kharkiv region.

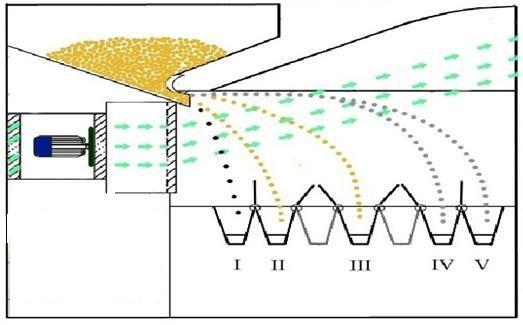

ISM — Impeller Separating Machine, sieveless impeller separator for cleaning and calibrating grain and seeds.

The best aerodynamic separator produced in Ukraine!
ISM is really the best machines today! Processing and calibration of grain according to grade with high accuracy. The constructions of nodes represent the latest technological achievements in grain processing. Accuracy of calibration of seed material guarantees 98% germination of grain after sowing.

- ISM-40 complete with one-way trays;

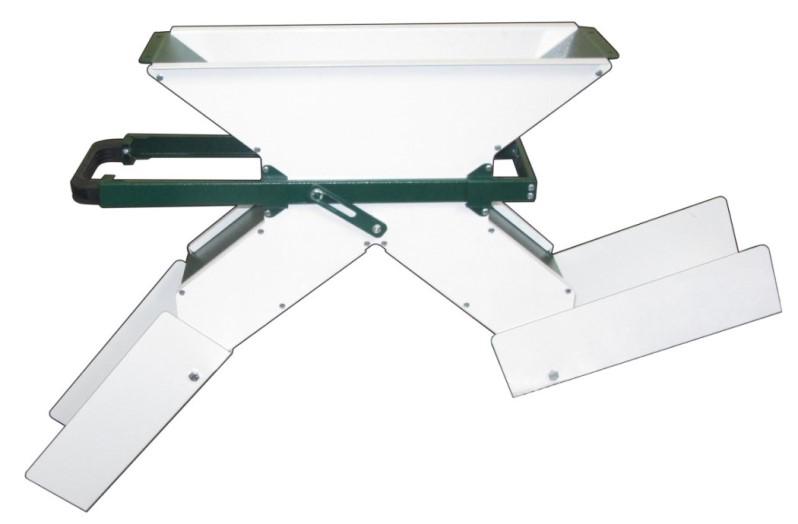

- ISM-40 complete with 2-sided folding trays:

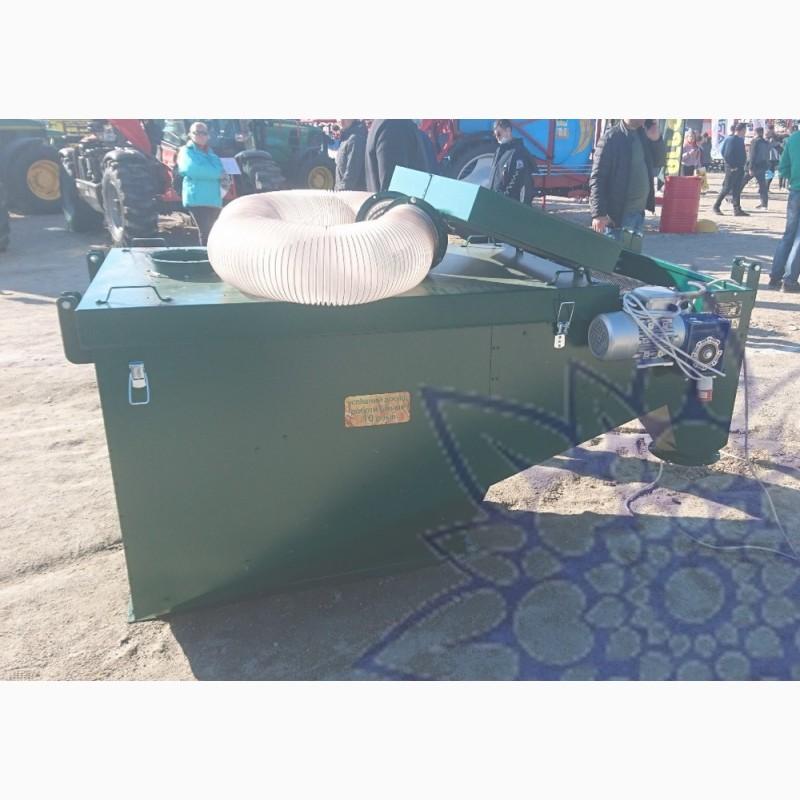

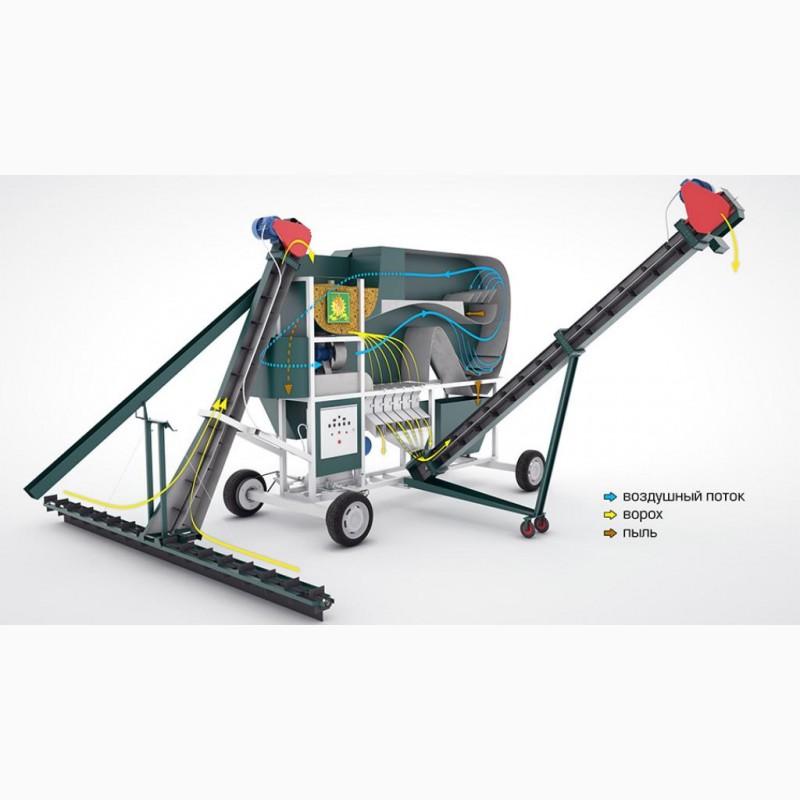

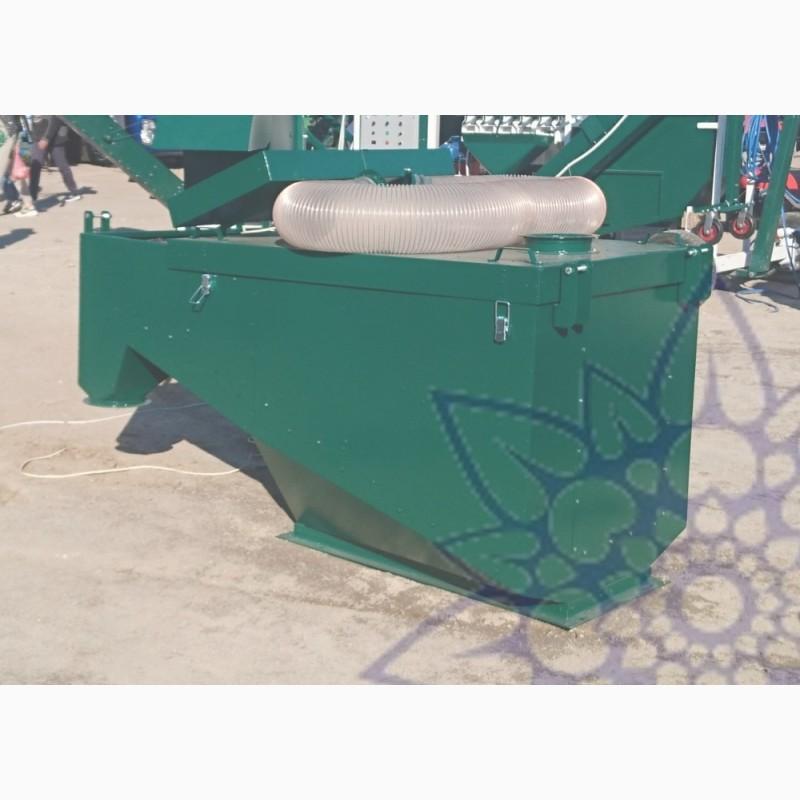

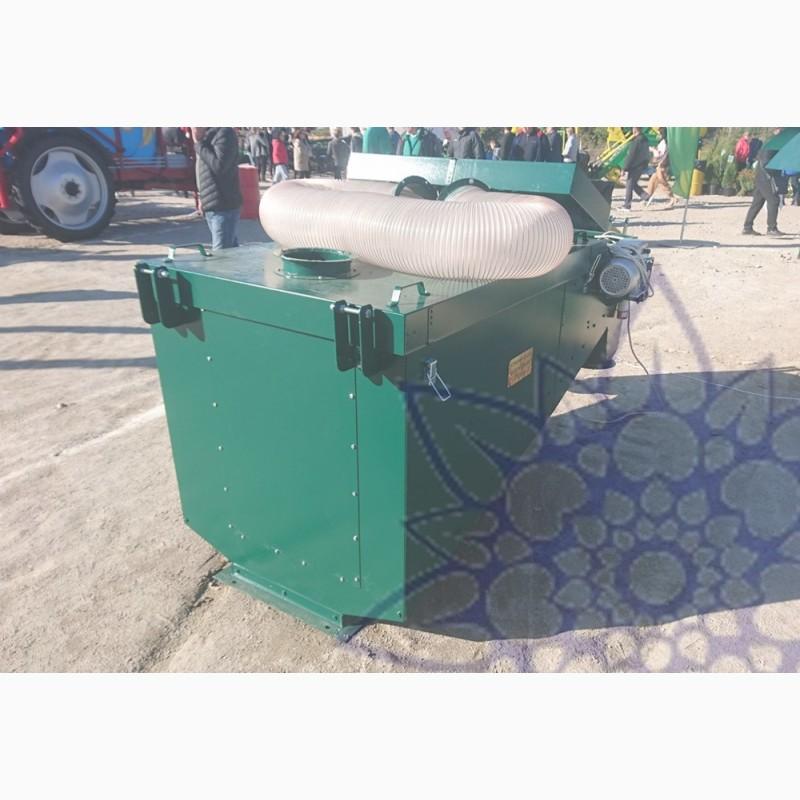

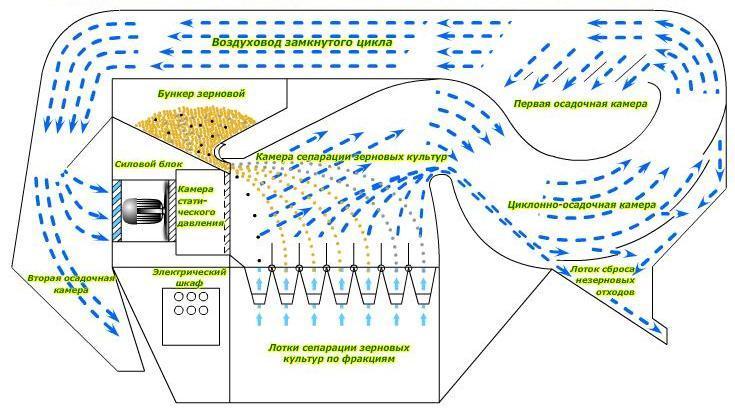

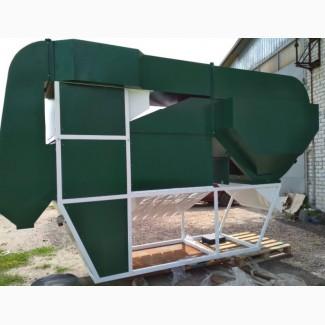

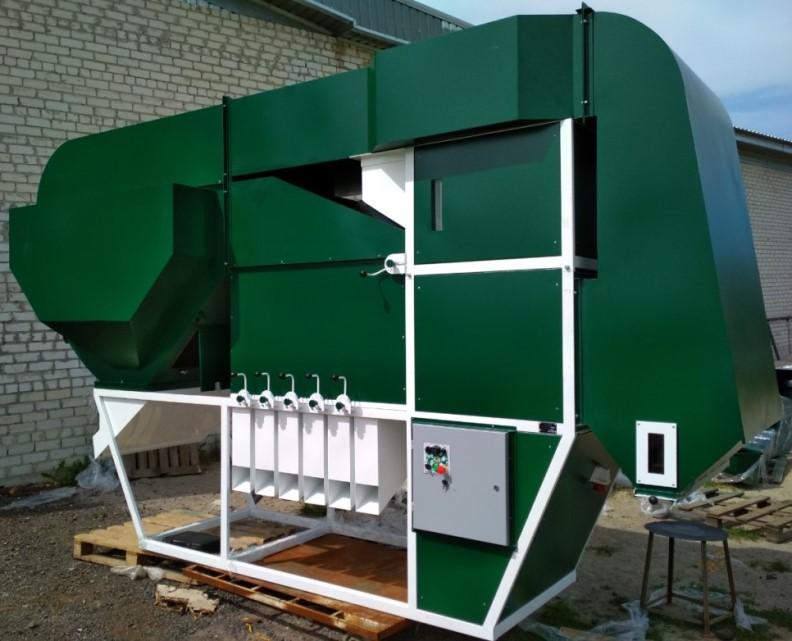

- ISM-40 with a cyclonic sedimentation chamber (CSC) will ensure operation practically without pollution of the environment.

In the cyclonic sedimentation chamber, a special labyrinth system of the air duct is combined with a system for changing its passage section. The system cleans the air by 98%, and with the use of additional filters provided in its design, by 100%.

Advantages:
- The possibility of installing the machine in closed rooms without additional air purification systems (air circulates inside the machine, it is not taken or thrown outside);
- Energy savings of up to 30%, compared to a machine without a cyclone-precipitation complex;
- Combining two units in one machine (separator+cyclone) allows you to reduce energy consumption to a minimum;
- Grain is dried due to warmer air circulating inside the machine;
- Dust and debris falls into a special tray;
- Increased noise isolation;
- Simplicity of design and management.

The price is conditional and depends on the date of your application, configuration and form of payment. We will be happy to answer all your questions by phone.

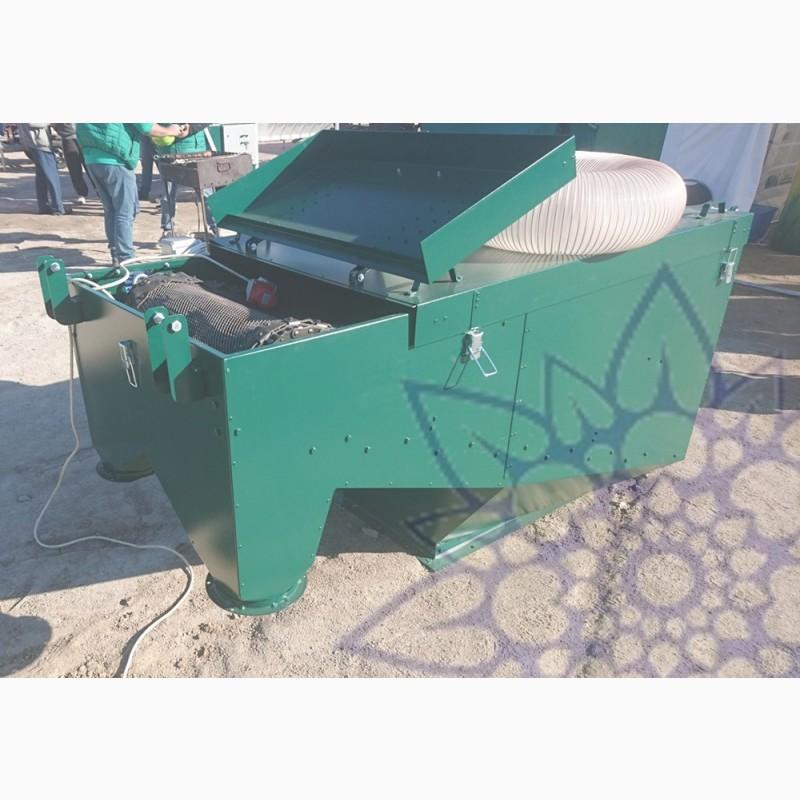

Pay attention to the APO-50 machine, which can work in conjunction with the ISM-40 and perform preliminary cleaning of the seed material before it enters the ISM (see video).

As of November 2022:

ISM-5, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 155 kg, dimensions l.2150/w.460/h.1750mm., 220V - c. 62,000 hryvnias, 380V - ts. UAH 65,000.;

ISM-10, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 165kg, dimensions d.2420/w.460/h.1880mm., 220V - c. UAH 72,000, 380V - UAH 75,000;

ISM-15, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 337kg, dimensions d.2310/w.650/h.2400mm., c. 125,000 UAH.;

ISM-20, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 355kg, dimensions d.2300/w.650/h.2400mm.), price: UAH 138,500;

ISM-30, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 360kg, dimensions d.2310/w.650/h.2400mm., c. UAH 149,700.;

ISM-40, cleaning 40t/h, calibration up to 20t/h, 2.2-6.0kW, 380V, 50Hz, weight 710kg, dimensions d.2310/w.1150/h.2400mm., c. 183,000 UAH.;

ISM-50, cleaning 50t/h, calibration up to 25t/h, 2.2-7.0kW, 380V, 50Hz, weight 710kg, dimensions d.2310/w.1150/h.2400mm., c. 198,000 UAH.;

ISM-100, cleaning 100t/h, calibration up to 50t/h, 4.0-11.0kW, 380V, 50Hz, weight 860kg, dimensions d.3130/w.1750/h.3017mm, c. UAH 399,000.;

ISM-5 TsOK, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 374kg., dimensions d.3200/w.1000/h.2000mm., 220V - c. UAH 88,000, 380V - ts. UAH 91,000; 190

ІСМ-10 ЦОК, очистка 10т/год, калібрування до 5т/год, 0,2-0,75кВт, 50Гц,, вага 420кг., габарити д.3400/ш.1000/в.2100мм., 220В - ц. 97000 грн., 380В - ц. 100000 грн.; (//tractor-service.com)

ISM-15 TsOK, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 685kg, dimensions d.4800/w.1150/h.2800mm.), c. UAH 193,500; 195

ІСМ-20 ЦОК, очистка 20т/год, калібрування до 10т/год, 1,5-3кВт, 380В, 50Гц, вага 690кг., габарити д.4800/ш.1150/в.2800мм., ц. 206800 грн.;

ISM-30 CHOC, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 760kg, dimensions d.4800/w.1150/h.2800mm., c. UAH 225,400.;

ISM-40 TsOK, cleaning 40t/h, calibration up to 20t/h, 2.2-6.0kW, 380V, 50Hz, weight 1100kg, dimensions d.4907/w.1574/h.2864mm, c. UAH 269,000;

ISM-50 TsOK, cleaning 50t/h, calibration up to 25t/h, 2.2-7.0kW, 380V, 50Hz, weight 1100kg, dimensions d.4907/w.1574/h.2864mm., c. 290300 UAH.;

ISM-100 TsOK, cleaning 100t/h, calibration up to 50t/h, 2.2-7.0kW, 380V, 50Hz, weight 1600kg, dimensions l.6382/w.2250/h.3682mm., c. UAH 465,700.;

SOC-25 c. UAH 520,000;

SOC-30 c. UAH 530,000;

APO-5 c. UAH 80,800;

APO-50 c. UAH 162,000.

Additional equipment:
- mosquito net bag for ISM-5, ISM-10, etc. 600 UAH.
- setwheels for ISM-5, ISM-10, ts. UAH 700.
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 2 trays, c. UAH 750.
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 3 trays, c. UAH 850.
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 4 trays, c. UAH 960.
- U-shaped connector for ISM-5, ISM-10 for all trays (2,3,4), c. UAH 260.
- net (sieve) up to APO-5 (6,8,10,12,14 mm and more) c. UAH 6480.
- mesh (sieve) up to APO-50 (6,8,10,12,14 mm and more) c. UAH 13,500.
- application of a rubber layer on the inner walls of the machine to protect the seeds of leguminous crops from splitting, c. UAH 2000.
- auger for ISM-5, ISM-10, ISM-5 Tsok, ISM-10 Tsok, c. UAH 51,200.

Video APO-5:
https://youtu.be/CqOwCpm8f8U
*
Video APO-50:
https://youtu.be/VkxC7yRTDyw
*
Video Unitpre-cleaning of grain APO:
https://youtu.be/vdA2w1B1PcY
*
Video ISM-5Grain separator:
https://youtu.be/MuiW7pcM5vI
