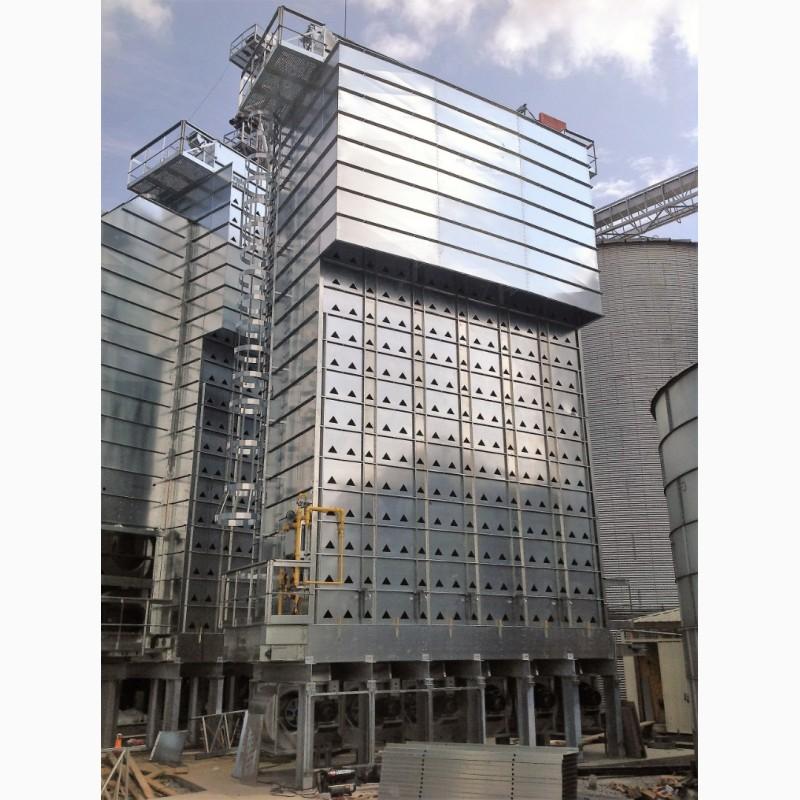

Grain Handler GH 2410 grain dryer, Kyiv

Gravity grain dryer of the pumping type with mixed cold and hot air flow. It works in flow drying mode with cooling.

Specification and technical parameters
Model GH 2410 stationary
Type of fuel GAS liquefied/ natural
Gas evaporator (heater) Integrated into the air heating system of the drying room. 1pc.
Gas consumption per 1 t/%, propane liter, at t°C outside +10°/ 5° 0.91-1.24
Gas consumption per 1 t/%,
methane m³, at t°C outside +10° /-5° 0.85-1.1
Gas consumption, max, propane liter/hour. +10°C/-5°C 245.7/334.8
Gas consumption, max, methane m³/h. +10°С/-5°С 230/297
The number of medium-pressure diametrical fans (adjustable flow) 6 pcs.
Power consumption 380V 50Hz 60 kW/hour
Manufacturing material Galvanized steel 350 g/m²
Size W – L – H (m) 2.75*7.3*8.8
Weight empty dryer/filled 12.43/68.44 tons
Total capacitygrains 56.01 tons
Fill level sensor Mechanical. Operating temperature +150/-60 1 pc.
Working drying temperature °C 35-107
Grain temperature sensor pcs. 8
Coolant temperature sensor pc 1
Productivity per hour(//tractor-service.com)
at 10℃ Tone (when removing 10% of moisture) 27
Productivity per day on average at 10℃ tons (when removing 10% of moisture) 630-650
(depending on the properties of the kurudza hybrid)
Volumetric air supply m³ 139,863
Burner power
(modulation) megawatt hours 4.395
Gas vaporizer (heater) Standard 1 pc.
The number of workers near the drying room Person 1
Control cabinet Standard 1 pc.
Complete control cabinet Motors, protection machines, time delay relays, transformer and others. SIEMENS
Gas burner Linear MAXON 1 pc.
Honeywell burner controller 1 pc.
The productivity of the grain dryer is calculated for biologically ripe grain.
The cost of an aspirator + transporter-scalper is USD 10,860, incl. VAT.

The price includes delivery to the customer's farm, installation, configuration and staff training.
The factory warranty is 5 years.

The cost of gas equipment with installation, start-up and adjustment, excluding coordination and documentation:
with a capacity of 54 cubic meters. - UAH 563,000.00.

One of the advantages is that the standard equipment includes an evaporator (heater), which ensures uninterrupted operation of the grain dryer. When choosing gas equipment, there is no need to buy an expensive vaporizer (heater).
We adapt loading/unloading to the needs of the farm. It is possible to install it under the ZAV, install an operational bunker with ventilation. And other options depending on the conditions of the farm.
