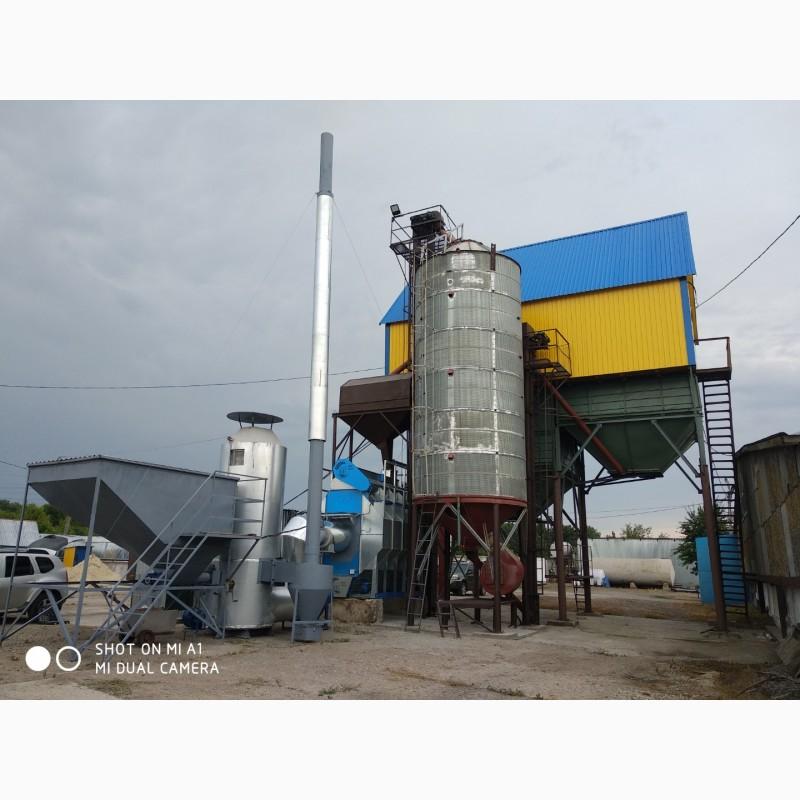

Grain dryers on alternative fuel, Kirovohrad region.

Structure of the heat generator: combustion chamber, heat exchanger built into the middle of the heat generator, which is made of heat-resistant stainless steel of European production, air intake, (which is located from the top) fuel hopper, chimney, main fan, blowing, smoke extractor, heat generator control panel.
The heat generator is insulated with heat-resistant thermal insulation with a thickness of 50 mm, which allows you to reduce fuel consumption and increase efficiency.
The design of the heat exchanger allows easy removal of ash without stopping the drying process.
The design feature of the heat exchanger prevents ignition of oil and grain crops in the grain dryer.

The principle of operation of the heat generator: Fuel is automatically fed into the combustion chamber by an auger and burned, then the main fan takes air from the top and through a heat exchanger with a temperature of 40 to 120 degrees Celsius, clean air without CO (carbon monoxide) is blown into the grain dryer, and combustion products exit through the chimney.

Control panel: the set air temperature at the exit from the heat exchanger is automatically maintained from 40 to 120 degrees. Also, the remote control can be equipped with a soft start or a frequency converter of the main fan motor, which reduces the starting currents when the main fan is started. The control panel is equipped with a network gateway, which allows you to monitor the drying process from a mobile phone, laptop or computer, see when the heat generator was turned on, at what temperature it worked and when it turned off.

The type of fuel for the heat generator can be:Sunflower waste, rapeseed, soybeans, cobscorn , small cod, pellets, etc. To remove 1 ton-percent of moisture, 2.5-3 kg of s/h of waste or about 2-3 kg of pellets are used. One worker is enough for the maintenance and operation of the heat generator andgrain dryer, ash cleaning is carried out once a day, which takes 20 minutes.

Safety measures: In the event of a power failure, the furnace is opened and the heat is swept out of the combustion chamber. The heat exchanger does not suffer any damage.

The grain dryer works in flow (continuous) mode and is capable of reducing moisture by 15 percent or more in one grain pass;
Thanks to precise temperature control, the dryer perfectly dries not only grains and corn, but also soybeans, rapeseed, sunflower and seed;
The universal form of perforation of stainless steel or galvanized steel grates allows you to dry different crops without the need to change the grates.
The body made of high-quality galvanized steel provides long-term protection against corrosion.(//tractor-service.com)
The grain dryer is very compact and easy to maintain and operate, it can be mobile and move with the help of towing.
It is easily mounted and dismantled, does not require the construction of special foundations.
The design of the grain dryer allows you to increase its productivity by building it up modularly or section by section.
It can very easily complement the existing technological scheme of grain receiving, cleaning and storage complexes.
Productivity for drying corn, depending on the selected model and humidity, is 50 - 300 tons per day.
A large selection of models of dryers, their configurations and options allows you to satisfy the need for drying and preserving the crop of both a small farm and a large elevator.
