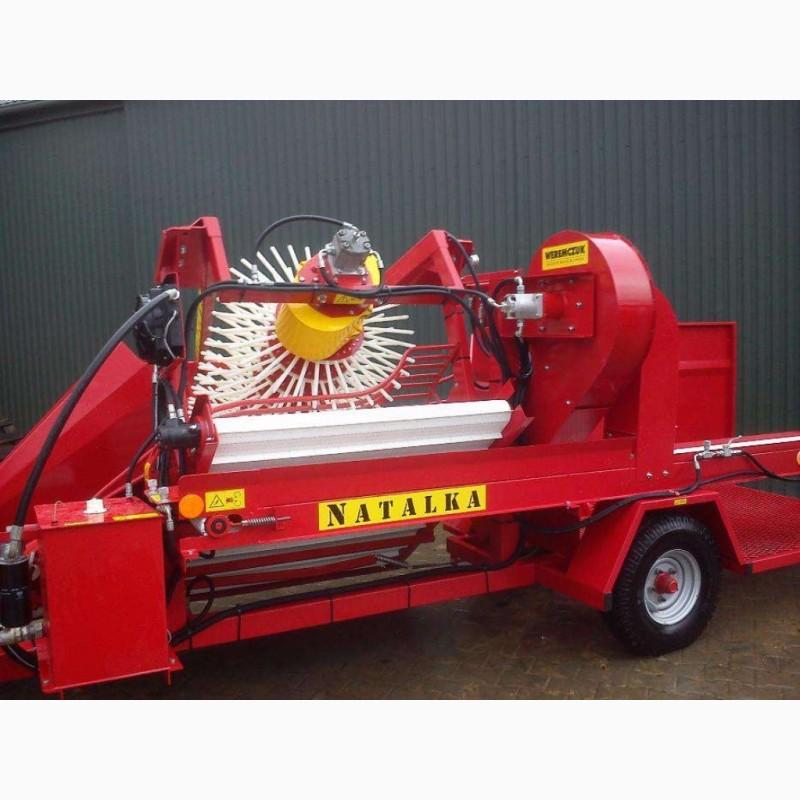

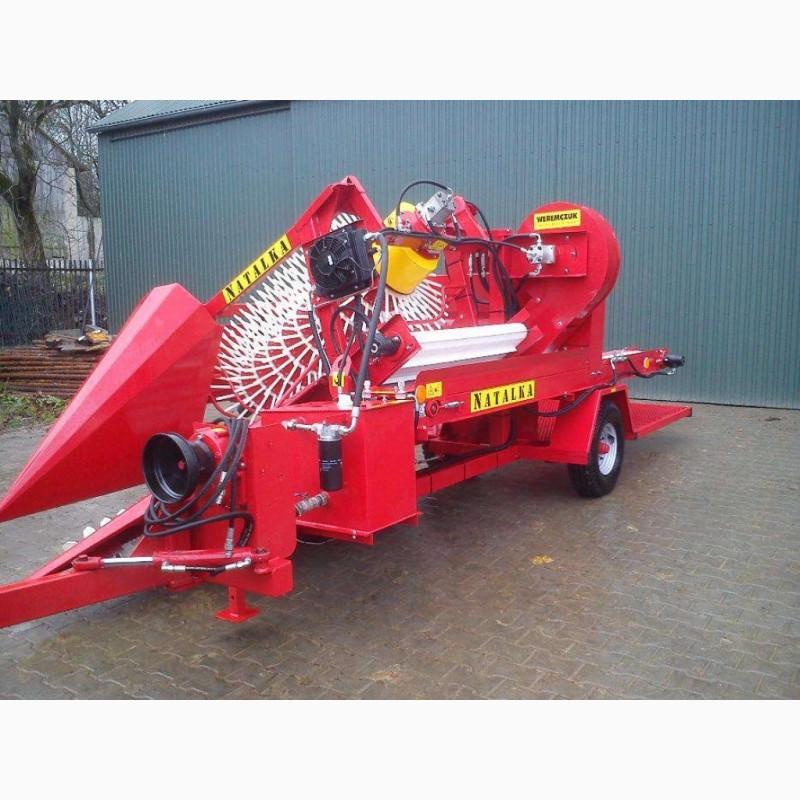

Natalka half-row combine harvester, Dnipropetrovsk region.

The Natalka harvester is intended for harvesting remontant (autumn) raspberries. This harvester is the only model in the world among half-row harvestersharvesters for harvesting remontant (autumn) raspberry varieties grown without a trellis. The harvester is adapted to multiple harvesting during fruiting and can serve a plantation with an area of ​​3-4 ha. It is equipped with a berry harvesting system based on a distributor (shaker). This is a proven system that guarantees effective, high-quality harvesting and the absence of a negative impact of mechanical harvesting on the harvest in the following years.

The method of using the combine:
The harvester runs into a row of raspberries, splitting it in half. With the help of a picker, half a row of raspberry shoots is introduced into the space of the distributor (shaker), thereraspberry, falling on the conveyor belt, moves and is partially cleaned, then it is sent to the installed boxes. Of course, the fruits are harvested in small boxes of 5-10 kg. Filled boxes are selected and placed on the platform by a service person. To remove all the berries, you should once again drive into the row from the other side.

Standard equipment of the combine:
Hydraulic drives of working units.
Infinitely adjustable speed of the fan and distributor (shaker)
Smooth adjustment of conveyor belts, belt delay function(//tractor-service.com)
Fruit sorting table

Required plantation parameters:
The raspberry variety is suitable for mechanized harvesting.
The minimum distance between rows is 2.80 m.
The width of the productive strip (at the base of the shoots at ground level) is up to 50 cm.
The height of the plants is 1.30 m - 1.80 m.

If you need additional technical characteristics and you have questions about the operation of the combine, we are happy to help and advise!!!
