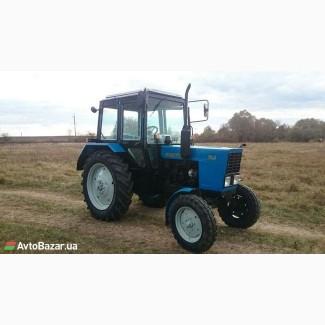

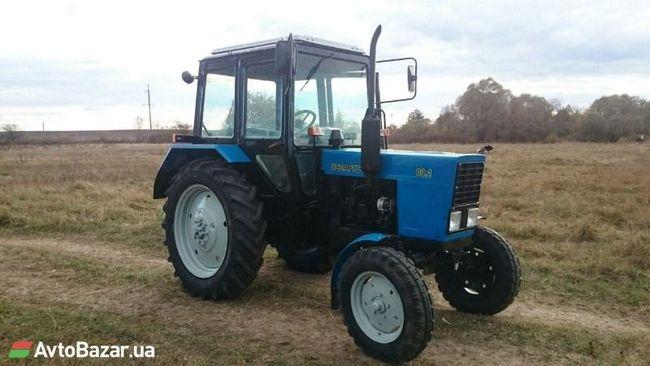

The tractor is intended for performing various agricultural works with mounted, semi-mounted and trailed machines and tools, work on transport.
Power, hp/kW 81, 6/60
Wheel formula 4K2
Technical characteristics
Engine
Diesel type without turbocharging, with direct fuel injection.
Power, hp/kW 81, 6/60
Model D-243
Nominal frequency of rotation of the crankshaft,
rpm 2200
Number of cylinders, pcs. 4
Cylinder diameter/piston stroke, mm 110 x 125
Working volume, l 4, 75
Maximum torque, N·m 298
Torque reserve factor, % 15
Capacity of fuel tanks, l 130
Transmission
Gearbox mechanical, stepped
The clutch is dry, single-disc.
Number of forward/reverse gears 18/4
Driving speed, km/h: forward/backward 1, 9–34, 3/4, 09–9, 22
Rear PTO:
(//tractor-service.com)
independent I, rev./min. 540
independent II, rev./min. 1000
synchronous, vol./m puti 3, 4
Differential lock of the rear axle: with hydromechanical control, has two positions (off; forced on).
Hydraulic system
Load capacity on suspension axles, kg 3200
Maximum pressure, MPa 20
Productivity
pump, l/min. 45
Capacity of the hydraulic system, l 25
Sizes and mass
Total length, mm 4120
Width, mm 1970
Height along the steering wheel, mm 2780
Tractor base, mm 2370
Track, mm
on the front
wheels 1350 - 1850
on the rear wheels 1800 - 2100
Agricultural clearance, mm 645
The smallest turning radius, m 3, 8
Operating mass, kg 3770
Размеры
tyre (standard):
front wheels 9, 0 - 20
rear wheels 15, 5R38
