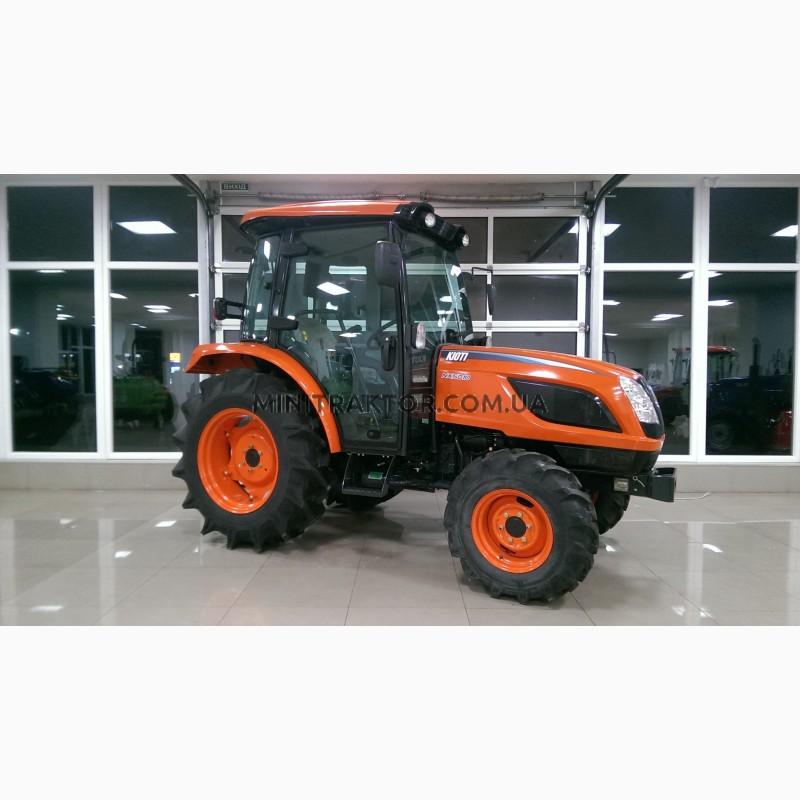

KYOTA NX4510 tractor, Kirovohradska region.

The new powerful 4A220LWMC engine (45 hp) expands the capabilities of the universal tractor, while maintaining high standards of reliability and low fuel consumption (4.5 liters during operation).

KIOTI engines develop maximum torque already at 1700 rpm, which greatly simplifies work and allows you to save fuel when performing energy-intensive tasks.

The clearance of 376 mm and the increased size of the front wheels (9.5-15) will save you from difficulties when performing work on uneven surfaces and in difficult conditions: in the forest, agriculture, when clearing a large amount of snow.

The small turning radius (2.99 m), together with the compact dimensions of the universal tractor, greatly simplify work in small areas and in the cramped conditions of city yards, summer cottages, closed parking lots, orwarehouses.

Regulates the depth of cultivation in automatic mode, correcting the depth of the plow when the density and topography of the land change, preventing the tractor with the plow from "burying" in the ground.

Technical characteristics:

Engine

Manufacturer Daedong Ind., South Korea

Engine type Diesel, 4-cylinder, with liquid cooling

Power 45 hp. (33.6 kW) at 2600 rpm

The volume of the engine is 2197 cubic cm.

Transmission

Complete drive (4x4), connected hydraulically

Type of gearbox Mechanical

Number of gears 24 forward / 24 reverse

Synchronized transmissions 4 forward + 4 backward

Lockable rear differential

Disc brakes in an oil bath

Power take-off shaft (PTO)

Rear power take-off shaft 540/540E rpm

Average power take-off shaft 2000 rpm

Front PTO shaft 2000 rpm (option)(//tractor-service.com)

PTO activation Hydraulically (independently)

Coupling device

3-point hinged device of category 1

The load capacity at the ends of the rear levers is 1605 kg.

Hydraulic system

Productivity of the hydraulic pump is 62.4 l/min.

Hydraulic booster Hydraulic booster (hydraulic independent)

Wheels

Front (agricultural profile) 9.5-16

Rear (agricultural profile) 13.6-26

Movement speed

Forward, km/h 0.18 — 26.60

Back, km/h 0.16 — 23.64

Mass and dimensions

With safety arc (L × W × H) -

With cabin (L × W × H) 3547/ 1665 / 2415 mm

Ground clearance 376 mm

The minimum turning radius is 2.99 m

Mass with security arc -

Mass with cabin 1992 kg

The volume of the fuel tank is 56 l.
