Motoblock Scout 8 hp Electric start+1.10 cutter+plow+wings+2 r Warranty, Ivano-Frankivsk region.

Motoblock Scout GS 81 DE, 8 hp with electric start + cutter 110 cm + set of wings and belt protection included! Warranty 2 years!

Be careful! Beware of fakes, the original scout has the factory molding "SCOUT" on the gearbox and a strain on the belt protection!

Features of this model:
- economical engine with incredible power!
- 2-year warranty
- milling cutter 110 cm
- a set of mudguards and belt protection as a gift, which is very useful when moving long distances!
- ZIP.

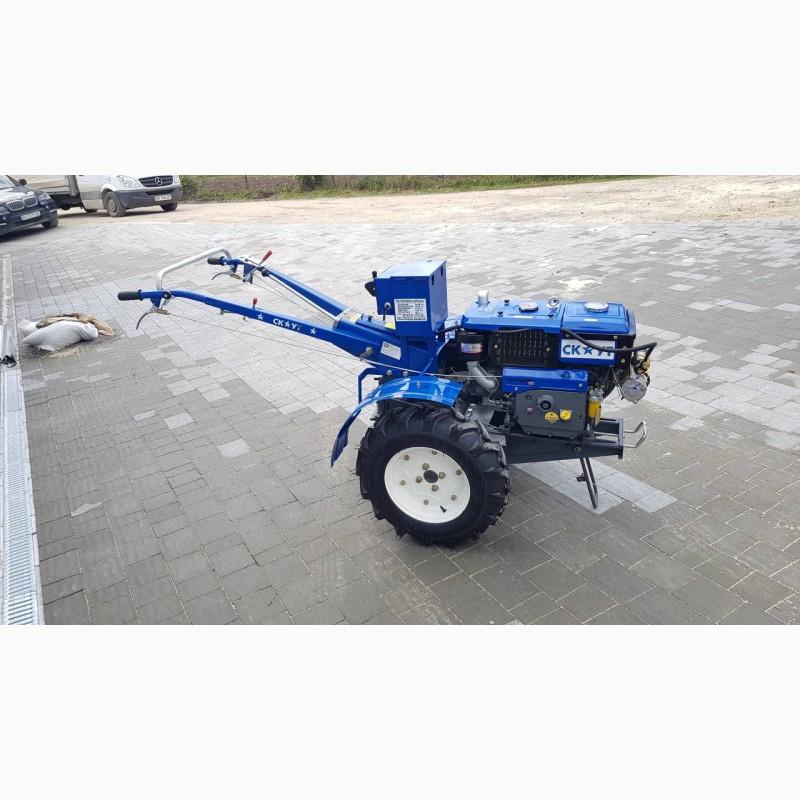

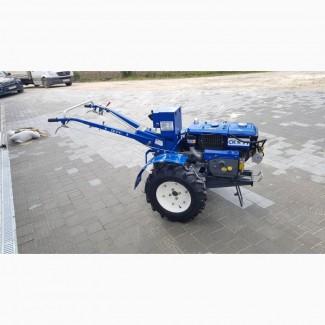

The Garden Scout GS 81 DE motoblock with an electric starter + soil tiller is a device without which agriculture can be in an insignificant state. Together with it, you can use various attachments that can expand the functionality of the walk-behind tractor. The motoblock is equipped with a diesel engine capable of unprecedented power.

Technical characteristics of the Garden Scout GS 81 DE walk-behind tractor:

Type: horizontal position diesel four-stroke engine 180ANE with water cooling and electric starter system
Cylinder diameter: 80 mm
Piston stroke: 80 mm
Engine capacity: 402 3
Maximum power: 8.8 liters. p.
Nominal capacity: 8.0 liters. p.
Nominal speed: 2200 rpm.
Cooling system: Condenser
Direction of rotation of the flywheelwheel: Anti-clockwise
Lubrication: Gear pump with spray lubrication system(//tractor-service.com)
Starting the engine: Manual starter (Z - shaped handle) + electric starter
Injection pressure: 12753 kPa (130 kgf/cm2)
Fuel injection advance angle: 22 ± 2 to top dead center
Intake valve clearance (cold engine): 0.25 ± 0.05 mm
Exhaust valve clearance (cold engine): 0.30 ± 0.05 mm
Engine weight: 80 kg
Overall dimensions of the engine R180AN: 740*400*560 mm
Overall dimensions: 2180 x 890 x 1250 mm
Ground clearance: 204 mm
Design weight of the walk-behind tractor (without attachments): 238.4 kg
Weight of the walk-behind tractor with tiller, plow and seat - adapter, net: 331.95 kg
Wheels: 6.00 -12 (GB1192-82). herringbone tread pattern
Pressure intyres, field conditions: 80 ~ 120 (0.8 ~ 1.2 kg lb/cm2)
Tire pressure, transportation: 140 ~ 200 (1.40 ~ 2.00 kg lb/cm2)
PTO speed: 1176 rpm. / min.
Drive from the engine: A pair of V-belts B1750 in constant tension
Nominal loading weight for the trailer: 1000 kg
Ballast massdrive wheel: 60
Clutch: Single disc, dry type, with constant clutch, friction type
Gearbox: Combined type (3 + 1) × 2, driven by a cylindrical gear
Final drive: Single-stage straight-toothed cylindrical gear
Steering mechanism: Lockable, with rotary collar.
Brake: Ring type with internal pads
The volume of lubricating oil in the gearbox: 5 l
Cultivation width of tiller: 110 cm
Total weight of the tiller: 56.1 kg.
