Motoblock DTZ 510DN. 3+1 Transmission. DIESEL 10 hp, Volyn region.

Motorblock DTZ 510DN - a new line of motorblocks from DTZ, which are famous for their quality and the presence of a reduced transmission.

DTZ 510 DN replaced the popular DTZ 576 D model. What's new in it? First of all, a new 10 hp diesel engine. An improved oil-type air filter with a cyclone, now wheel unlockers are installed on the walk-behind tractor, which allows turning on the spot.

Advantages:

powerful 10 hp a diesel engine that has no analogues has a tremendous reserve of power, which will allow you to increase the processing width up to 1500 cm. When operating a trailer with such an engine, you will be pleasantly surprised by the traction capacity of the device.
warranty for the entire model range of TM DTZ motoblocks - 2 years.
well-thought-out ergonomics of control of the walk-behind tractor, all controls are located intuitively, taking into account maximum safety for the operator.
aesthetic shape of the wings, ergonomically fit into the overall design of the unit.
a correctly selected steering column that smoothly transitions into an updated steering wheel;
the steering wheel has a bar for rigid fixation of the steering wheel with a decorative overlay, which creates a feeling of full control over the walk-behind tractor when working under extreme loads.
increased thicknessknife of tiller by 10% in relation to competitors.
high-quality paint coating will preserve the appearance of the new walk-behind tractor for a long time;
CPP on 3+1;
a new improved air filter will provide the engine with clean air and extend its service life.
the presence of a differential will ensure the unit's maneuverability during transportation and turning. Very easy to use and design.

New paint scheme. Steering wheel turning and tilting mechanism. Transportwheels 4.00-10 in a set.

The air contact-oil type is equipped with a transparent cyclone. Gearbox with a drive through a multi-disc normally open clutch

Bulky protective casing on the muffler. Additional wing extenders. Strong front bumper with carrying handle and consoles for transporting cutters

3-speed gear transmission with a bevel gear for the milling cutter. 4.0 l fuel tank with inlet and outlet screens and maximum fuel level indicator.

Tiller (1+1+2)+(2+1+1) processing width 620; 880; 1140 mm, Reinforced fastening of knives. Rigid brackets of protective wings. Protection of bearings from dust

A new lever of a non-baked clutch, bright color and ergonomic shape. Locking the reverse lever against accidental activation. New gas valve(//tractor-service.com)

Overtaking unlockers on wheel hubs

Monobloc type trailing device with processing depth limiter. Longitudinal GDP for connecting active trailer equipment

General features of TM "DTZ" walk-behind tractors

"DTZ" motoblocks are included in the premium segment of agricultural machines of this class in terms of manufacturing quality, reliability, equipment and equipment and are significantly superior to motoblocks of other brands. Confirmation of reliability is the manufacturer's extended 2-year warranty for all models of walk-behind tractors of this line. These walk-behind tractors are the most convenient and safest for the operator, distinguished by well-thought-out ergonomics of controls, ease of operation and maintenance. Aesthetics have not been forgotten either - the new shape of the wings, the elegant curve of the steering wheel handles, the smooth lines of the steering column cover and the protective cover in combination with the strong, bright paint finish are frankly pleasing to the eye.

All DTZ walk-behind tractors have a 3-speed gearbox, not a 2-speed one, as on walk-behind tractors of other brands. An additional reduced gear provides ideal movement speed for planting and harvesting with precision and accuracy unattainable for other walk-behind tractors. In addition, the reduced speed provides additional comfort to the operator: in the process of work, you can calmly walk at a leisurely pace, and not run after the walk-behind tractor across the field.

Another important difference is the presence of overtaking unlockers on the transport wheels, which make it much easier to turn and turn the motoblock, giving the opportunitywheels to rotate at different speeds when turning, i.e. acting as a differential.

A safe multi-disc clutch of the normally open type provides a much higher degree of safety and ease of operation of walk-behind tractors, greatly simplifies and facilitates the process of starting the engine and controlling the walk-behind tractor, since one lever is used instead of two. You can safely start the engine and switch to any gear - the walk-behind tractor will remain motionless. The rotation of the power take-off shaft together with the attached equipment will not start, and therefore there will be no sudden danger to the operator and to the environment. To start the movement, it is enough to press the clutch lever with a slight effort. If the clutch lever is released, the walk-behind tractor will immediately stop, but the engine will not stop, but will continue to work, there is no need to start it again and again every time.

The safety lock of the reverse lever ensures a higher degree of safety of operation of the walk-behind tractor, eliminates the possibility of accidentally switching on the reverse gear. Now you can press the lever only after first pressing the fuse, that is, with the new lever, the probability of error is reduced many times. This is very important, because the wrong choice of the direction of movement can lead to breakdowns and even injuries. The "hand throttle" lever has a strong all-metal body and a convenient knob for adjustment. The steering wheel handles are comfortable and soft, they don't slip out of your hands.

Description and brief characteristics:

The DTZ 510DN model is equipped with a 4-stroke diesel engine with a power of 10 hp, a powerful gearbox with a bevel gearbox. The engine is equipped with an inlet contact-oil type filtration system with a transparent cyclone, which improves the protection of the engine from abrasive particles in the air.

The delivery set includes:

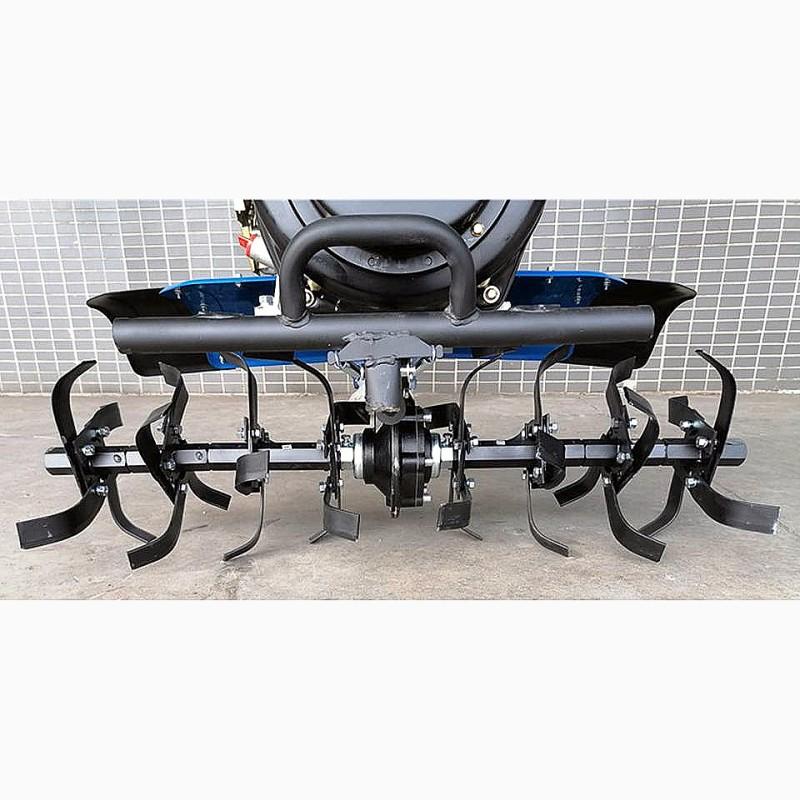

Collapsible cutter: (2+1+1) rows of knives on the right + (2+1+1) rows on the left. The thickness of the cutter knives at the base is 6 mm.
Transport wheels 4.00-10

Connecting an active pendant :

Behind the checkpoint is a longitudinal GDP and a motoblock-type towing device for connecting active towing devices.
