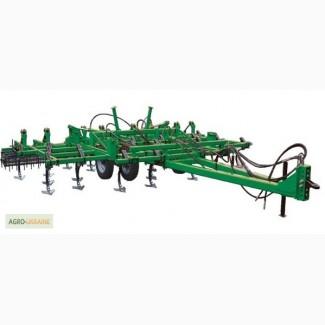

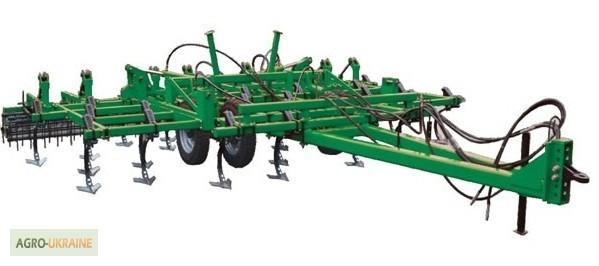

Cultivator KPG-8-2, Donetsk region.

I will sell a CultivatorKPG-8.2 5-row is intended forcontinuous pre-sowing soil processing and steam processing with simultaneous harrowing and rolling, soils with specific resistance up to 0.5 kgf/cm² (0.05 MPa) and humidity up to 27%.

For aggregation, it is recommended to use a tractor, traction class — 3.0‒4.0

According to the customer's order, the cultivator can be supplied with various arrow legs from 180 to 330 mm, while the number of working parts of the unit varies. Due to the placement of working bodies in 5 rows, uniform passage of even coarse-stalked crop residues is ensured without clogging the unit.

Structural features include five rows of spring-loaded uprights with a 260 mm gripper paw, three rows of spring combs, and a rolling roller.
The use of a 5-row arrangement made it possible to achieve high-quality leveling of the field surface, and a tandem of spring combs and a rolling roller forms an even mulched field surface.

To level the field surface, a spring comb with an adjustable angle of attack of the teeth is located behind the working bodies of the cultivator. The final crushing of earth blocks and leveling of the field surface is carried out by tubular rollers. If necessary, the specified functions of KPG-8 can be easily dismantled completely or partially (comb or roller).
Unit typetrailer (//tractor-service.com)
Width of capture (m) 8.2
Paw grip width (mm) 260
Processing depth (cm) 6‒13.5
Number of working bodies (pcs) 34
Working speed (km/h) 12
Productivity (ha/h) 8
Unit weight (kg) 4100
Length (mm) 6100
Width (mm) 5100
Height (mm) 3800
Required power of the tractor (hp) 150‒200
Tractor traction class 3.0‒4.0
