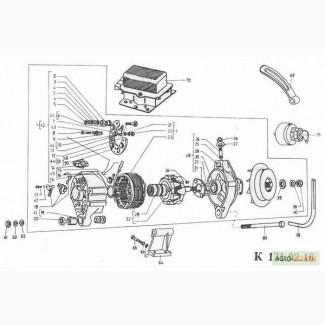

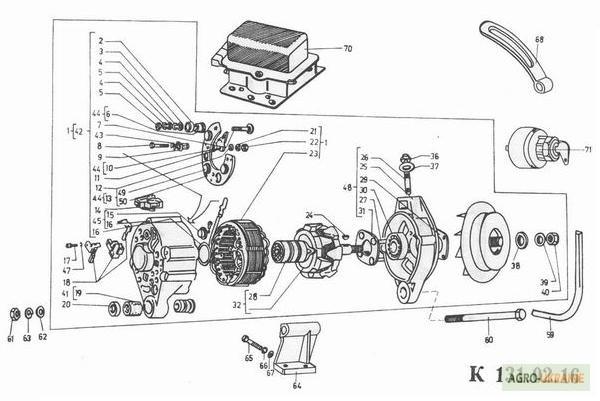

Generator G-221 for a D2500k engine for a Balkankar loader, Kharkiv region.

Position no.
Catalog No.
positional number
Name
1
6 455552 4566693974
В2871593
Generator G221
2
7 455567 4566694057
В31157182
Belt pulley (assembled)
3

26800
Rear shield and stator
4

26800
External insulating sleeve
5

26800
Flat washer
6
6 239316

Washer 2-8L BDS 833-82/Zn
7
6 223660

Nut M6-8 BDS 744-83/fos.
8

26800
Oplotnenie raspornoe
9

26800
Oplotnenie raspornoe
10

Bolt A1 M4-25-8.8 BDS 1230-85/fos.
11

26800
Insulation cork
12

Bolt M6x1-6gx35 BDS 2657-81/8.8 fos.
13

26800
Insulation plate
14

26800
Washer
15

26800
Holder with rectifiers with normal polarity.
16

26800
Connecting pad
17

VA-20 TU
Rectifier with reverse polarity
18

26800
Ring
19

Screw I M4x16 BDS 8226-76/5.8 fos.
20

26800
Brush holder with brushes
21

26800
Rubber sleeve
22

26800
Bushing
23
6 233474

Washer 2-4L BDS 833-82/Zn
24

26800
Nut
25

26800
Stator with winding II variant
25

26800
Stator with winding I variant
26

26800
The key is segmented.
27

26800
Front shield
28

26800
Pin
29

Rivet BDS 1886-72/Zn
30

Ball bearing 6201 2RS P64
31

26800
Outer bearing cover
32(//tractor-service.com)

Ball bearing 6302 2RS P64
33

26800
Inner bearing cover
34

26800
Rotor
35

26800
Bushing
37

26800
Flat washer
38

26800
Support washer
39

26800
Conical spring washer
40
6 230723

Nut M12-8 BDS 744-83/fos.
41

26800
Buffer sleeve
42

26800
Rear shield with rectifiers
43

26800
Plate for the screw head
44

26800
Holder with rectifiers with normal polarity.
45

26800
Rear shield with rectifiers with reverse polarity.
46

26800
Rear shield
47

Washer 2-4L BDS 833-82/Zn
48

26800
Front shield
49

VA-20TU
Rectifier with normal polarity.
50

26800
Holder with rectifiers with normal polarity.
59
6 240748

V-belt AU13x1225LP BDS 5148-85
59
6 240754

V-belt AU13x1270LP BDS 5148-85
60
6 230744

Bolt A1 M12x120-8.8 BDS 1230-85/fos.
61
6 230723

Nut M12-8 BDS 744-83/fos.
62
6 238864

Washer AM12 BDS 206-78/Zn
63
6 205056

Washer 2-12L BDS 833-82/Zn
64
6 441496 4566693593
В38122121
Bracket
64
6 479681 4566693773
В37586401
Bracket
65
6 224463

Bolt A1 M10x30-8.8 BDS 1232-86/fos.
66
6 205041

Washer 2-10L BDS 833-82/Zn
67
6 204844

Washer AM10 BDS 206-78/Zn
68
8 441504 4566693781
В36541361
Tightening
68
8 480783 4566693782
В36541265
Belting
70
6 403314 4566692693
В2872587
Relay-regulator RR 380
71
6 403026 4566692616
В2846109
Switch starter PSD
