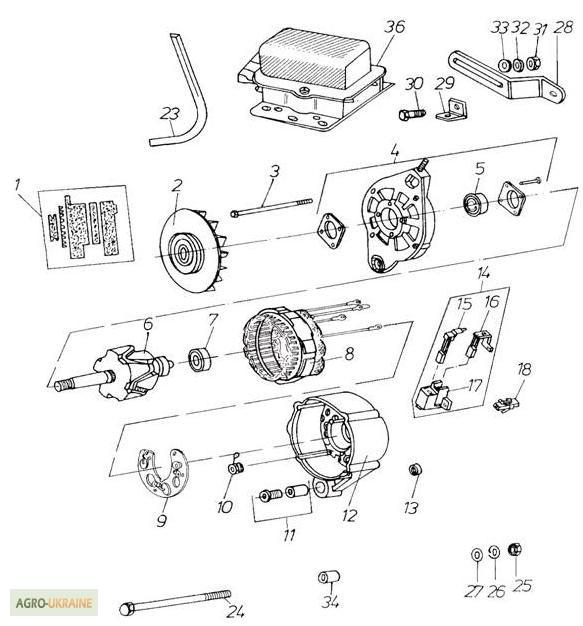

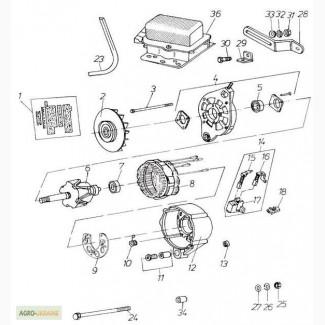

Generator G221 for Engine D 3900k, Kharkiv region.

Item no.
Catalog No.
positional number
Name
1
B2871593
8 455552
Generator G221
2
B31157182
7 455567
Belt pulley
3
66-1110

Bolt M6x96 ON 66871-75
4
26 800 10 00

Front shield (assembled)
5
6-302-1

Bearing 6302-2RS
6
25-101

Rotor
7
6-201-1

Bearing 6201-2
8
24-101

Stator
9
21-101

Diode holder
10
D104-20

Diode
11
26 800 01 00

Sleeve (assembled)
12
31-101

Rear shield
13
61-1200

Bushing
14

Brush holder (assembled)
15
26-101

Brush(//tractor-service.com)
16
26-0201

Brush
17
28-1100

Brush holder (assembled)
18
53-1100

Connecting pad
23

6 242583
V-belt AVX 13x1300 BARUMTECH
24
B32166041
6 468006
Bolt
25

6 237356
Nut M12-8 BDS 744-83/Zn
26

6 205056
Washer 2-12L BDS 833-82/Zn
27

6 238864
Washer AM12 BDS 206-78/Zn
28
B37361182
6 431394
Belting
29
B38165151
6 432606
Prushina
30

6 205891
Bolt A1 M8x25-8.8 BDS 1232-86/Zn
31

6 235781
Nut M8-8 BDS 744-83/Zn
32

6 205035
Washer 2-8L BDS 833-82/Zn
33
C33114051
6 447392
Washer
34
B33143021
6 472105
Bushing
36
B2872587
6 403314
Relay regulator RR380
